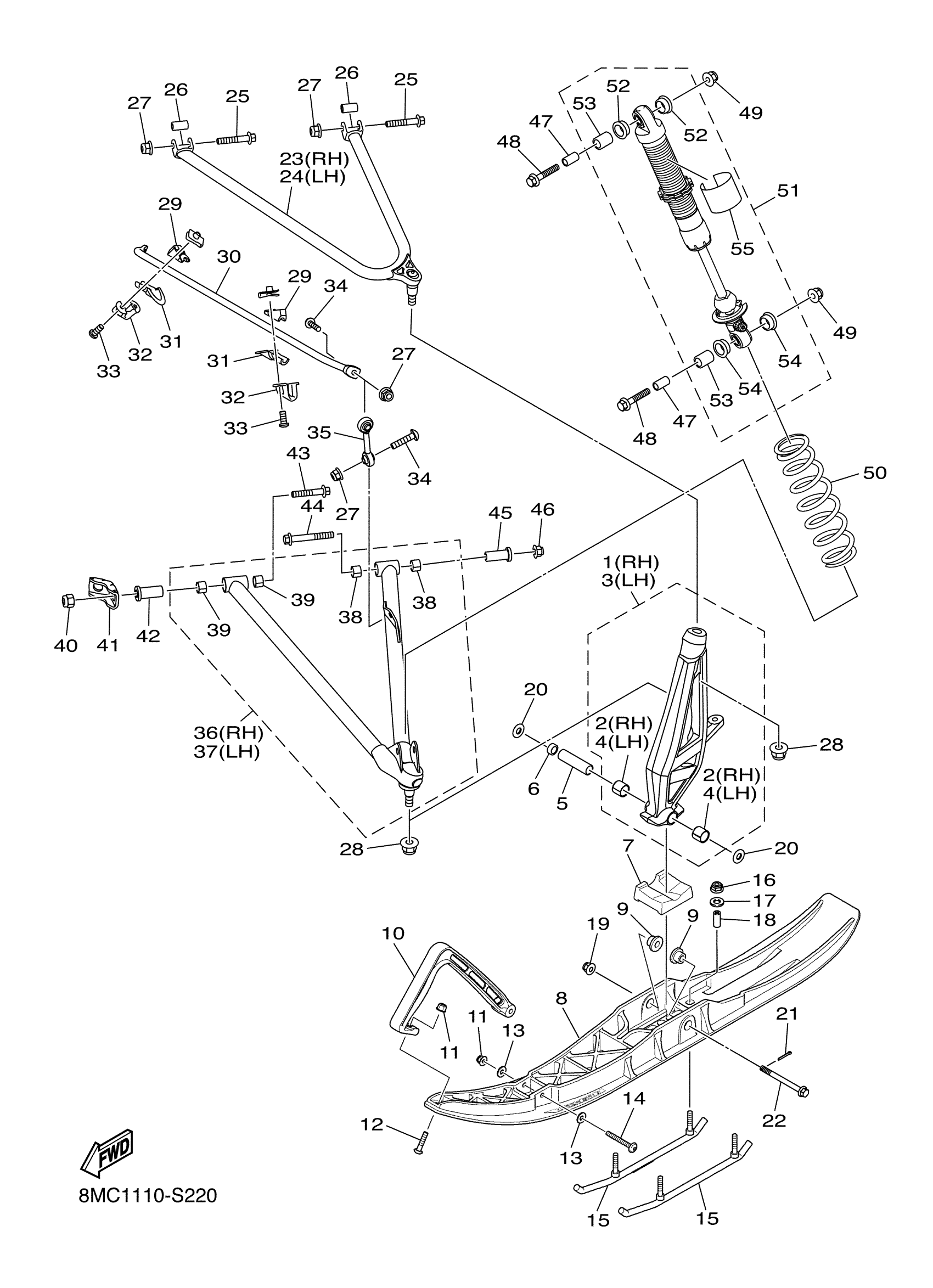

Yamaha SW10XL37HR (SIDEWINDER X TX 137 LE) 8MC1 2017 SKI Diagram
#
1
KNUCKLE, STEERING
8JP-F3521-30-00
$236.99
2
BUSH, 12DU12
8JP-RA806-00-00
$10.49
3
KNUCKLE, STEERING
8JP-F3511-30-00
Unavailable
4
BUSH, 12DU12
8JP-RA806-00-00
$10.49
5
COLLAR, 75
8JP-RA731-00-00
$31.99
6
COLLAR, 6
8JP-RA718-00-00
$3.40
7
STOPPER 1
8NS-F3743-00-00
$22.99
8
SKI,SRV TUNER GEN III BLACK
SMA-8HLDS-00-BK
Unavailable
9
. COLLAR 1
8EX-F3754-00-00
Unavailable
10
SKI HANDLE,TUNER GEN III RD
SMA-8LH89-00-RD
Unavailable
11
NUT
8LH-F3778-00-00
Unavailable
12
BOLT, REINFORCEMENT HEAD 1
8LH-F3755-00-00
Unavailable
13
WASHER 1
8LH-F3737-00-00
Unavailable
14
BOLT, REINFORCEMENT HEAD 2
8LH-F3756-00-00
Unavailable
15
RUNNER 1
8KM-F3731-00-00
Unavailable
16
NUT, NYLON
95717-08300-00
Unavailable
17
WASHER, PLATE
90201-08053-00
Unavailable
18
BUSH, SKI 1
8KN-F3751-00-00
Unavailable
19
NUT, S/L FLANGE
95602-10200-00
Unavailable
20
WASHER, PLATE
90201-10043-00
Unavailable
21
PIN, COTTER
91490-20025-00
Unavailable
22
BOLT, FLANGE
90105-10070-00
Unavailable
23
ARM FRONT UPPER RH
8JP-F355A-40-00
Unavailable
24
ARM, FRONT UPPER
8JP-F354A-40-00
Unavailable
25
BOLT, FLG. M8X1.25
8JP-RA190-00-00
Unavailable
26
COLLAR, 8
8JP-RA720-00-00
Unavailable
27
NUT,HEX FLG-NYL LOCK M8X1.25
8JM-RA301-00-00
Unavailable
28
NUT, FLG. LOCKING
8JP-RA362-00-00
Unavailable
29
HOLDER 2
8JP-F3867-00-00
Unavailable
30
BAR, STABILIZER FR
8JP-F386E-00-00
Unavailable
31
BUSH, STABILIZER F
8JP-F386G-00-00
Unavailable
32
HOLDER, STABILIZER
8JP-F386C-00-00
Unavailable
33
SCREW, 1
8JP-RA235-00-00
Unavailable
34
SCREW, M8X1.25X35
8JP-RA273-00-00
Unavailable
35
LINK, STABILIZER F
8JP-F386F-00-00
Unavailable
36
ARM,FR. LWR. RH.
8JP-F358A-40-00
Unavailable
37
ARM,FR. LWR. LH.
8JP-F357A-40-00
Unavailable
38
BUSH, 10DU10
8JP-RA807-00-00
Unavailable
39
BUSH, 1815DU
8JP-RA811-00-00
Unavailable
40
NUT, FLG. LOCKING
8JP-RA361-00-00
Unavailable
41
ARM, 1
8JP-F3543-00-00
Unavailable
42
COLLAR, 9
8JP-RA721-00-00
Unavailable
43
BOLT, FLG. M12X1.2
8JP-RA1A7-00-00
Unavailable
44
BOLT, FLG. M10X1.2
8JP-RA1A4-00-00
Unavailable
45
COLLAR, 7
8JP-RA719-00-00
Unavailable
46
NUT, FLG. LOCKING
8JP-RA360-00-00
Unavailable
47
COLLAR, 12
8JP-RA724-00-00
Unavailable
48
BOLT, FLG. M10X1.2
8JP-RA1A3-00-00
Unavailable
49
NUT, FLG. LOCKING
8JP-RA360-00-00
Unavailable
50
SPRING
8JW-F3351-00-00
Unavailable
51
DAMPER ASSY
8JW-F330E-30-00
Unavailable
52
BUSH, 8
8JP-RA817-00-00
Unavailable
53
COLLAR, 15
8JP-RA732-00-00
Unavailable
54
BUSH, 8
8JP-RA817-00-00
Unavailable
55
LABEL 6
8JW-F151J-00-00
Unavailable
