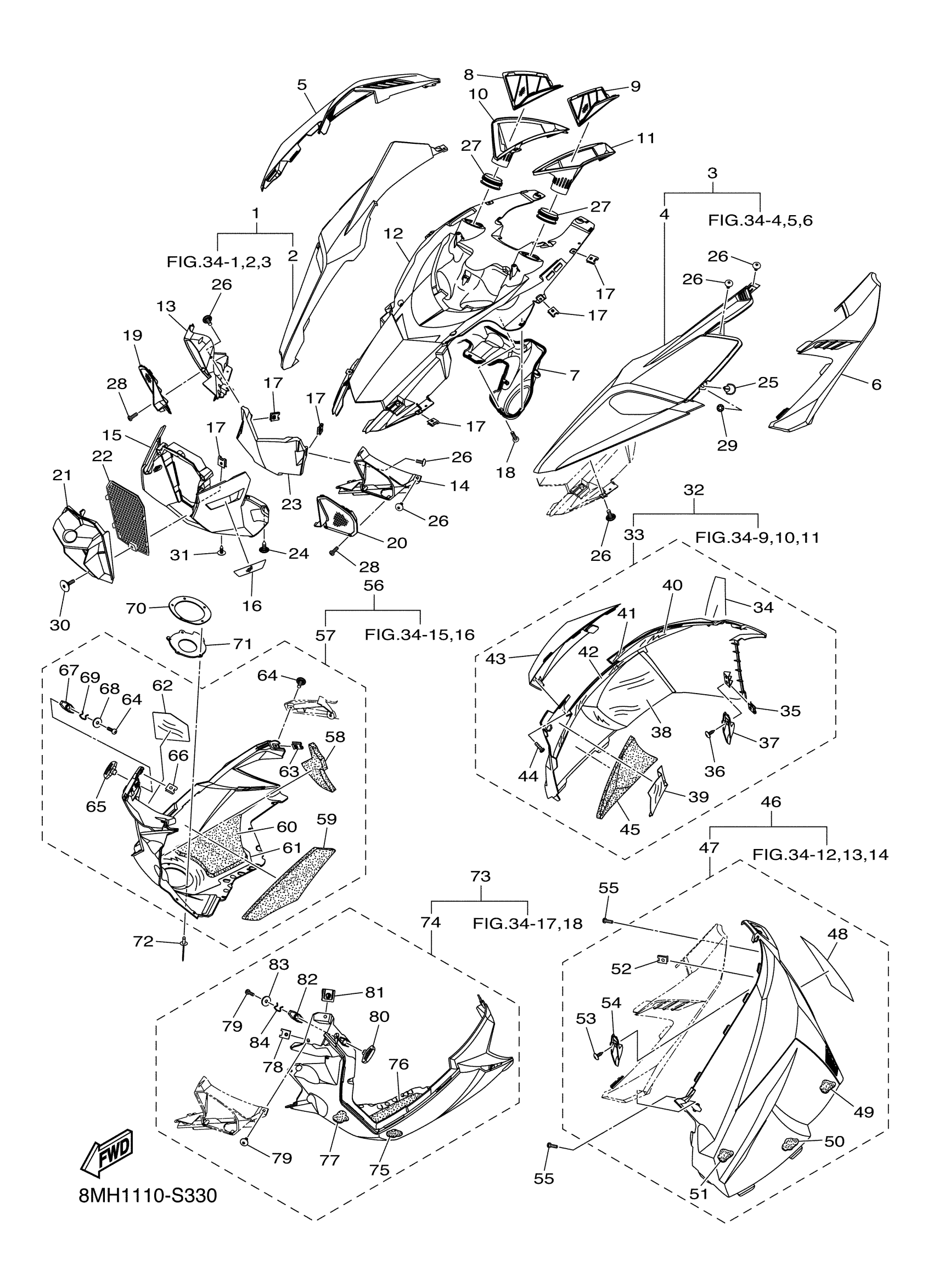

Yamaha SW10SD37HB (SIDEWINDER S TX 137 DX) 8MH1 2017 SHROUD Diagram
#
1
HOOD 2
8KC-K7122-10-00
Unavailable
2
HOOD 2
8KC-K7122-10-00
Unavailable
3
HOOD ASSY 3
8KC-F197A-20-00
Unavailable
4
HOOD 1
8KC-K7121-10-00
Unavailable
5
SHROUD
8MG-K7111-00-00
Unavailable
6
SHROUD 2
8MG-K7112-00-00
$84.99
7
INTAKE, LOWER
8KC-K715B-00-00
Unavailable
8
SCREEN, INTAKE DUC
8KC-K715E-00-00
Unavailable
9
SCREEN, INTAKE DUC
8KC-K715D-00-00
Unavailable
10
DUCT, INTAKE 2
8KC-K715G-00-00
$16.99
11
DUCT, INTAKE 1
8KC-K715F-00-00
$21.99
12
INTAKE, UPPER
8KC-K715C-00-00
$151.99
13
VENT, FRONT 2
8KC-K715J-00-00
Unavailable
14
VENT, FRONT 1
8KC-K715H-00-00
Unavailable
15
DUCT, INTAKE FRON
8KC-K715K-00-00
Unavailable
16
TAPE,REFLECTOR
8MY-H5133-00-00
Unavailable
17
NUT, CLIP 10
8JP-RA352-00-00
Unavailable
18
SCREW, 13
8JP-RA2A2-00-00
Unavailable
19
BEZEL, VENT 2
8KC-K715M-00-00
Unavailable
20
BEZEL, VENT 1
8KC-K715L-00-00
Unavailable
21
GRILLE
8KC-K715N-00-00
Unavailable
22
GUIDE 1
8KC-K7123-00-00
Unavailable
23
SHUT, INTAKE
8KC-K715P-00-00
Unavailable
24
SCREW, 10-12X3/4
8KC-RA290-00-00
Unavailable
25
PIN, 2
8JP-RAK02-00-00
Unavailable
26
SCREW, TAPPING 1/4
8JP-RA202-00-00
Unavailable
27
SEAL, INTAKE
8KC-K715R-00-00
Unavailable
28
SCREW, 4
8KC-RA238-00-00
Unavailable
29
NUT, 1
8JP-RA345-00-00
Unavailable
30
SCREW, 5
8KC-RA239-00-00
Unavailable
31
SCREW, TAPPING 10-
8JP-RA203-00-00
Unavailable
32
SHELL SIDE PANEL A
8KC-K8140-40-00
Unavailable
33
SHELL SIDE PANEL A
8KC-K8140-40-00
Unavailable
34
LABEL, WARNING 1
8KC-K7761-70-00
Unavailable
35
NUT, CLIP 10
8JP-RA352-00-00
Unavailable
36
SCREW, 10-12X3/4
8KC-RA290-00-00
Unavailable
37
HOOK 2
8KC-K715T-00-00
Unavailable
38
PROTECTOR 2
8KC-K7552-00-00
Unavailable
39
PROTECTOR 1
8KC-K7551-01-00
Unavailable
40
PROTECTOR 3
8KC-K7553-01-00
Unavailable
41
PROTECTOR 4
8KC-K7554-00-00
Unavailable
42
PROTECTOR 5
8KC-K7555-00-00
Unavailable
43
VENT, SIDE 1
8KC-K715U-00-00
Unavailable
44
SCREW, 4
8KC-RA238-00-00
Unavailable
45
DAMPER, NOISE 18
8KC-K7278-00-00
Unavailable
46
SHELL SIDE PANEL A
8KC-K8130-40-00
Unavailable
47
SHELL SIDE PANEL A
8KC-K8130-40-00
Unavailable
48
LABEL, WARNING 1
8NJ-K7761-S0-00
Unavailable
49
DAMPER, NOISE 19
8KC-K7279-00-00
Unavailable
50
DAMPER, NOISE 17
8KC-K7277-00-00
Unavailable
51
DAMPER, NOISE 17
8KC-K7277-10-00
Unavailable
52
NUT, CLIP 10
8JP-RA352-00-00
Unavailable
53
SCREW, 10-12X3/4
8KC-RA290-00-00
Unavailable
54
HOOK 1
8KC-K715S-00-00
Unavailable
55
SCREW, 4
8KC-RA238-00-00
Unavailable
56
HOOD 2
8MH-F1983-00-00
Unavailable
57
SHELL SIDE PANEL A
8KC-K8140-50-00
Unavailable
58
DAMPER, NOISE 16
8KC-K7276-00-00
Unavailable
59
DAMPER, NOISE 15
8KC-K7275-00-00
Unavailable
60
DAMPER, NOISE 14
8KC-K7274-00-00
Unavailable
61
PROTECTOR 6
8KC-K7556-01-00
Unavailable
62
PROTECTOR 7
8KC-K7557-10-00
Unavailable
63
NUT, CLIP 10
8JP-RA352-00-00
Unavailable
64
SCREW, 4
8KC-RA238-00-00
Unavailable
65
KNOB
8KC-K7324-00-00
Unavailable
66
NUT, CLIP 1/4
8JP-RA350-00-00
Unavailable
67
PLATE, BACK UP 1
8KC-K7153-00-00
Unavailable
68
WASHER
8JP-RA429-00-00
Unavailable
69
CLIP, 6
8JP-RAC15-00-00
Unavailable
70
PLATE 1
8KC-K8181-00-00
Unavailable
71
SEAL, EXT. 1
8KC-G1138-00-00
Unavailable
72
RIVET, 14
8JP-RA523-00-00
Unavailable
73
HOOD 1
8MH-F1982-00-00
Unavailable
74
SHELL SIDE PANEL A
8KC-K8130-50-00
Unavailable
75
DAMPER, NOISE 11
8KC-K7271-00-00
Unavailable
76
DAMPER, NOISE 12
8KC-K7272-00-00
Unavailable
77
DAMPER, NOISE 13
8KC-K7273-00-00
Unavailable
78
NUT, CLIP 10
8JP-RA352-00-00
Unavailable
79
SCREW, 4
8KC-RA238-00-00
Unavailable
80
KNOB
8KC-K7324-00-00
Unavailable
81
NUT, CLIP 1/4
8JP-RA350-00-00
Unavailable
82
PLATE, BACK UP 1
8KC-K7153-00-00
Unavailable
83
WASHER
8JP-RA429-00-00
Unavailable
84
CLIP, 6
8JP-RAC15-00-00
Unavailable
