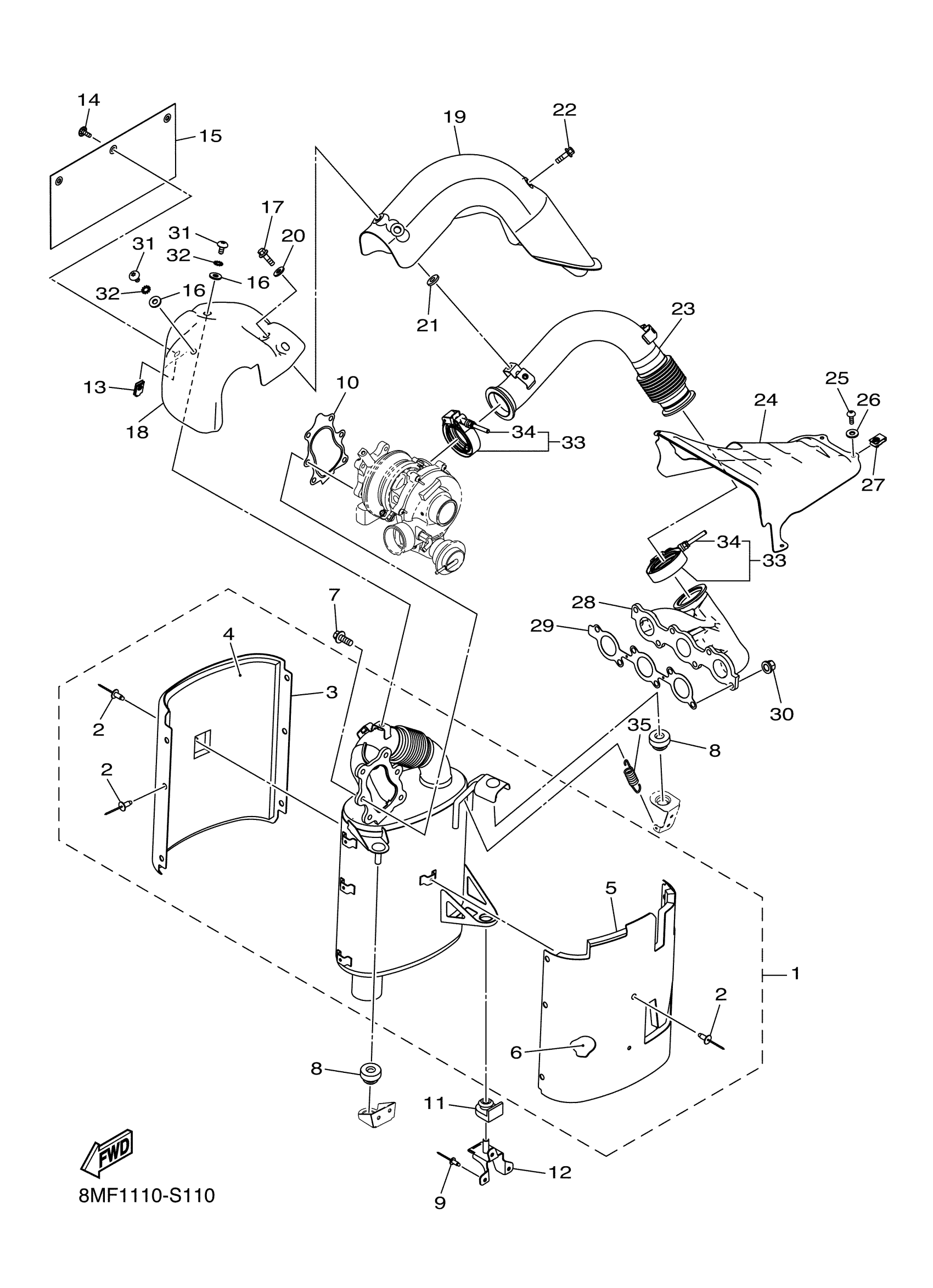

Yamaha SW10LSHO (SIDEWINDER L TX SE) 8MA10 2017 EXHAUST Diagram

#

Description
Price

1

SILENCER ASSY

8KC-E4750-01-00

$597.99

2

RIVET, 1

8KC-RA510-00-00

$1.11

3

PROTECTOR, MUFFLER

8KC-E4728-00-00

Unavailable

4

MAT 2

8KC-E4736-00-00

Unavailable

5

PROTECTOR, MUFFLER

8KC-E4718-00-00

$126.99

6

MAT 1

8KC-E4733-00-00

$15.99

7

BOLT, FLANGE 2

8KC-RA1B6-00-00

$13.99

8

GROMMET

8JP-E5357-00-00

$15.99

9

RIVET, 11

8JP-RA520-10-00

$0.43

10

GASKET, EXHAUST PI

8KC-E4623-00-00

$28.99

11

GROMMET

8JP-E5375-00-00

$9.49

12

BRACKET

8JP-E4744-00-00

Unavailable

13

NUT, CLIP

8JP-RA349-00-00

$1.16

14

SCREW, TAPPING 1/4

8JP-RA202-00-00

$1.86

15

SHIELD, HEAT

8KC-F3892-00-00

Unavailable

16

WASHER 1

8KC-K7525-00-00

Unavailable

17

BOLT, FLANGE

95817-06016-00

Unavailable

18

EXHAUST COVER ASS'

8KC-E4637-00-00

Unavailable

19

EXHAUST COVER SET

8KJ-W1467-00-00

Unavailable

20

WASHER, PLATE

90201-06078-00

Unavailable

21

WASHER, PLATE (8K2)

90201-06778-00

Unavailable

22

BOLT, FLANGE

95817-06012-00

Unavailable

23

EXHAUST PIPE ASSY

8KC-E4610-00-00

Unavailable

24

COVER, EXHAUST

8KC-E4627-00-00

Unavailable

25

SCREW, 11

8JP-RA2A0-00-00

Unavailable

26

WASHER, 1/4X0.625X

8JP-RA441-00-00

Unavailable

27

NUT, CLIP M5

8JP-RA353-00-00

Unavailable

28

MANIFOLD, EXT. 1

8KJ-41131-00-00

Unavailable

29

GASKET, EXHAUST PIPE

8KJ-14613-00-00

Unavailable

30

NUT

90179-09004-00

Unavailable

31

BOLT, BUTTON HEAD

8KC-RA1C0-00-00

Unavailable

32

WASHER,LOCK-1/4 EXT TOOTH TYP

8JM-RA407-00-00

Unavailable

33

BAND, MUFFLER

8KC-E4715-00-00

Unavailable

34

BOLT SET

8KC-E22C0-00-00

Unavailable

35

SPRING, 3

8JP-RAD14-00-00

Unavailable
