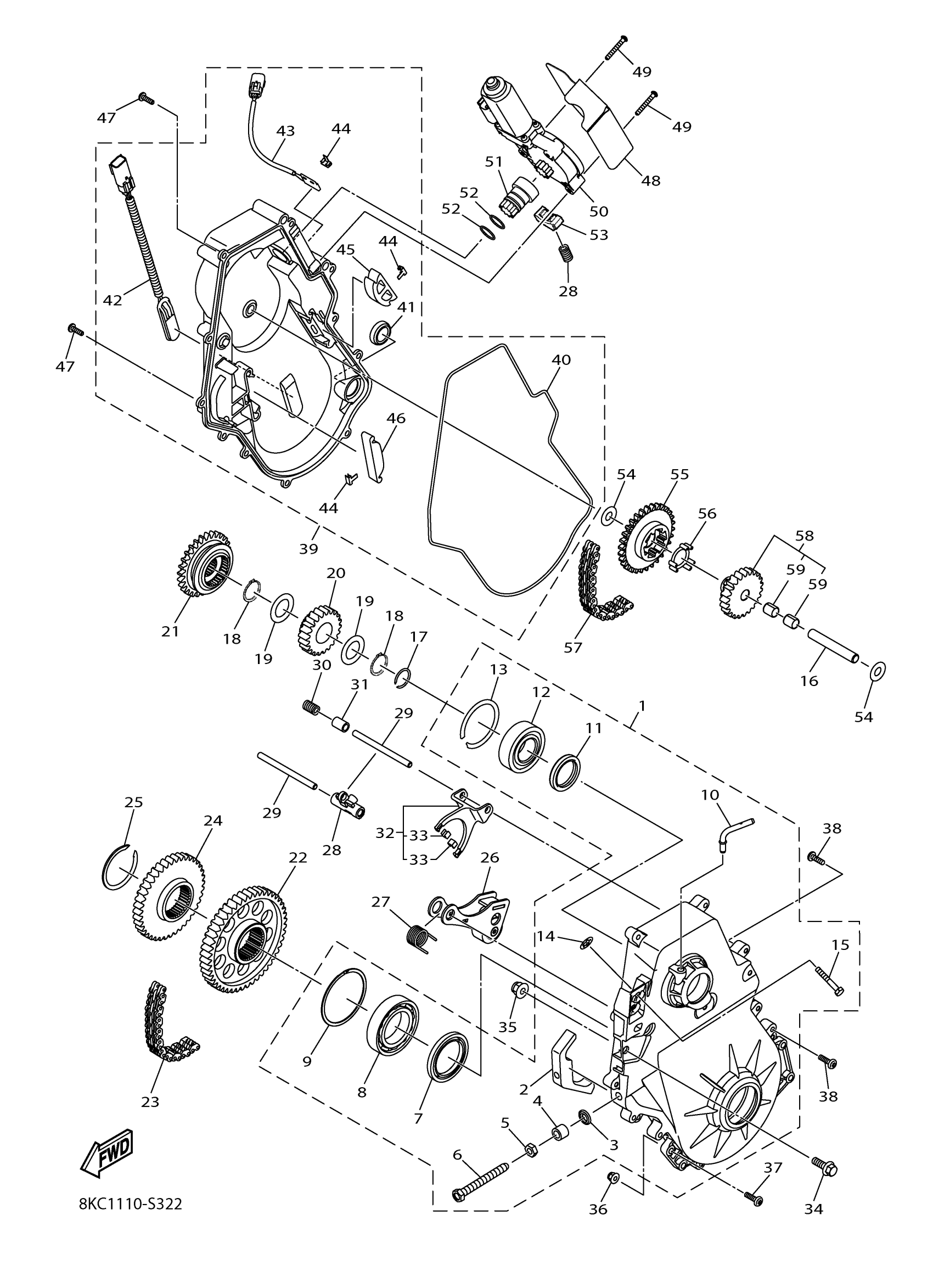

Yamaha SW10LDHL (SIDEWINDER L TX DX) 8MB10 2017 TRACK DRIVE 2 Diagram
#
1
CHAIN CASE ASSY.
8JP-G754A-20-00
$364.99
2
PLATE, RATCHET
8JP-G7516-00-00
$94.99
3
WASHER SEAL 256111730200
90210-10004-00
$4.77
4
COLLAR, 4
8JP-RA716-00-00
$12.49
5
NUT, HEX. 3/8-16
8JP-RA366-00-00
$0.54
6
BOLT, HEX. 3/8-16X
8JP-RA1A8-00-00
$36.99
7
SEAL, OIL 50X65X8
8JP-RAE03-00-00
$35.99
8
BEARING, 6009
8JP-RAG05-00-00
$16.99
9
CIRCLIP, EH-75
8JP-RAH05-00-00
$4.35
10
. BREATHER
8JP-G7586-00-00
Unavailable
11
SEAL, OIL 35X47X7
8JP-RAE01-00-00
Unavailable
12
BEARING, 6206
8JP-RAG07-10-00
$16.99
13
CIRCLIP, FH-062
8JP-RAH06-00-00
$4.46
14
NUT, 1/4
8JP-RA347-00-00
$1.43
15
BOLT, HEX. M6X1.0X
8JP-RA1A9-00-00
$1.01
16
SHAFT, 1
8JP-E761A-00-00
Unavailable
17
CIRCLIP, 5
8JP-RAC04-00-00
Unavailable
18
CIRCLIP, 5
8JP-RAH11-00-00
Unavailable
19
WASHER, 1.00X1.562
8JP-RA440-00-00
Unavailable
20
DRIVE SPROCKET ASS
8KC-E769A-11-00
Unavailable
21
GEAR, REVERSE PINI
8JP-E7143-00-00
Unavailable
22
SPROCKET, CHAIN DRIVEN, 41T
8JP-G7587-10-00
Unavailable
23
CHAIN, BWA (86L)
8KC-RAM01-20-00
Unavailable
24
SPROCKET, CHAIN DR
8JP-G7548-00-00
Unavailable
25
CIRCLIP, 4
8JP-RAC03-00-00
Unavailable
26
HOLDER
8JP-G7613-02-00
Unavailable
27
SPRING, 1
8JP-RAD12-00-00
Unavailable
28
ARM, SHIFT
8JP-E8112-00-00
Unavailable
29
SHAFT, SHIFT
8JP-E8125-00-00
Unavailable
30
SPRING, 2
8JP-RAD13-00-00
Unavailable
31
BUSH, 2
8JP-RA803-00-00
Unavailable
32
FORK, SHIFT 1
8JP-E8501-00-00
Unavailable
33
SHOE
8JP-G7614-00-00
Unavailable
34
BOLT, FLG. M8X1.25
8JP-RA185-00-00
Unavailable
35
NUT,HEX FLG-NYL LOCK M8X1.25
8JM-RA301-00-00
Unavailable
36
NUT,FLG. M6-1.0
8JM-RA322-00-00
Unavailable
37
SCREW, M6X1.0X30
8JP-RA266-00-00
Unavailable
38
SCREW, TAPPING M6X
8JP-RA283-00-00
Unavailable
39
HOUSING CAP ASSY
8JP-G754B-10-00
Unavailable
40
RING,HOUSING
8JP-G7558-02-00
Unavailable
41
GAUGE, LEVEL
8JP-E5361-00-00
Unavailable
42
SENSOR, SPEED
8JP-H5985-00-00
Unavailable
43
SENSOR, GEAR POSIT
8JP-H5899-00-00
Unavailable
44
CLIP, 3
8JP-RAC12-00-00
Unavailable
45
GUIDE, CHAIN 2
8JP-E7468-00-00
Unavailable
46
GUIDE, CHAIN 1
8JP-E7467-00-00
Unavailable
47
SCREW, M6X1.0X25
8JP-RA262-00-00
Unavailable
48
COVER 1
8KC-G613F-00-00
Unavailable
49
SCREW, M5X0.8X35
8JP-RA247-00-00
Unavailable
50
SERVO MOTOR COMP
8JP-G616A-20-00
Unavailable
51
ADAPTER
8JP-E7848-10-00
Unavailable
52
O-RING, 2
8JP-RAF04-00-00
Unavailable
53
BRACKET
8JP-E8128-00-00
Unavailable
54
WASHER, 12X26X1
8JP-RA444-00-00
Unavailable
55
SPROCKET, DRIVE
8JP-E7692-00-00
Unavailable
56
DAMPER, RUBBER
8JP-E8615-00-00
Unavailable
57
CHAIN, REX 11
8JP-RAM02-00-00
Unavailable
58
REVERSE WHEEL ASSY
8JP-E724A-00-00
Unavailable
59
BUSH, 12
8JP-RA809-00-00
Unavailable
