Description

Price

1

HANDLEBAR

87A-23811-00-00

Unavailable

2

COLUMN, STEERING 2

85G-23813-00-00

Unavailable

3

HOLDER, HANDLE UPR

85G-23814-00-00

Unavailable

4

BOLT

97021-08065-00

Unavailable

5

YBS67-8 WASHER, SPRING

92990-08100-00

$5.60

6

COVER, STEERING

8F3-23818-00-00

Unavailable

7

STAY, HEADLIGHT

85G-23174-00-00

Unavailable

8

BRACKET, STEERING LOWER

84M-23868-00-00

Unavailable

9

BEARING, STEERING

8F3-23812-00-00

Unavailable

10

NUT, NYLON

95717-08300-00

$2.70

11

BOLT, HEXAGON

97017-08016-00

$8.49

12

WASHER, LOCK 1

8AC-23894-01-00

$4.78

13

ROD, STEERING RELAY

85G-23821-00-00

Unavailable

14

JOINT, UNIVERSAL 1

86X-23841-00-00

$59.99

15

JOINT, UNIVERSAL 2

86X-23845-00-00

$61.99

16

NUT (682)

95380-10700-00

Unavailable

17

NUT, HEXAGON (8A5)

90170-10186-00

Unavailable

18

PIN, COTTER

91490-25020-00

Unavailable

19

NUT, SELF-LOCKING (8J8)

90185-10085-00

Unavailable

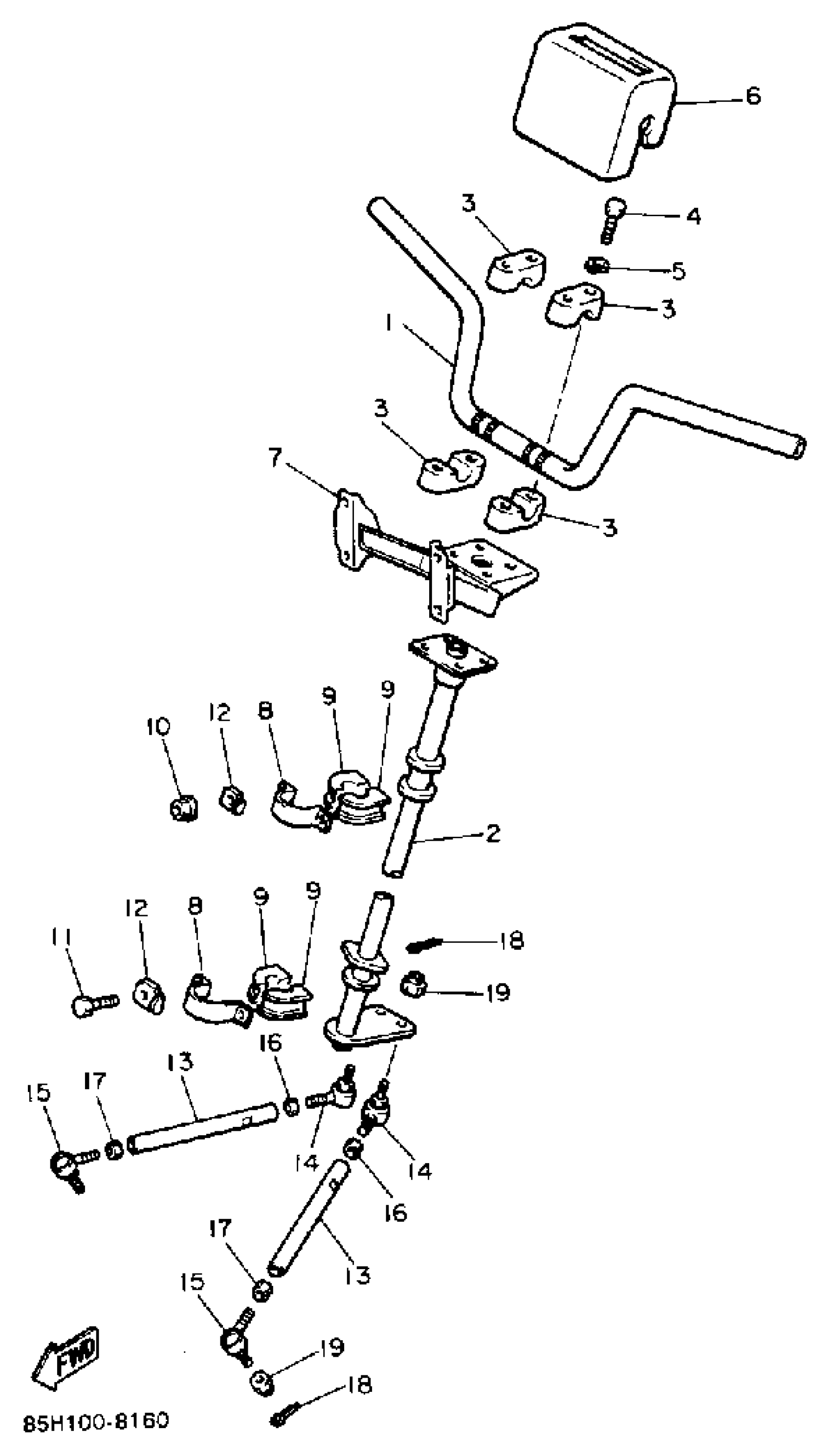

Yamaha SV80P (SNOSCOOT) 1990 STEERING Diagram

HANDLEBAR

COLUMN, STEERING 2

HOLDER, HANDLE UPR

BOLT

YBS67-8 WASHER, SPRING

COVER, STEERING

STAY, HEADLIGHT

BRACKET, STEERING LOWER

BEARING, STEERING

NUT, NYLON

BOLT, HEXAGON

WASHER, LOCK 1

ROD, STEERING RELAY

JOINT, UNIVERSAL 1

JOINT, UNIVERSAL 2

NUT (682)

NUT, HEXAGON (8A5)

PIN, COTTER

NUT, SELF-LOCKING (8J8)
