1990 Yamaha Snoscoot (SV80P) Seat Diagram

← All diagrams

Find the part on the Seat diagram for your 1990 Yamaha Snoscoot (SV80P), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

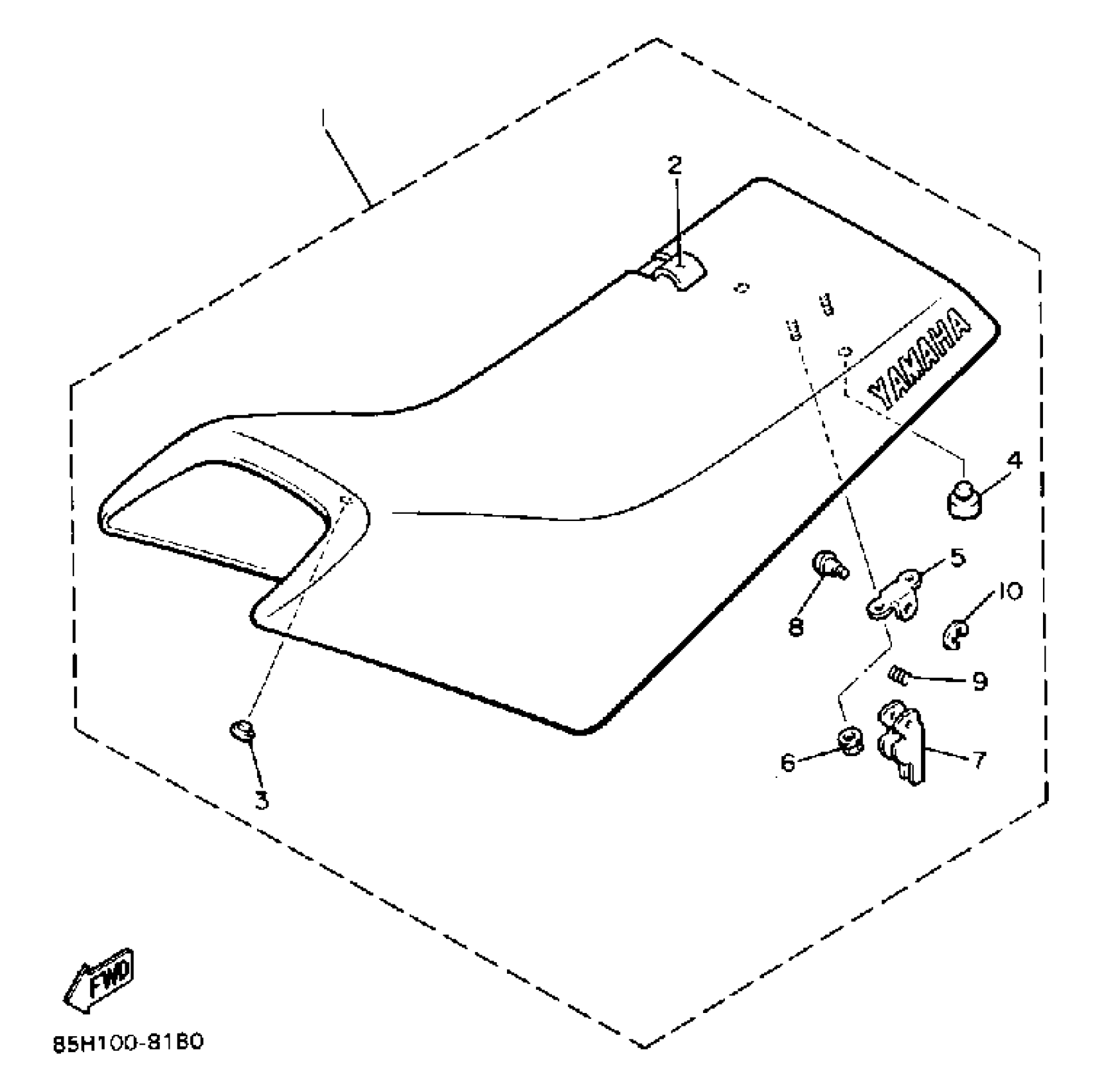

1990 Yamaha Snoscoot (SV80P) Seat Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SINGLE SEAT ASSEMBLY

85G-24710-10-00

1
Out of stock

1

SINGLE SEAT ASSEMBLY

85G-24710-20-00

1
Out of stock

2

COVER,DOUBLE SEAT

4EM-24731-30-00

1
Out of stock

2

. COVER, DOUBLE SEAT

2HX-24731-20-00

1
Out of stock

3

DAMPER, SEAT

3L7-24724-00-00

1

$2.23

In stock

4

STOPPER, MAIN STAND

371-27114-00-00

1

$5.80

In stock

5

BRACKET, SEAT LEVER

4K0-24775-00-00

—

$17.99

In stock

6

NUT, FLANGE(7NB)

95780-06500-00

1

$1.91

In stock

7

LEVER, SEAT

29U-24776-00-00

—

$13.14

In stock

8

PIN

4K0-24774-01-00

—

$15.12

In stock

9

SPRING, TORSION (24W)

90508-20454-00

—
Out of stock

10

CIRCLIP (EU0)

99080-04600-00

1

$1.67

In stock
