1990 Yamaha Snoscoot (SV80P) Bumper Diagram

← All diagrams

Find the part on the Bumper diagram for your 1990 Yamaha Snoscoot (SV80P), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

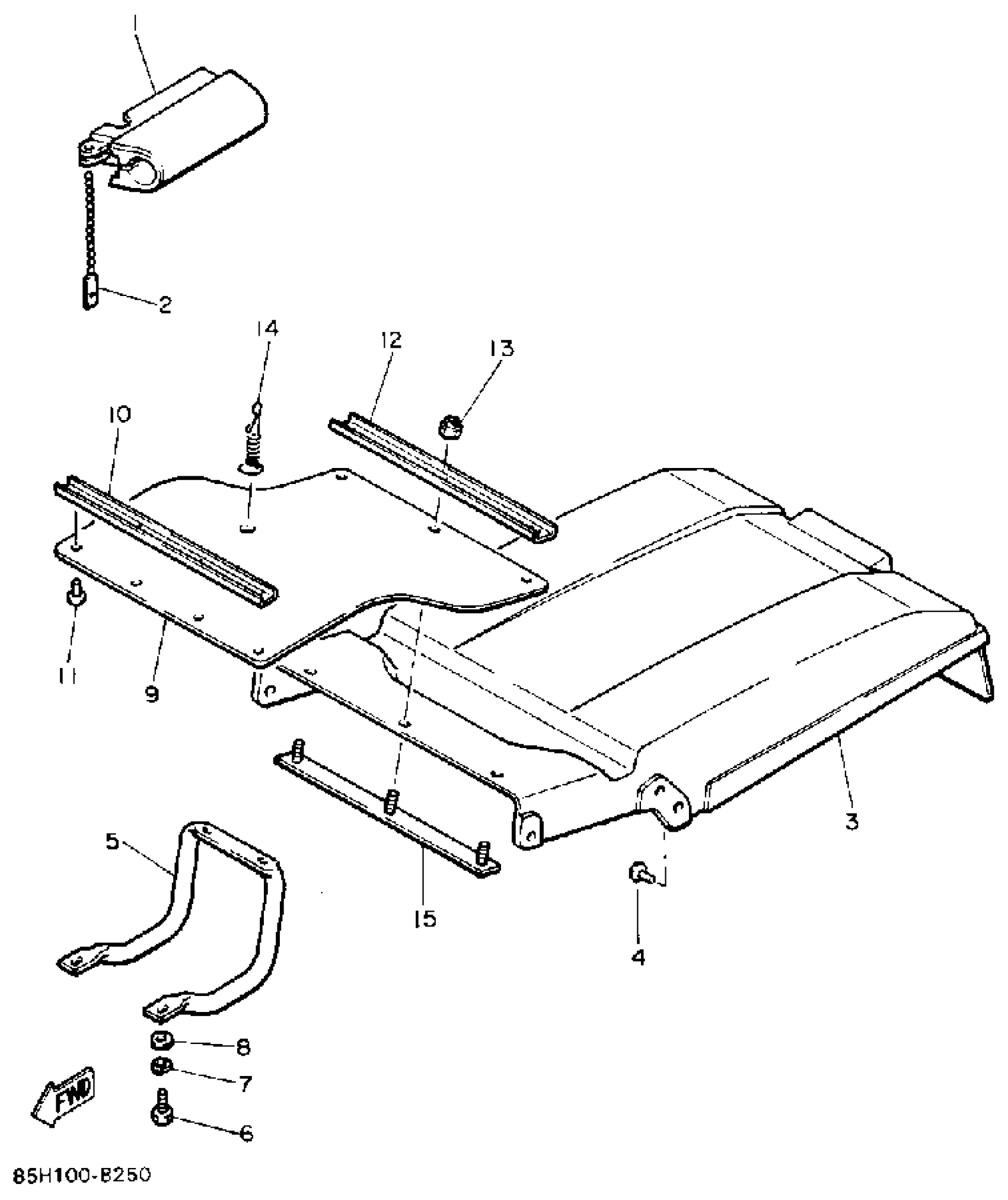

1990 Yamaha Snoscoot (SV80P) Bumper Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

COVER, 3

85G-77563-00-00

1
Out of stock

2

CLAMP

90464-20031-00

1

$2.62

In stock

3

COVER, 4

85G-77564-00-00

1
Out of stock

4

RIVET, BLIND (8L0)

90267-48059-00

1

$2.46

In stock

5

PROTECTOR 1

85G-77551-00-00

1
Out of stock

6

BOLT, HEXAGON

97013-08020-00

1

$1.54

In stock

7

YBS67-8 WASHER, SPRING

92990-08100-00

1

$4.52

In stock

8

.. WASHER, PLATE

92990-08600-00

1

$2.36

In stock

9

FLAP

85G-77595-00-00

1
Out of stock

10

PLATE, FLAP 1

85G-77593-00-00

1
Out of stock

11

RIVET, BLIND (8K2)

90267-48079-00

1
Out of stock

12

PLATE, FLAP 2

85G-77594-00-00

1
Out of stock

13

NUT, NYLON

95707-06300-00

1

$3.20

In stock

14

SPRING 1

85G-77586-00-00

1
Out of stock

15

STOPPER, FLAP

85G-77596-00-00

1
Out of stock
