Description

Price

1

CRANKSHAFT ASSEMBLY

85G-11400-00-00

Unavailable

2

. CRANK 1

85G-11412-00-00

Unavailable

3

PIN, CRANK 1

257-11681-10-00

$29.99

4

BEARING, CYLINDRICAL(3TU)

93310-418C4-00

$48.99

5

ROD, CONNECTING

3R1-11651-01-00

$125.99

6

. CRANK 2

85G-11422-00-00

Unavailable

7

KEY WOODRUFF 146115450000

90280-03017-00

$7.49

8

WASHER, PLATE(663)

92990-12600-00

$8.49

9

YBS67-12 WASHER,SPRING

92990-12100-00

$8.49

10

NUT(3DM)

95304-12600-00

$8.49

11

BEARING(1GJ)

93306-20458-00

$43.99

12

OIL SEAL(85G)

93102-26398-00

$13.99

13

OIL SEAL, SD-TYPE

93102-20397-00

Unavailable

14

COLLAR

90387-170G9-00

Unavailable

15

PISTON STD

3M8-11631-01-96

Unavailable

15

PISTON 2 O/S 0.50

3M8-11636-01-00

Unavailable

16

PIN, PISTON

527-11633-00-00

Unavailable

17

PISTON RING SET (STD)

3M8-11610-03-00

Unavailable

17

PISTON RINGSET 2ND

3M8-11610-23-00

Unavailable

18

CIRCLIP 132116340000

93450-13022-00

Unavailable

19

BRG,CYL-CAL ROLLER 5G TM

93310-11268-00

Unavailable

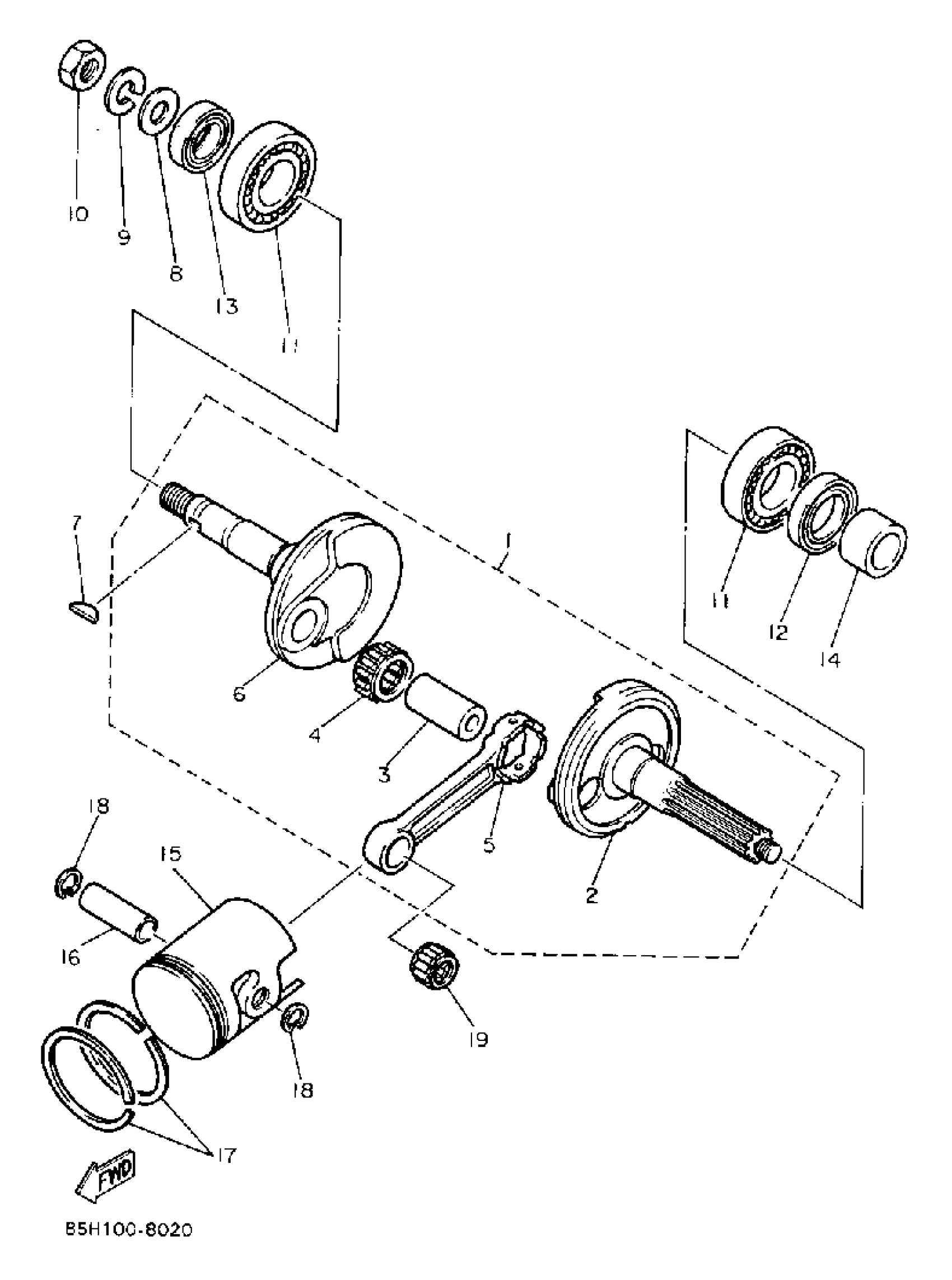

Yamaha SV80P (SNOSCOOT) 1990 CRANKSHAFT-PISTON Diagram

CRANKSHAFT ASSEMBLY

. CRANK 1

PIN, CRANK 1

BEARING, CYLINDRICAL(3TU)

ROD, CONNECTING

. CRANK 2

KEY WOODRUFF 146115450000

WASHER, PLATE(663)

YBS67-12 WASHER,SPRING

NUT(3DM)

BEARING(1GJ)

OIL SEAL(85G)

OIL SEAL, SD-TYPE

COLLAR

PISTON STD

PISTON 2 O/S 0.50

PIN, PISTON

PISTON RING SET (STD)

PISTON RINGSET 2ND

CIRCLIP 132116340000

BRG,CYL-CAL ROLLER 5G TM
