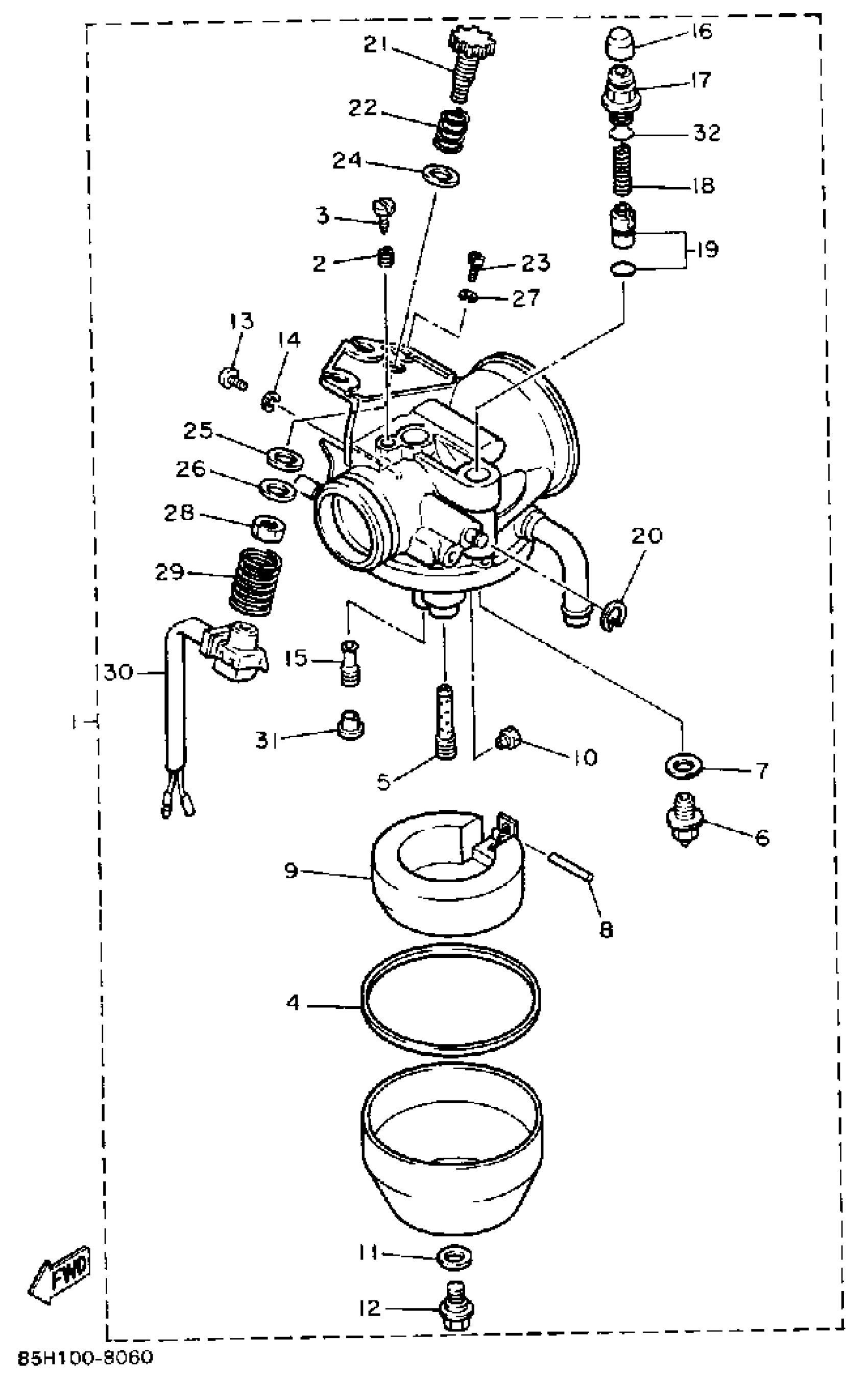

Find the part on the Carburetor diagram for your 1990 Yamaha Snoscoot (SV80P), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1990 Yamaha Snoscoot (SV80P) Carburetor Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CARBURETOR ASSY 1

85X-14101-01-00

1

$659.40

In stock

2

SPRING, AIR ADJUSTING

82A-14134-00-00

1

$8.22

In stock

3

. SCREW, PILOT ADJUST

85G-14211-10-00

1
Out of stock

4

. GASKET

85G-14126-00-00

1
Out of stock

5

NOZZLE, MAIN

85G-14941-7E-00

1

$39.97

In stock

6

NEEDLE VALVE ASSY

168-14190-10-00

1
Out of stock

7

WASHER, VALVE SEAT

214-14195-00-00

1

$6.11

In stock

8

. PIN, FLOAT ARM

7G0-14548-00-00

1
Out of stock

9

. FLOAT

85G-14185-01-00

1
Out of stock

10

JET, MAIN (#103.8)

3G2-1423E-41-00

—

$7.78

In stock

11

JET, MAIN (#100)

3G2-14231-20-00

1
Out of stock

11

JET, MAIN (#105)

3G2-14231-21-00

—

$7.18

In stock

11

JET,MAIN #102.5

3G2-1423A-71-00

1

$18.45

In stock

11

. JET, MAIN #1013

3G2-1423E-40-00

1
Out of stock

12

WASHER

256-14956-01-00

1

$6.46

In stock

13

. BOLT, HOLDING

7R1-14162-00-00

1

$8.82

In stock

14

SCREW, PAN HEAD(3XP)

98517-04006-00

1

$4.10

In stock

15

YBS67-4 WASHER, SPRING

92990-04100-00

—

$0.60

In stock

16

. JET, PILOT 625

193-14142-62-00

1
Out of stock

17

COVER, PLUNGER CAP

22F-14173-00-00

—
Out of stock

18

. GUIDE, CABLE

85G-14155-10-00

1
Out of stock

19

SPRING, PLUNGER

127-14135-00-00

—

$6.40

In stock

20

. PLUNGER, STARTER

5V7-14171-00-00

1
Out of stock

21

CLIP

363-14137-00-00

—

$9.95

In stock

22

. SCREW, THROTTLE

85G-14122-00-00

1
Out of stock

23

. SPRING, THRTL STOP

354-14133-00-00

1
Out of stock

24

. SCREW, GUIDE

85G-14245-00-00

1
Out of stock

25

GASKET

22F-14126-00-00

—
Out of stock

26

WASHER, PLUG SCREW

22F-14117-00-00

—

$6.38

In stock

27

. WASHER

1UF-14952-00-00

1
Out of stock

28

YBS67-4 WASHER, SPRING

92990-04100-00

—

$0.60

In stock

29

NUT

8X0-14358-00-00

—

$6.80

In stock

30

SPRING, THROTTLE STOP

8X0-14133-00-00

—

$15.40

In stock

31

SWITCH, CARBURETOR

87S-8259A-01-00

—

$73.57

In stock

32

. CAP, CARBURETOR

6K8-14471-10-00

1

$8.75

In stock

33

O-RING

1FN-14147-00-00

—

$22.43

In stock
