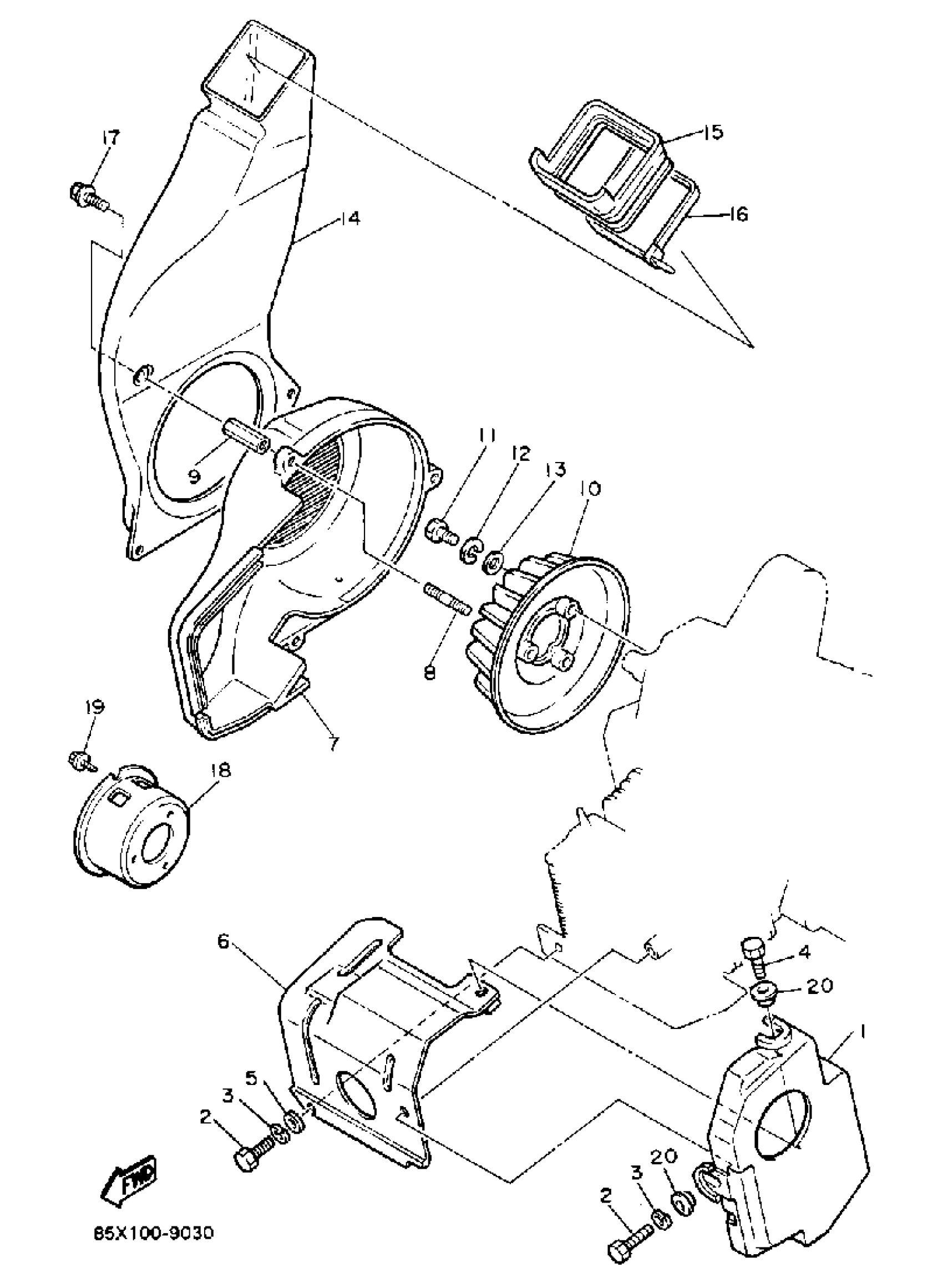

Yamaha SV80P (SNOSCOOT) 1990 AIR SHROUD - FAN Diagram

#

Description
Price

1

AIR SHROUD, CYLINDER 1

85X-12651-00-00

Unavailable

2

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

$2.76

3

WASHER, SPRING

92995-06100-00

Unavailable

4

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

$2.76

5

WASHER, PLAIN (646)

92990-06600-00

$2.80

6

AIR SHROUD, CYLINDER 2

85G-12652-00-00

Unavailable

7

AIR SHROUD, CYLINDER 3

85G-12653-00-00

Unavailable

8

BOLT, STUD(1JK)

90116-06475-00

$8.49

9

NUT, SPEC''L SHAPE

90179-06562-00

Unavailable

10

FAN

5G3-12611-00-00

Unavailable

11

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

$2.76

12

WASHER, SPRING

92995-06100-00

Unavailable

13

WASHER, PLAIN (646)

92990-06600-00

$2.80

14

DUCT 3

85G-12693-00-00

Unavailable

15

DAMPER, DUCT 3

85G-12686-01-00

Unavailable

16

CLAMP(MF1)

90464-15152-00

Unavailable

17

BOLT, FLANGE

95817-06012-00

Unavailable

18

PULLEY, STARTER

85G-15723-00-00

Unavailable

19

BOLT, FLANGE

95817-06012-00

Unavailable

20

C0LLAR

90387-062M9-00

Unavailable
