Description

Price

1

TRACK ASSY

85G-47110-09-00

Unavailable

2

PLATE, REINFORCEMENT

89A-47113-00-00

$5.49

3

AXLE, REAR

85G-47521-00-00

Unavailable

4

SUSPENSION WHEEL COMP.

8U7-47320-00-00

Unavailable

5

BEARING(8AB)

93306-00444-00

$41.99

6

CIRCLIP(5U8)

99009-42500-00

$8.49

7

COLLAR

90387-206T7-00

Unavailable

8

COLLAR

90387-206V2-00

Unavailable

9

WASHER, PLATE (888)

90201-20279-00

Unavailable

10

COLLAR

90387-204U6-00

Unavailable

11

NUT, SELF-LOCKING (8BF)

95607-14200-00

$12.49

12

PIN, COTTER

91490-30030-00

$8.49

13

COLLAR

90387-206T8-00

Unavailable

14

SUSPENTION WHEEL COMP

87M-47320-00-00

$84.99

15

BEARING(8AB)

93306-00444-00

$41.99

16

CIRCLIP(5U8)

99009-42500-00

$8.49

17

BOLT, WASHER BASED

90105-14488-00

Unavailable

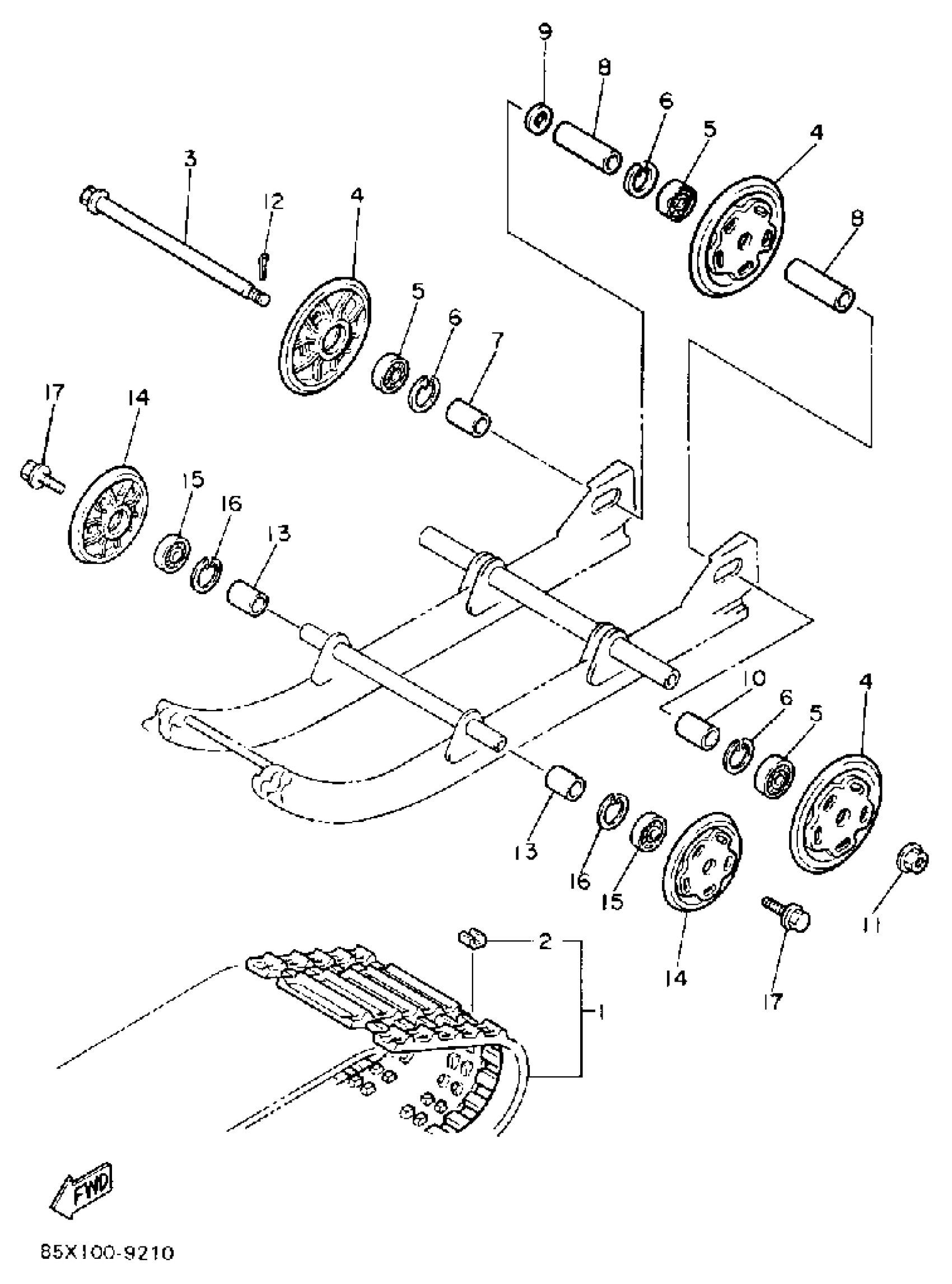

Yamaha SV80N (SNOSCOOT) 1989 TRACK SUSPENSION 1 Diagram

TRACK ASSY

PLATE, REINFORCEMENT

AXLE, REAR

SUSPENSION WHEEL COMP.

BEARING(8AB)

CIRCLIP(5U8)

COLLAR

COLLAR

WASHER, PLATE (888)

COLLAR

NUT, SELF-LOCKING (8BF)

PIN, COTTER

COLLAR

SUSPENTION WHEEL COMP

BEARING(8AB)

CIRCLIP(5U8)

BOLT, WASHER BASED
