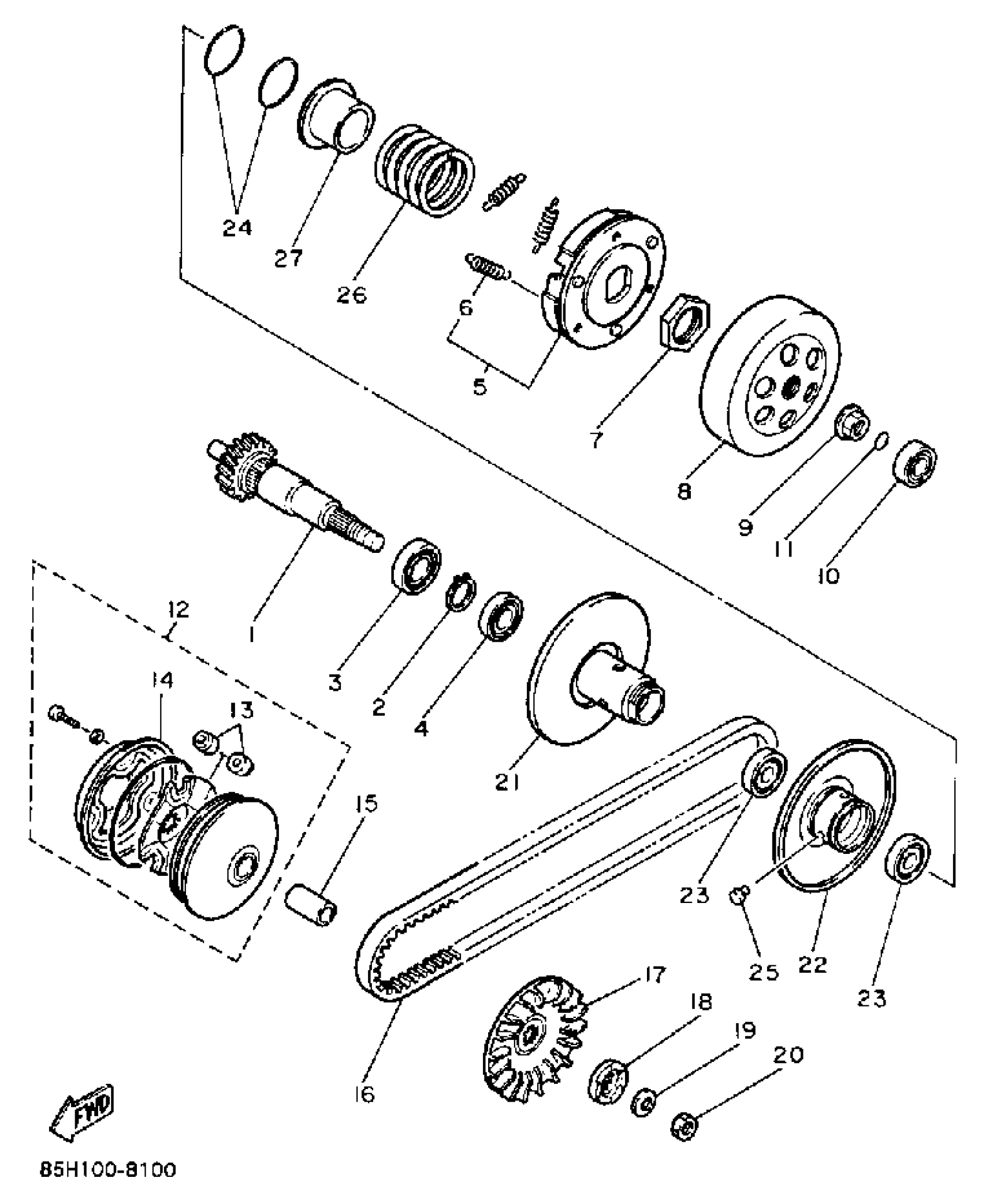

Yamaha SV80N (SNOSCOOT) 1989 CLUTCH Diagram

#

Description
Price

1

GEAR, PRI DRIVE

85G-16111-00-00

Unavailable

2

CIRCLIP(JF7)

99009-25400-00

$8.49

3

BEARING(1FF)

93306-00519-00

$36.99

4

OIL SEAL(2VT)

93102-25395-00

$12.49

5

CLUTCH CARRIER ASY

85G-16620-20-00

Unavailable

6

SPRING, CLUTCH WEIGHT 1

17M-16626-01-00

Unavailable

7

NUT (5G3)

90170-36279-00

$16.99

8

HOUSING, CLUTCH

32N-16611-01-00

Unavailable

9

NUT

90179-14427-00

$3.02

10

BEARING (32N)

93306-00108-00

$33.99

11

.. O-RING

93210-08287-00

Unavailable

12

PRIMARY SHEAVE ASSEMBLY

85G-17601-00-00

Unavailable

13

PRIMARY SHEAVE WEIGHT (85G)

30A-17632-00-00

Unavailable

13

WEIGHT

4DM-17632-10-00

$6.99

14

O-RING(85G)

93210-88696-00

$14.99

15

COLLAR

90387-167H4-00

Unavailable

16

V-BELT

32N-17641-00-00

Unavailable

17

SHEAVE, PRI FIXED

32N-17611-00-00

Unavailable

18

CLUTCH, ONEWAY

14T-15657-00-00

Unavailable

19

WASHER 823214910000

90208-10012-00

Unavailable

20

NUT, FLANGE(3BM)

95704-10500-00

Unavailable

21

SEC FXD SHV

32N-17660-00-00

Unavailable

22

SEC SLIDING SHEAVE

85G-17670-00-00

Unavailable

23

OIL SEAL

93104-41119-00

Unavailable

24

O-RING

93210-46593-00

Unavailable

25

PIN, GUIDE

24G-17664-00-00

Unavailable

26

SPRING, COMPRESSION

90501-457E7-00

Unavailable

27

SEAT, SEC SPRING

32N-17684-00-00

Unavailable
