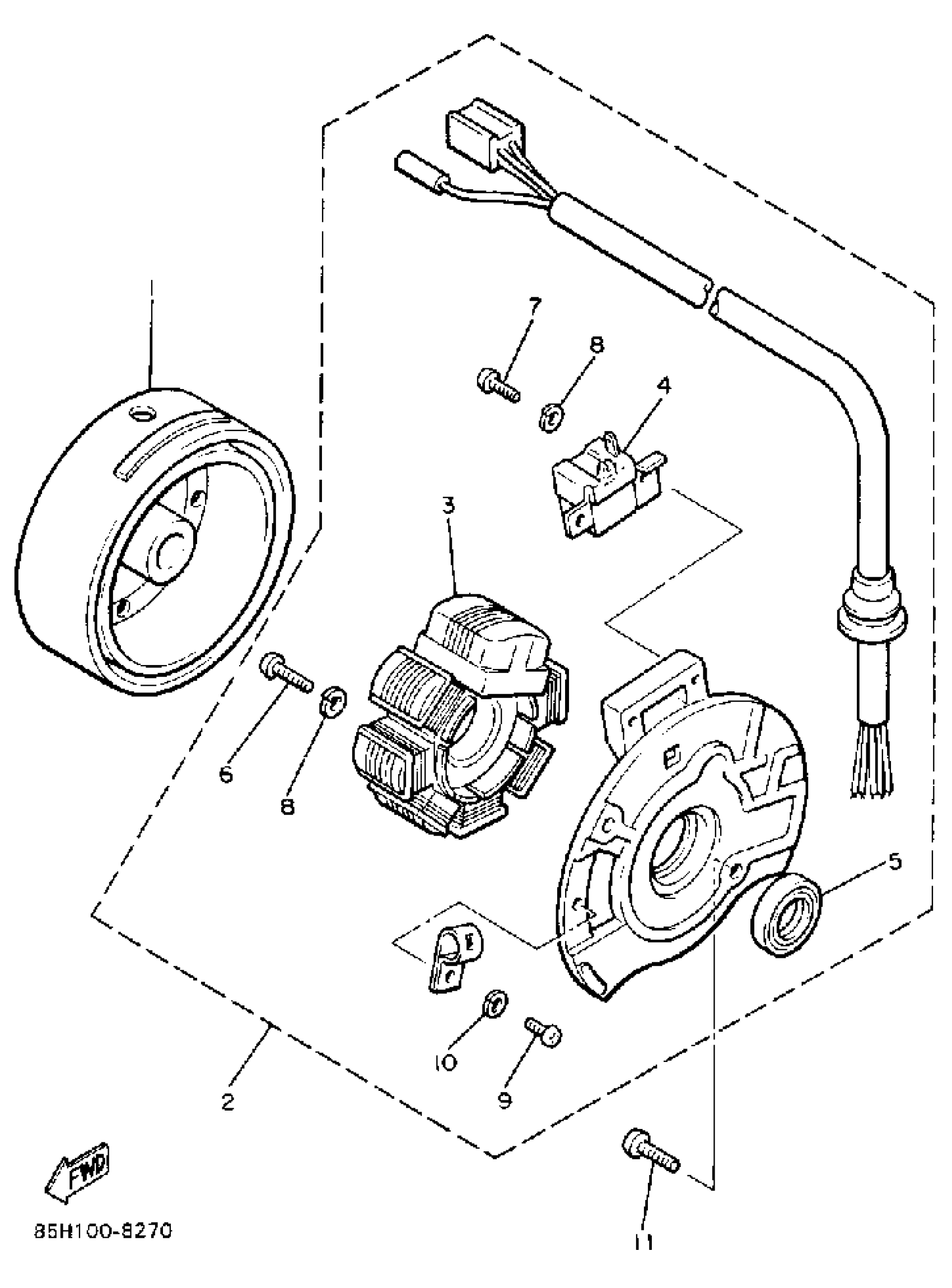

Yamaha SV80M (SNOSCOOT) 1988 GENERATOR Diagram

#

Description

Price

1

BASE ASSY

85G-85560-M1-00

Unavailable

2

BASE ASSY

85G-85560-M1-00

Unavailable

3

. STATOR

85G-81403-M1-00

Unavailable

4

. COIL, PULSER

2JA-85580-M0-00

Unavailable

5

. OIL SEAL, SO-TYPE

93104-19082-00

Unavailable

6

SCREW, PANHEAD (A93)

98580-05525-00

$2.00

7

SCREW, PAN HEAD(62X)

97885-05010-00

Unavailable

8

YBS67-5 WASHER, SPRING

92990-05100-00

$0.35

9

SCREW, PAN HEAD(3XP)

98517-04006-00

Unavailable

10

YBS67-4 WASHER, SPRING

92990-04100-00

$0.86

11

SCREW, PAN

98507-06014-00

$8.49
