Description

Price

1

FUEL TANK

85G-24111-00-00

Unavailable

2

SEAT, BATTERY

5Y1-82122-00-00

$7.99

3

CAP ASSEMBLY

85G-24610-00-00

Unavailable

4

HOSE (L1500)

90445-090F6-00

$31.99

5

BOLT, HEXAGON

97013-08020-00

$1.16

6

YBS67-8 WASHER, SPRING

92990-08100-00

$5.60

7

COLLAR

90387-081U0-00

Unavailable

8

FILTER ASSY

85G-24560-00-00

$39.99

9

HOSE (L210)

90445-110F5-00

$15.99

10

PACKING, FILTER

8F3-24564-00-00

$13.49

11

BODY, CAP

8R4-24644-00-00

Unavailable

12

TUBE, FLEXIBLE VINYL(86X)

91A20-07100-00

$23.99

13

CLIP (7K7)

90467-11044-00

$8.49

14

HOSE

(90446-09270-00)

Unavailable

15

CLIP (8A1)

90467-09026-00

$3.28

16

CLAMP (3Y2)

90464-16039-00

Unavailable

17

REFLECTOR 1

85G-7716E-00-00

Unavailable

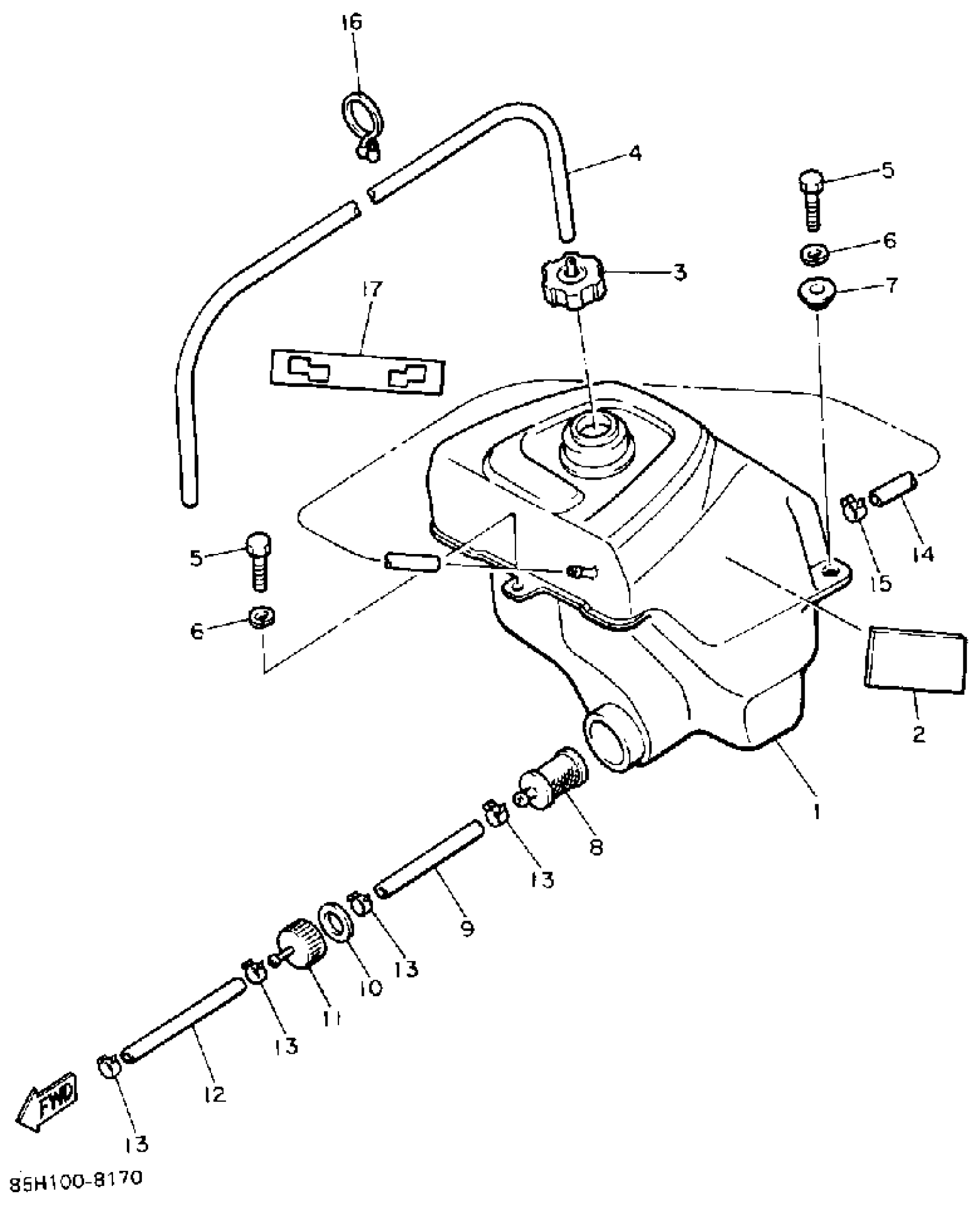

Yamaha SV80M (SNOSCOOT) 1988 FUEL TANK Diagram

FUEL TANK

SEAT, BATTERY

CAP ASSEMBLY

HOSE (L1500)

BOLT, HEXAGON

YBS67-8 WASHER, SPRING

COLLAR

FILTER ASSY

HOSE (L210)

PACKING, FILTER

BODY, CAP

TUBE, FLEXIBLE VINYL(86X)

CLIP (7K7)

HOSE

CLIP (8A1)

CLAMP (3Y2)

REFLECTOR 1
