- SV80M (SNOSCOOT) 1988
AIR CLEANER

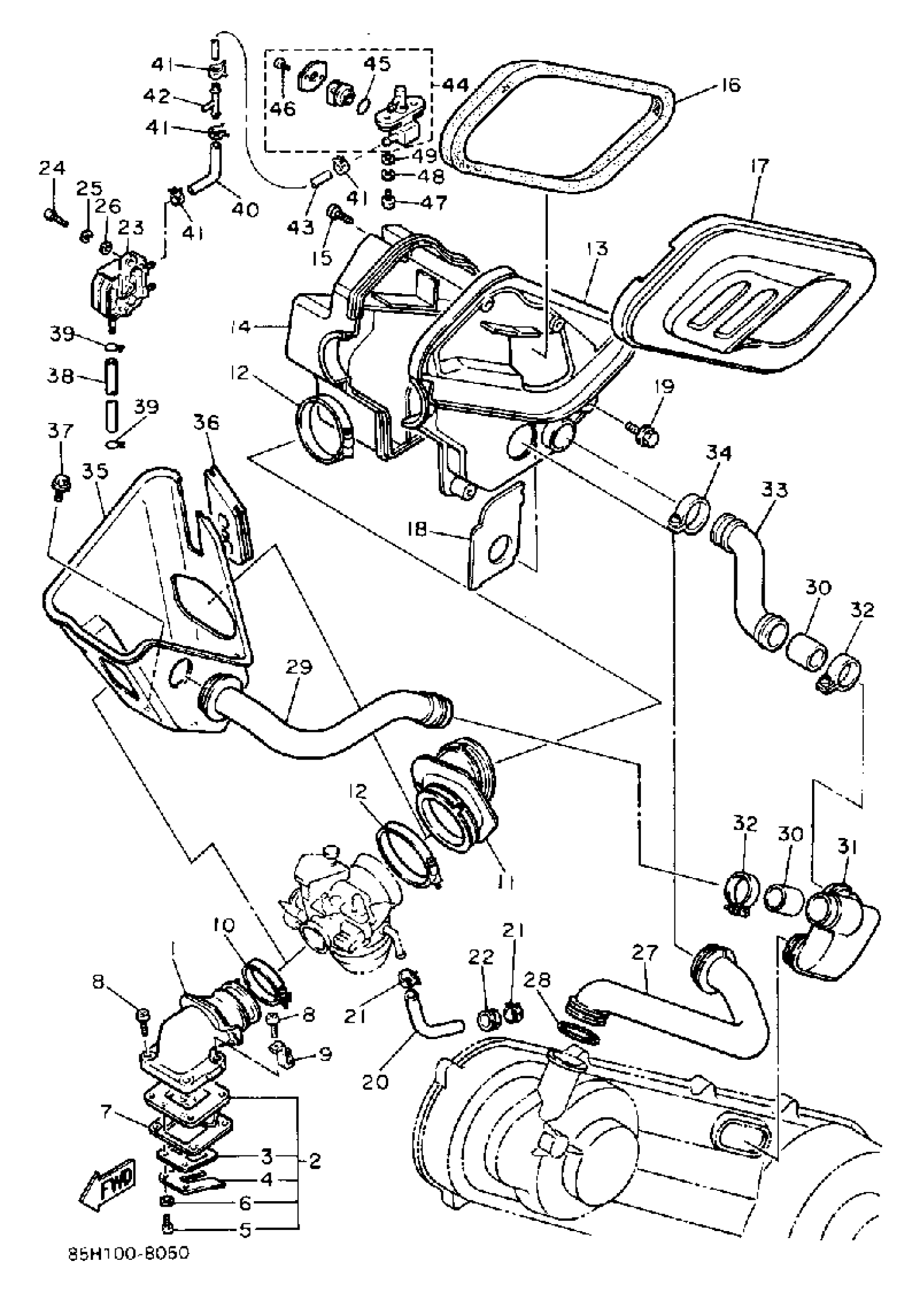

Yamaha SV80M (SNOSCOOT) 1988 AIR CLEANER Diagram
#
1
MANIFOLD, INTAKE
85G-13555-00-00
Unavailable
2
REED VALVE ASSEMBLY
32N-13610-00-00
Unavailable
3
VALVE, REED
314-13613-01-00
Unavailable
4
. STOPPER, REED VALVE
10X-13616-00-00
Unavailable
5
SCREW, PAN HEAD (J10)
98580-03008-00
$3.55
6
WASHER, SPRING
92990-03100-00
$8.49
7
GASKET, VALVE SEAT
88W-13621-00-00
Unavailable
8
SCREW, PAN HEAD (76T)
98517-06025-00
$3.77
9
CLAMP
90465-08135-00
Unavailable
10
CLAMP, HOSE (5R2)
90460-41191-00
$16.99
11
JOINT, AIR CLNR 1
85G-14453-00-00
Unavailable
12
HOSE CLAMP ASSY
90450-56001-00
$17.99
13
JOINT, AIR CLNR 1
85G-14453-00-00
Unavailable
14
SILENCER, INTAKE 2
85G-14441-00-00
Unavailable
15
YBS83-525 SCREW,PANH.TAPPING
97780-50125-00
$2.87
16
ELEMENT, AIR CLEANER
85G-14451-01-00
Unavailable
17
COVER, CLNR CASE 1
(85G-1441A-00-00)
Unavailable
18
PLATE
85G-14477-00-00
Unavailable
19
BOLT, FLANGE
95817-06016-00
Unavailable
20
TUBE, FLEXIBLE VINYL(86X)
91A20-07100-00
Unavailable
21
CLIP (7K7)
90467-11044-00
Unavailable
22
GROMMET
90480-15257-00
Unavailable
23
FUEL PUMP ASSY
8R4-24410-01-00
Unavailable
24
SCREW, PAN HEAD(6B0)
97885-05016-00
Unavailable
25
YBS67-5 WASHER, SPRING
92990-05100-00
Unavailable
26
WASHER, PLAIN (646)
92990-05600-00
Unavailable
27
JOINT, AIR CLNR 2
85G-14463-00-00
Unavailable
28
SPRING,TENSION
90506-06327-00
Unavailable
29
DUCT
85G-14437-00-00
Unavailable
30
COLLAR
90387-297T8-00
Unavailable
31
DUCT
85G-1443A-00-00
Unavailable
32
CLAMP, HOSE
90460-39202-00
Unavailable
33
PIPE
(85G-14419-00-00)
Unavailable
34
CLAMP, HOSE (5R2)
90460-41191-00
$16.99
35
COVER, CARBURETOR 2
85G-14284-01-00
Unavailable
36
GROMMET
85G-14435-00-00
Unavailable
37
BOLT, FLANGE
95817-06012-00
Unavailable
38
HOSE (L400)
90445-116K9-00
Unavailable
39
CLIP
90467-090A2-00
Unavailable
40
TUBE, FLEXIBLE(3NV)
91A21-07020-00
Unavailable
41
CLIP (7K7)
90467-11044-00
Unavailable
42
PIPE, JOINT
815-24379-00-00
Unavailable
43
TUBE, FLEXIBLE VINYL(86X)
91A20-07100-00
Unavailable
44
FUEL COCK ASSEMBLY
85G-24500-00-00
Unavailable
45
O-RING
4X8-24534-00-00
Unavailable
46
SCREW, PAN HEAD (J10)
98580-03008-00
$3.55
47
SCREW, PAN HEAD(62X)
97885-05010-00
Unavailable
48
YBS67-5 WASHER, SPRING
92990-05100-00
Unavailable
49
WASHER, PLAIN (646)
92990-05600-00
Unavailable
