1990 Yamaha Snoscoot (Elec Start (SV80EP) Steering Diagram

← All diagrams

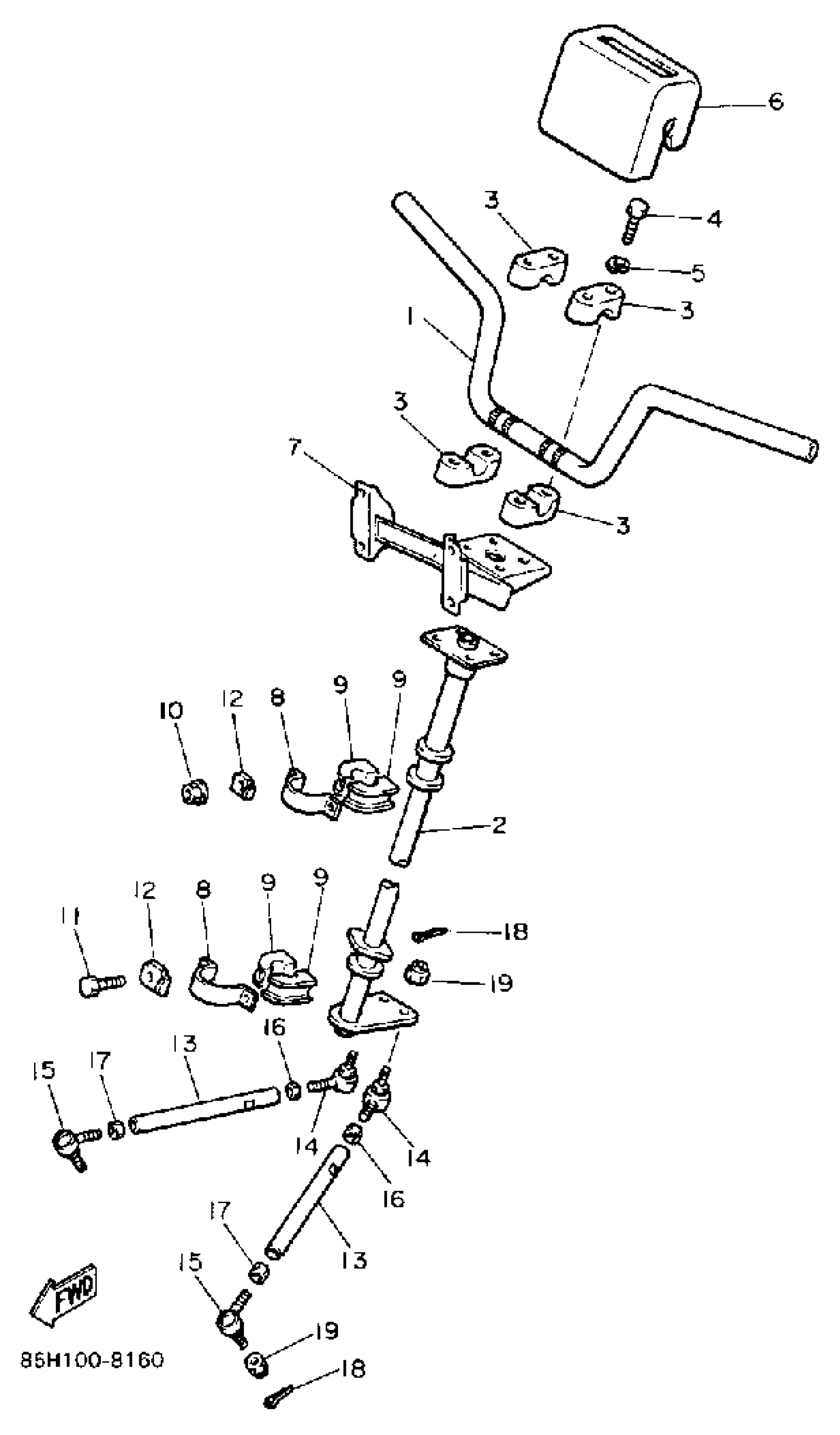

Find the part on the Steering diagram for your 1990 Yamaha Snoscoot (Elec Start (SV80EP), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1990 Yamaha Snoscoot (Elec Start (SV80EP) Steering Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HANDLEBAR

87A-23811-00-00

1
Out of stock

2

COLUMN, STEERING 2

85G-23813-00-00

1
Out of stock

3

HOLDER, HANDLE UPR

85G-23814-00-00

1
Out of stock

4

BOLT

97021-08065-00

1
Out of stock

5

YBS67-8 WASHER, SPRING

92990-08100-00

1

$4.52

In stock

6

COVER, STEERING

8F3-23818-00-00

—

$21.86

In stock

7

STAY, HEADLIGHT

85G-23174-00-00

1
Out of stock

8

BRACKET, STEERING LOWER

84M-23868-00-00

—

$32.05

In stock

9

BEARING, STEERING

8F3-23812-00-00

1

$9.89

In stock

10

NUT, NYLON

95717-08300-00

1

$2.57

In stock

11

BOLT, HEXAGON

97017-08016-00

1
Out of stock

12

WASHER, LOCK 1

8AC-23894-01-00

1

$3.62

In stock

13

ROD, STEERING RELAY

85G-23821-00-00

1
Out of stock

14

JOINT, UNIVERSAL 1

86X-23841-00-00

1

$51.36

In stock

15

JOINT, UNIVERSAL 2

86X-23845-00-00

1

$54.20

In stock

16

NUT (682)

95380-10700-00

1

$5.78

In stock

17

NUT, HEXAGON (8A5)

90170-10186-00

—

$7.60

In stock

18

PIN, COTTER

91490-25020-00

—

$2.94

In stock

19

NUT, SELF-LOCKING (8J8)

90185-10085-00

—

$2.57

In stock
← SKI Electrical 1 →
