1990 Yamaha Snoscoot (Elec Start (SV80EP) SKI Diagram

← All diagrams

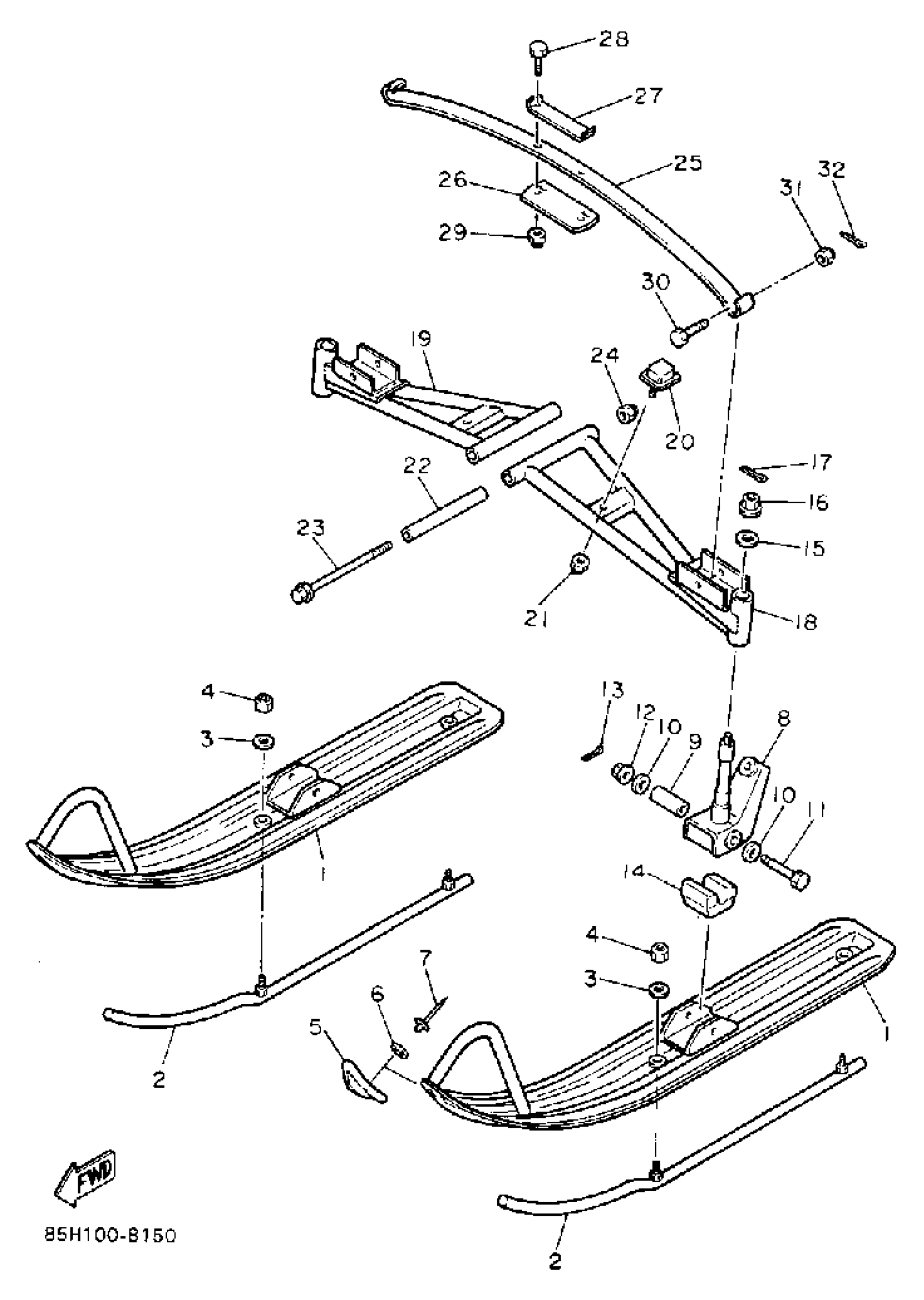

Find the part on the SKI diagram for your 1990 Yamaha Snoscoot (Elec Start (SV80EP), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1990 Yamaha Snoscoot (Elec Start (SV80EP) SKI Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SKI COMP. 1

85X-23710-00-00

1
Out of stock

2

SKI RUNNER, (SV80)

853-23731-00-XX

1
Out of stock

3

WASHER (853)

90201-08326-00

1

$6.17

In stock

4

NUT, NYLON

95717-08300-00

1

$2.57

In stock

5

PROTECTOR, SKI

867-23747-00-00

1
Out of stock

6

1

$2.62

In stock

7

RIVET, BLIND (8K1)

90267-40076-00

1
Out of stock

8

COLUMN,SKI 1

85G-23853-01-00

1
Out of stock

9

COLLAR

90387-082U2-00

1
Out of stock

10

WASHER (853)

90201-08326-00

1

$6.17

In stock

11

BOLT W/HOLE

90102-08071-00

1
Out of stock

12

NUT, SELF-LOCKING

90185-08169-00

1

$7.09

In stock

13

PIN, COTTER

91490-20025-00

1

$1.31

In stock

14

STOPPER 1

87A-23743-00-00

1
Out of stock

15

WASHER, PLATE (4W3)

90201-086A3-00

1

$6.29

In stock

16

NUT, SELF-LOCKING

90185-08169-00

1

$7.09

In stock

17

PIN, COTTER

91490-20025-00

1

$1.31

In stock

18

ARM,FRONT 1

85G-2382E-01-00

1
Out of stock

19

ARM, FRONT 2

85G-2382F-01-00

1
Out of stock

20

STOPPER, BRAKE PEDL

81E-21449-00-00

1
Out of stock

21

NUT

90185-08055-00

—

$8.31

In stock

22

COLLAR

90387-106T5-00

1
Out of stock

23

BOLT,FLANGE

95827-10175-00

1
Out of stock

24

NUT, NYLON

95707-10300-00

—

$6.68

In stock

25

LEAF 1

85G-23761-00-00

1
Out of stock

26

SEAT, SPRING 1

85G-23768-00-00

1
Out of stock

27

WASHER, ROCK (8J5)

90215-10155-00

—

$11.66

In stock

28

. BOLT

90109-105E1-00

1
Out of stock

29

NUT, SELF-LOCKING (8J8)

90185-10085-00

—

$2.57

In stock

30

—

$8.14

In stock

31

NUT, U

95617-08100-00

—

$6.78

In stock

32

PIN, COTTER

91490-20025-00

1

$1.31

In stock
