1990 Yamaha Snoscoot (Elec Start (SV80EP) Starter Diagram

← All diagrams

Find the part on the Starter diagram for your 1990 Yamaha Snoscoot (Elec Start (SV80EP), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

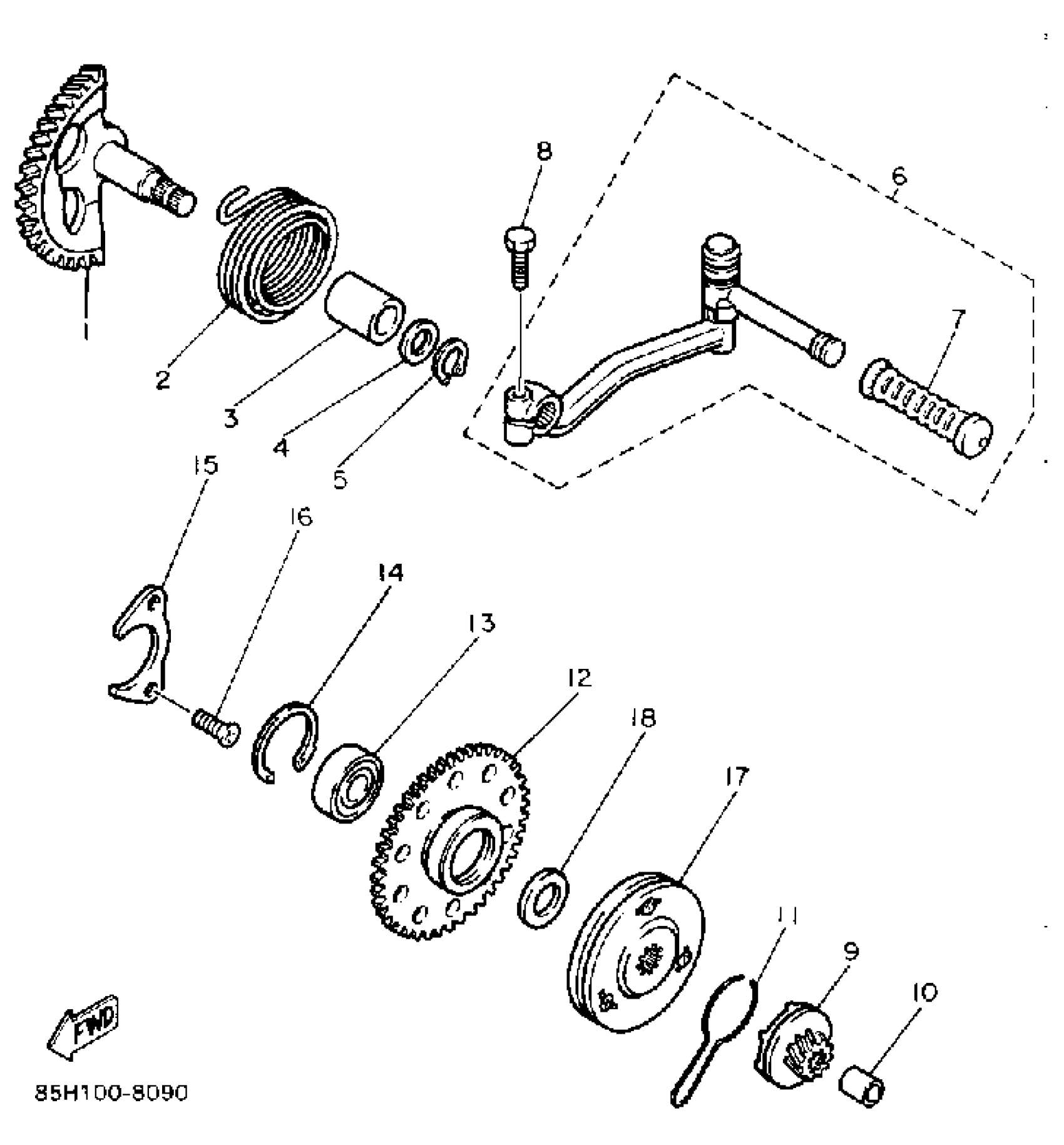

1990 Yamaha Snoscoot (Elec Start (SV80EP) Starter Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

KICK SHAFT ASSEMBLY

85G-15601-00-00

1
Out of stock

2

SPRING, TORSION (32N)

90508-32609-00

1

$12.45

In stock

3

BUSH, SOLID

90380-15817-00

—

$0.70

In stock

4

WASHER, PLATE (5G3)

90201-154E9-00

1

$6.31

In stock

5

CIRCLIP(1AR)

99009-15400-00

1

$5.10

In stock

6

KICK CRANK ASSY

3KJ-15620-02-00

—

$153.75

In stock

7

COVER, KICK LEVER

156-15618-01-00

1

$6.43

In stock

8

BOLT, HEXAGON

97017-06025-00

1

$2.98

In stock

9

KICK PINION ASY

87A-15630-00-00

1
Out of stock

10

BUSH, SOLID(85G)

90380-08201-00

1

$15.71

In stock

11

CLIP

32N-15673-00-00

—

$8.77

In stock

12

WHEEL, STARTER (66T)

17M-15524-00-00

1
Out of stock

13

BEARING(85G)

93306-00316-00

1

$33.19

In stock

14

CIRCLIP

93450-35163-00

1
Out of stock

15

HOLDER

17M-15118-00-00

1
Out of stock

16

SCREW, FLAT

98707-06014-00

—
Out of stock

17

STARTER CLUTCH ASSY

24G-15570-01-00

1
Out of stock

18

WASHER, PLATE (14T)

90201-163F8-00

—

$8.17

In stock
