1990 Yamaha Snoscoot (Elec Start (SV80EP) Electrical 2 Diagram

← All diagrams

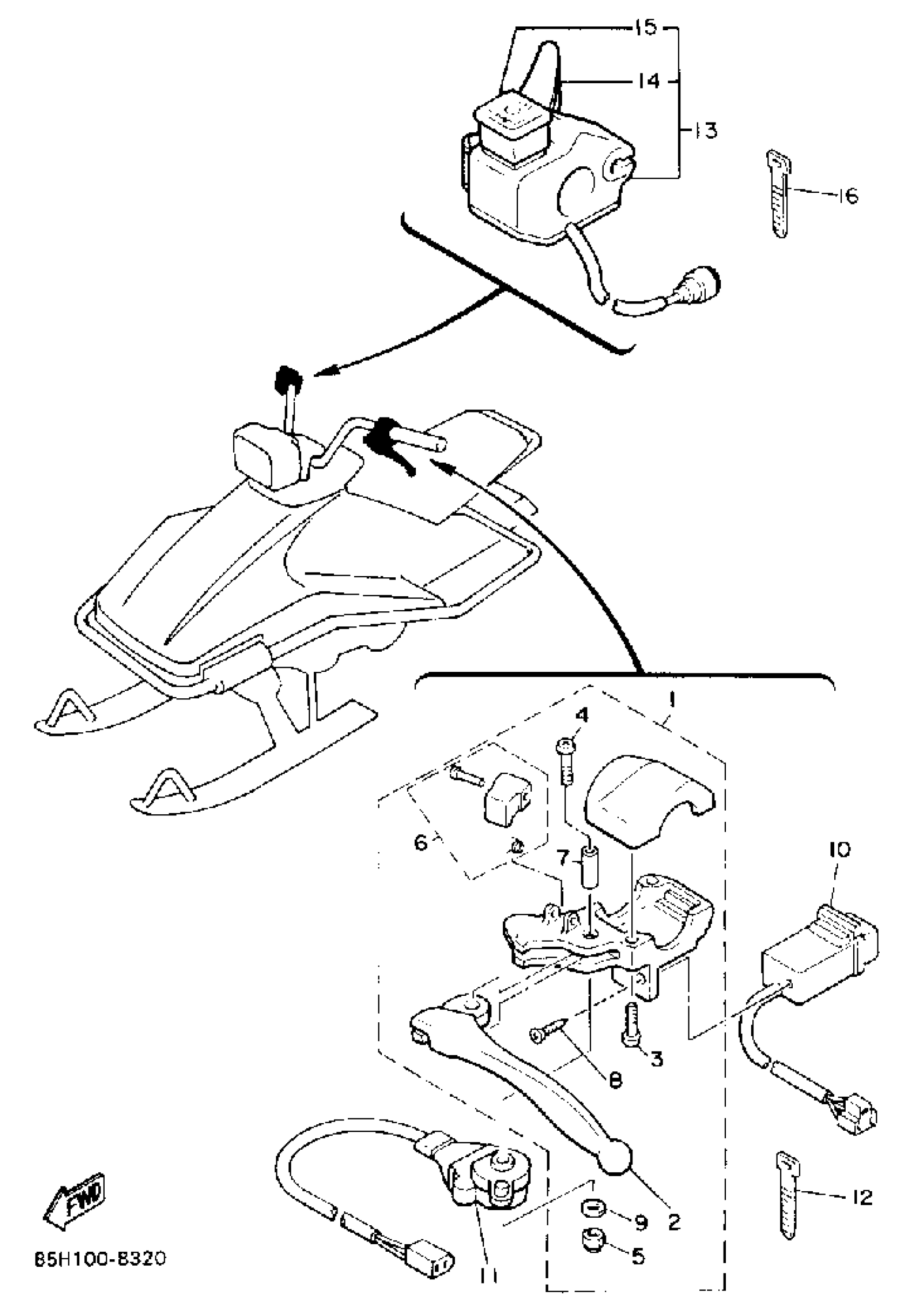

Find the part on the Electrical 2 diagram for your 1990 Yamaha Snoscoot (Elec Start (SV80EP), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1990 Yamaha Snoscoot (Elec Start (SV80EP) Electrical 2 Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

LEVER HOLDER ASSY (LEFT)

88R-W8291-00-00

1

$110.75

In stock

2

LEVER 1

8H8-83912-00-00

1

$18.40

In stock

3

SCREW, PAN HEAD(41N)

90157-05057-00

—

$2.23

In stock

4

SCREW, PAN

98507-05040-00

1

$6.68

In stock

5

NUT, NYLON

95707-05300-00

1

$2.74

In stock

6

. LEVER LOCK ASSEMBLY (8K4-83930-00-00)

82A-83930-00-00

1
Out of stock

7

COLLAR, LEVER

802-83913-00-00

—

$6.35

In stock

8

. SCREW, TAPPING

97780-30312-00

1
Out of stock

9

. WASHER, PLAIN

92990-05200-00

1

$5.08

In stock

10

BEAM SWITCH ASSY

8H8-83950-01-00

1

$68.89

In stock

11

STOP SWITCH ASSY

8R4-82530-00-00

1

$27.65

In stock

12

BAND, SWITCH CORD

437-83936-01-00

1

$4.63

In stock

13

LVR HOLDER ASSEMBLY RT

85G-82720-00-00

1
Out of stock

14

LEVER, THROTTLE

8V0-42138-00-00

1

$55.57

In stock

15

. KILL SWITCH

85G-82575-09-00

1
Out of stock

16

BAND, SWITCH CORD

437-83936-01-00

1

$4.63

In stock
