1990 Yamaha Snoscoot (Elec Start (SV80EP) Crankcase Diagram

← All diagrams

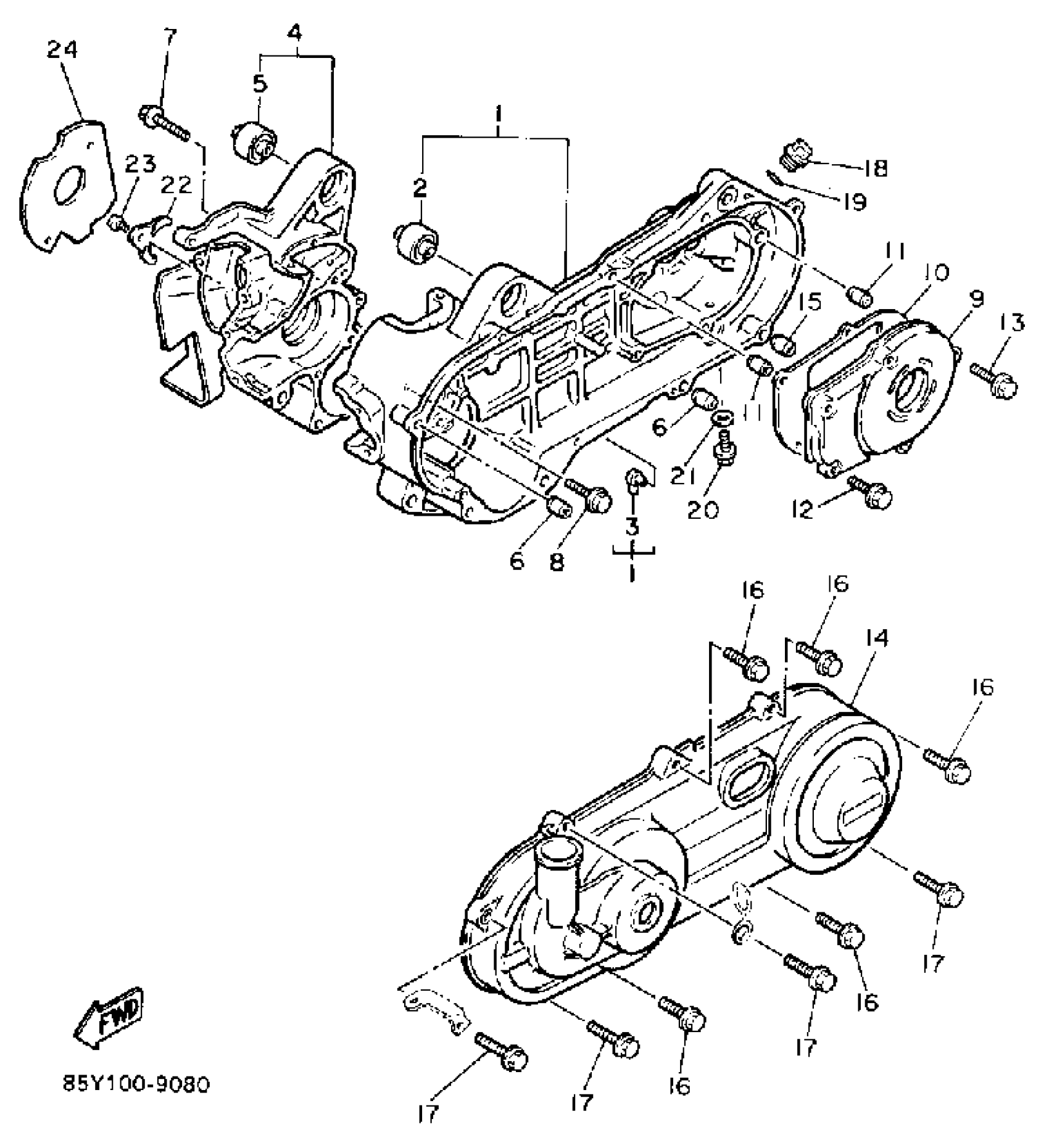

Find the part on the Crankcase diagram for your 1990 Yamaha Snoscoot (Elec Start (SV80EP), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1990 Yamaha Snoscoot (Elec Start (SV80EP) Crankcase Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CRANKCASE ASSEMBLY 1

85G-15110-00-00

1
Out of stock

2

. DAMPER, ENG MOUNT

85G-15316-01-00

1
Out of stock

3

JOINT, BREATHER

J38-11116-00-00

1
Out of stock

4

CRANKCASE ASSEMBLY 2

85G-15120-00-00

1
Out of stock

5

. DAMPER, ENG MOUNT

85G-15316-01-00

1
Out of stock

6

PIN, DOWEL

99530-12016-00

1
Out of stock

7

BOLT, SMALL FLANGE

95024-06045-00

1
Out of stock

8

BOLT, FLANGE(4BH)

95024-06035-00

1
Out of stock

9

COVER, CRANKCASE R

5G3-15421-00-00

1
Out of stock

10

GASKET, CRCS CVR 2

88W-15461-00-00

1
Out of stock

11

PIN, DOWEL(3VD)

99530-10114-00

1
Out of stock

12

BOLT, FLANGE(4KG)

95024-06025-00

1
Out of stock

13

BOLT, FLANGE(4BH)

95024-06035-00

1
Out of stock

14

CRANKCASE COVER 1ASSEMBLY 1

86X-W1541-01-00

1
Out of stock

15

PIN, DOWEL(3VD)

99530-10114-00

1
Out of stock

16

BOLT, SMALL FLANGE

95027-06030-00

—
Out of stock

17

BOLT, SMALL FLANGE

95027-06040-00

—
Out of stock

18

PLUG, STRAIGHT SCREW

90340-14119-00

1
Out of stock

19

O-RING (26H)

93210-14579-00

—
Out of stock

20

BOLT, FLANGE(JN5)

95817-08016-00

—
Out of stock

21

WASHER, PLATE 3411117500

90201-08087-00

—
Out of stock

22

HOLDER

(5G3-15128-00-00)

1
Out of stock

23

SCREW, PAN HEAD(62J)

97885-06012-00

1
Out of stock

24

GASKET, CRANKCASE

88W-15462-00-00

1
Out of stock
