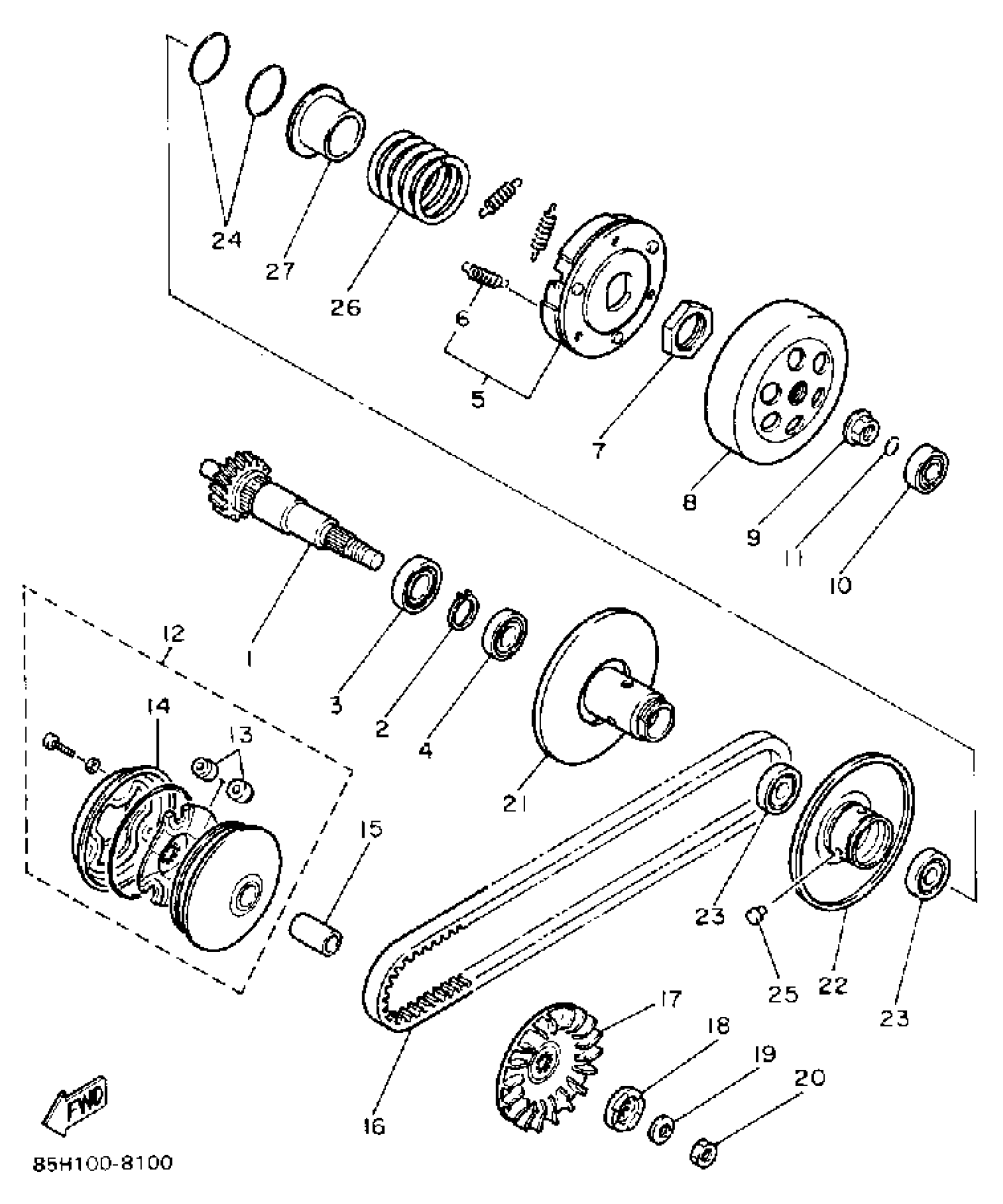

Yamaha SV80EP (SNOSCOOT (ELEC START)) 1990 CLUTCH Diagram
#
Description
Price
1
GEAR, PRI DRIVE
85G-16111-00-00
Unavailable
2
CIRCLIP(JF7)
99009-25400-00
$8.49
3
BEARING(1FF)
93306-00519-00
$36.99
4
OIL SEAL(2VT)
93102-25395-00
$12.49
5
CLUTCH CARRIER ASY
85G-16620-20-00
Unavailable
6
SPRING, CLUTCH WEIGHT 1
17M-16626-01-00
Unavailable
7
NUT (5G3)
90170-36279-00
$16.99
8
HOUSING, CLUTCH
32N-16611-01-00
Unavailable
9
NUT
90179-14427-00
$3.02
10
BEARING (32N)
93306-00108-00
$33.99
11
.. O-RING
93210-08287-00
Unavailable
12
PRIMARY SHEAVE ASSEMBLY
85G-17601-00-00
Unavailable
13
PRIMARY SHEAVE WEIGHT (85G)
30A-17632-00-00
Unavailable
13
WEIGHT
4DM-17632-10-00
$6.99
14
O-RING(85G)
93210-88696-00
$14.99
15
COLLAR
90387-167H4-00
Unavailable
16
V-BELT
32N-17641-00-00
Unavailable
17
SHEAVE, PRI FIXED
32N-17611-00-00
Unavailable
18
CLUTCH, ONEWAY
14T-15657-00-00
Unavailable
19
WASHER 823214910000
90208-10012-00
Unavailable
20
NUT, FLANGE(3BM)
95704-10500-00
Unavailable
21
SEC FXD SHV
32N-17660-00-00
Unavailable
22
SEC SLIDING SHEAVE
85G-17670-00-00
Unavailable
23
OIL SEAL
93104-41119-00
Unavailable
24
O-RING
93210-46593-00
Unavailable
25
PIN, GUIDE
24G-17664-00-00
Unavailable
26
SPRING, COMPRESSION
90501-457E7-00
Unavailable
27
SEAT, SEC SPRING
32N-17684-00-00
Unavailable
