- SV80EN (SNOSCOOT (ELEC START)) 1989
TRACK SUSPENSION 2

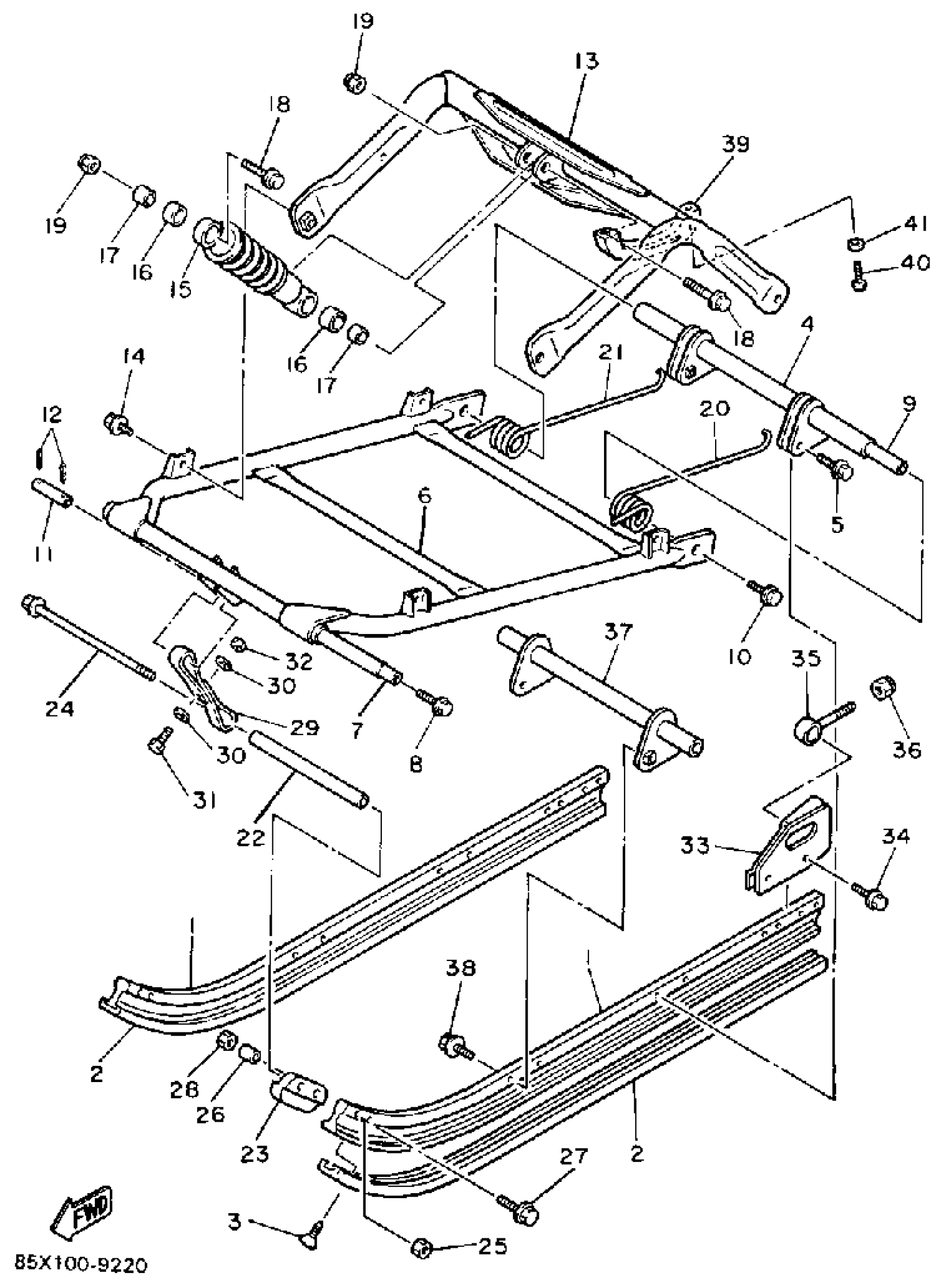

Yamaha SV80EN (SNOSCOOT (ELEC START)) 1989 TRACK SUSPENSION 2 Diagram
#
1
FRAME, SLIDING 1
85G-47411-00-00
Unavailable
2
SLIDING RUNNER
85G-47421-00-XX
Unavailable
3
SCREW, CROSSRECESS (8G6)
90151-06005-00
$9.49
4
BRACKET 2
85G-47416-00-00
Unavailable
5
BOLT, FLANGE(4LN)
95817-08025-00
$8.49
6
ARM, PIVOT 1
85G-47331-00-00
Unavailable
7
SHAFT 1
85G-47465-00-00
Unavailable
8
BOLT (8V0)
90109-10771-00
$5.60
9
SHAFT 3
85G-47485-00-00
Unavailable
10
BOLT, FLANGE
95817-10030-00
$8.49
11
COLLAR(85G)
90387-106T4-00
$14.99
12
PIN, COTTER
91490-20035-00
$4.77
13
BRACKET 3
85G-47417-01-00
Unavailable
14
BOLT, FLANGE(JN5)
95817-08016-00
$5.49
15
SHOCK ABSORBER
85G-47480-00-00
Unavailable
16
BUSH, SPECL NYLON
90386-14145-00
Unavailable
17
COLLAR (8U7)
90387-105G5-00
Unavailable
18
BOLT, FLANGE(4GB)
95817-10045-00
Unavailable
19
NUT, U
95617-10100-00
Unavailable
20
SPRING,FRONT 1
85G-47471-01-00
Unavailable
21
SPRING, FRONT 2
85G-47472-01-00
Unavailable
22
COLLAR
90387-086T3-00
Unavailable
23
RUNNER, SLIDING 2
85G-47422-01-00
Unavailable
24
BOLT,FLANGE
95817-08190-00
Unavailable
25
NUT, SELF-LOCKING
90185-08169-00
Unavailable
26
COLLAR
90387-086T2-00
Unavailable
27
BOLT, FLANGE
95814-08045-00
Unavailable
28
NUT, SELF-LOCKING
90185-08169-00
Unavailable
29
STOPPER 1
85G-47495-00-00
Unavailable
30
WASHER
90209-06012-00
Unavailable
31
BOLT, HEXAGON
97017-06025-00
Unavailable
32
NUT, NYLON
95707-06300-00
Unavailable
33
FRAME, SLIDING 2
85G-47412-00-00
Unavailable
34
BOLT, FLANGE(4LN)
95817-08025-00
$8.49
35
COLLAR 3
85G-47479-00-00
Unavailable
36
NUT, NYLON
95707-10300-00
Unavailable
37
BAR, SUSPENSION
85G-47451-00-00
Unavailable
38
BOLT, FLANGE(4LN)
95817-08025-00
$8.49
39
PROTECTOR
85X-47445-00-00
Unavailable
40
SCREW, PAN HEAD (76T)
98517-06025-00
Unavailable
41
YBS66-6 WASHER, PLAIN
92990-06200-00
Unavailable
