Description

Price

1

BRACKET, ENGINE 1

8F3-21411-02-00

Unavailable

2

BOLT, FLANGE

95817-08012-00

$5.49

3

BOLT,WASHER BASED

90105-08521-00

Unavailable

4

BRACKET, ENGINE 2

85G-21419-00-00

Unavailable

5

BOLT, FLANGE

95817-08012-00

$5.49

6

BRACKET, ENGINE 3

85G-21429-00-00

Unavailable

7

BOLT, HEXAGON

97017-06012-00

$3.76

8

WASHER, SPRING

92907-06100-00

$4.25

9

WASHER(6TA)

92907-06600-00

$2.72

10

HOUSING, FRONT AXLE

85G-47551-00-00

Unavailable

11

BEARING(8AB)

93306-00444-00

$41.99

12

BOLT, FLANGE

95817-08012-00

$5.49

13

HOUSING, SEC SHAFT

85G-47561-00-00

Unavailable

14

BEARING(85G)

93306-00316-00

$35.99

15

BOLT, FLANGE

95817-08012-00

$5.49

16

WASHER

90201-17256-00

Unavailable

17

COLLAR

90387-17009-00

Unavailable

18

BRACKET, MUFFLER 1

85G-21435-01-00

Unavailable

19

BOLT, FLANGE(JN5)

95817-08016-00

Unavailable

20

BOLT, FLANGE(JN5)

95817-08016-00

Unavailable

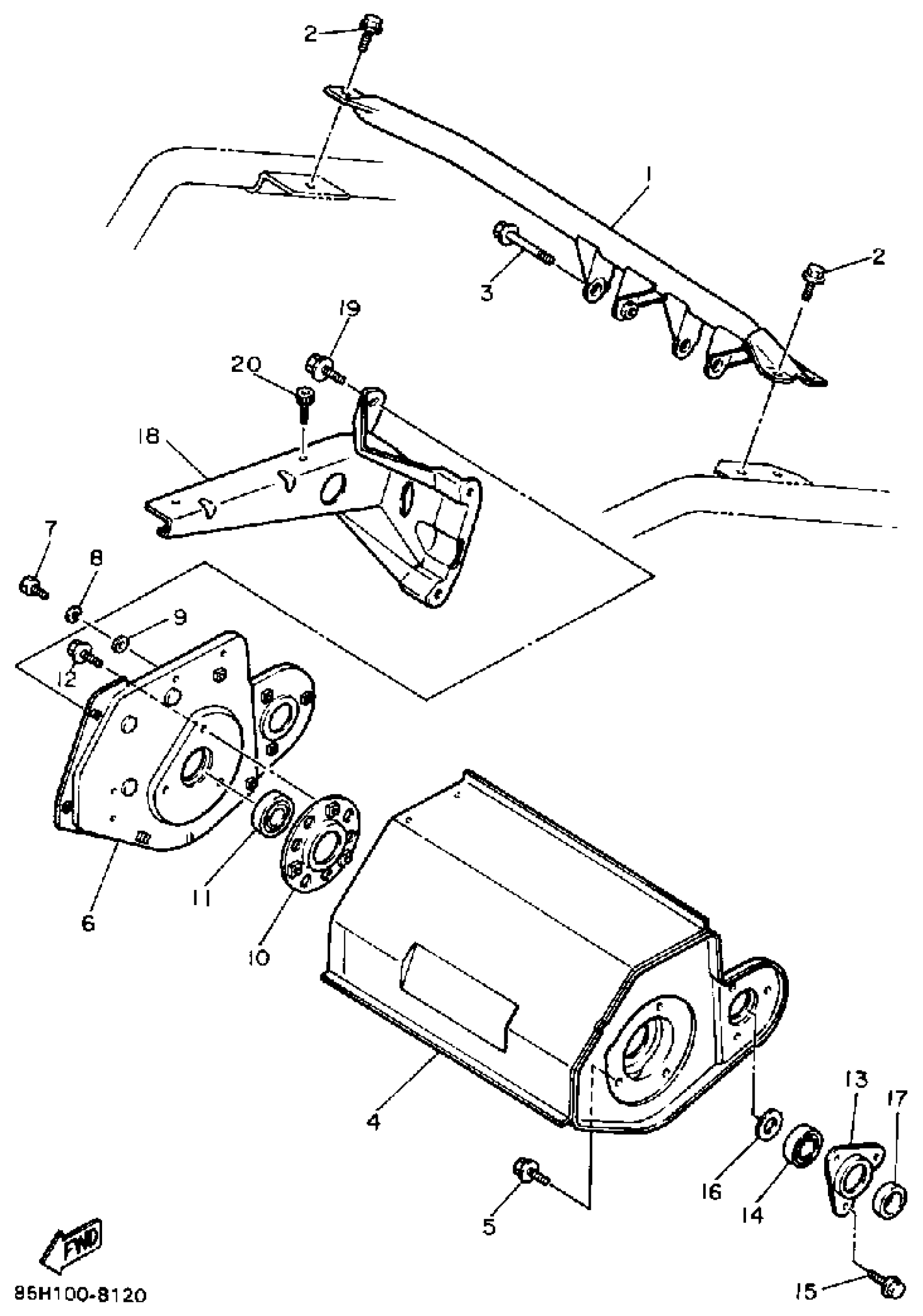

Yamaha SV80EN (SNOSCOOT (ELEC START)) 1989 ENGINE BRACKET Diagram

BRACKET, ENGINE 1

BOLT, FLANGE

BOLT,WASHER BASED

BRACKET, ENGINE 2

BOLT, FLANGE

BRACKET, ENGINE 3

BOLT, HEXAGON

WASHER, SPRING

WASHER(6TA)

HOUSING, FRONT AXLE

BEARING(8AB)

BOLT, FLANGE

HOUSING, SEC SHAFT

BEARING(85G)

BOLT, FLANGE

WASHER

COLLAR

BRACKET, MUFFLER 1

BOLT, FLANGE(JN5)

BOLT, FLANGE(JN5)
