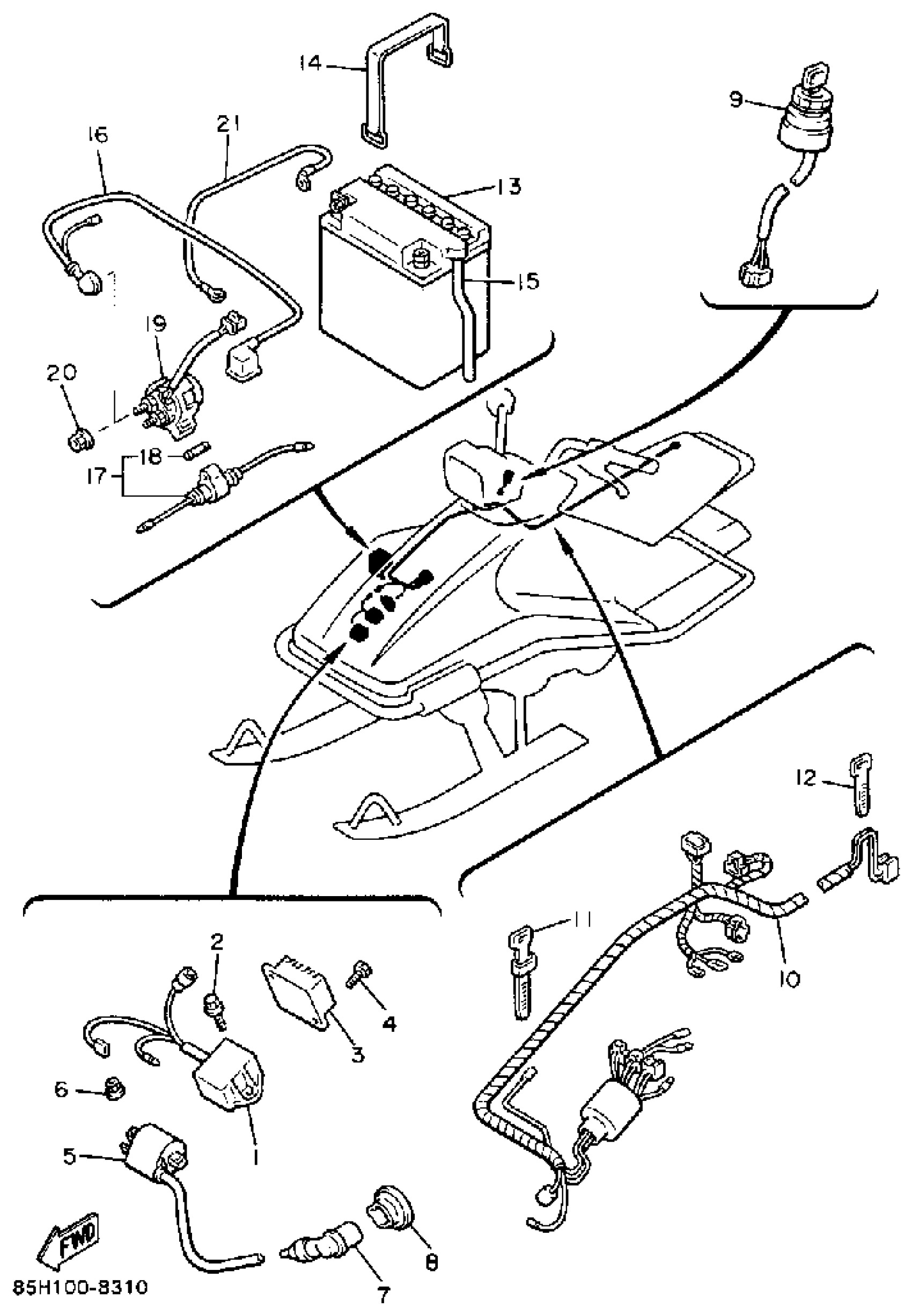

Yamaha SV80EN (SNOSCOOT (ELEC START)) 1989 ELECTRICAL 1 Diagram

#

Description
Price

1

CDI UNIT ASSEMBLY

85G-85540-M0-00

Unavailable

2

BOLT, FLANGE

95817-06016-00

$2.75

3

RECT/REG ASSEMBLY

85G-81960-60-00

Unavailable

4

BOLT(4GV)

97017-05012-00

$8.49

5

IGNITION COIL ASSY

3KJ-82310-13-00

$47.99

6

NUT, FLANGE(7NB)

95780-06500-00

$2.60

7

PLUG CAP ASSY

85G-82370-20-00

$34.99

8

SEAL, PLUG CAP

5G3-82372-00-00

Unavailable

9

MAIN SWITCH ASSY

8K1-82510-21-00

Unavailable

10

WIRE HARNESS ASSEMBLY

85H-82590-20-00

Unavailable

11

BAND, SWITCH CORD

437-83936-11-00

$4.63

12

BAND, SWITCH CORD

437-83936-01-00

$7.99

13

YB7LB YUASA BATTERY

YB7-LB000-00-00

Unavailable

14

BAND

8R4-2811G-00-00

Unavailable

15

HOSE

(90445-08045-00)

Unavailable

16

WIRE, PLUS LEAD

2RE-82115-00-00

Unavailable

17

FUSE HOLDER ASSEMBLY

2J2-82150-10-00

Unavailable

18

FUSE

682-82151-02-00

Unavailable

19

STARTER RELAY ASSY (MS5D-611)

4KD-81940-00-00

Unavailable

20

NUT, FLANGE(7NB)

95780-06500-00

$2.60

21

WIRE,MINUS LEAD

87B-82116-00-00

Unavailable
