Description

Price

1

KICK SHAFT ASSEMBLY

85G-15601-00-00

Unavailable

2

SPRING, TORSION (32N)

90508-32609-00

$14.99

3

BUSH, SOLID

90380-15817-00

Unavailable

4

WASHER, PLATE (5G3)

90201-154E9-00

$9.49

5

CIRCLIP(1AR)

99009-15400-00

$8.49

6

KICK CRANK ASSY

3KJ-15620-02-00

Unavailable

7

COVER, KICK LEVER

156-15618-01-00

$7.99

8

BOLT, HEXAGON

97017-06025-00

$4.24

9

KICK PINION ASSY

85G-15630-03-00

$81.99

10

BUSH, SOLID(85G)

90380-08201-00

$17.99

11

CLIP

32N-15673-00-00

Unavailable

12

WHEEL, STARTER (66T)

17M-15524-00-00

Unavailable

13

BEARING(85G)

93306-00316-00

$35.99

14

CIRCLIP

93450-35163-00

$4.25

15

HOLDER

17M-15118-00-00

Unavailable

16

SCREW, FLAT

98707-06014-00

Unavailable

17

STARTER CLUTCH ASSY

24G-15570-01-00

Unavailable

18

WASHER, PLATE (14T)

90201-163F8-00

Unavailable

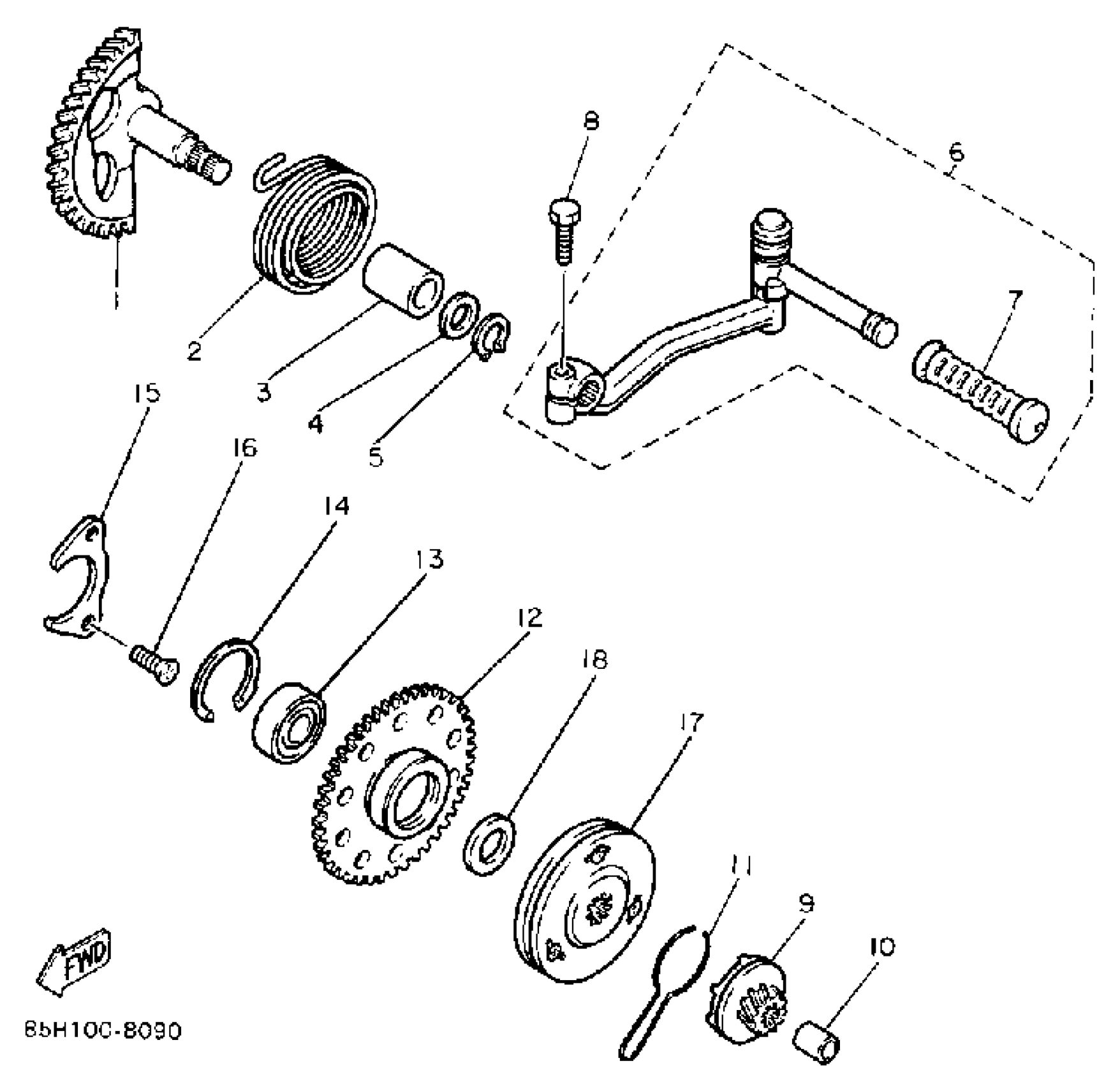

Yamaha SV80EM (SNOSCOOT (ELEC START)) 1988 STARTER Diagram

KICK SHAFT ASSEMBLY

SPRING, TORSION (32N)

BUSH, SOLID

WASHER, PLATE (5G3)

CIRCLIP(1AR)

KICK CRANK ASSY

COVER, KICK LEVER

BOLT, HEXAGON

KICK PINION ASSY

BUSH, SOLID(85G)

CLIP

WHEEL, STARTER (66T)

BEARING(85G)

CIRCLIP

HOLDER

SCREW, FLAT

STARTER CLUTCH ASSY

WASHER, PLATE (14T)
