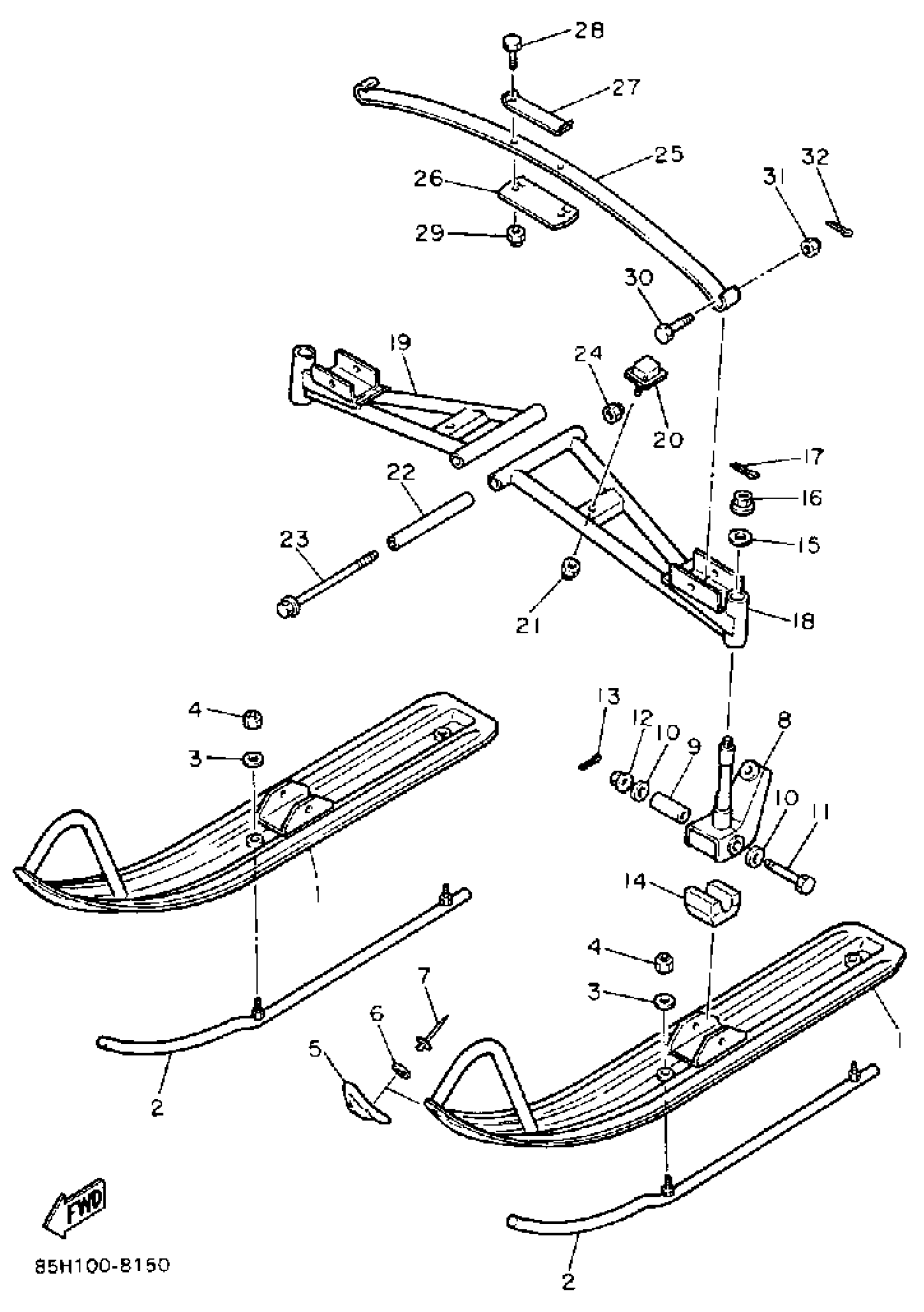

Yamaha SV80EM (SNOSCOOT (ELEC START)) 1988 SKI Diagram
#
1
SV80 SKI KIT
9999S-V8000-00
Unavailable
2
SKI RUNNER, (SV80)
853-23731-00-XX
Unavailable
3
WASHER, CONICAL SPRING
90208-08011-00
Unavailable
4
NUT, NYLON
95717-08300-00
$2.70
5
PROTECTOR, SKI
867-23747-00-00
Unavailable
6
WASHER, PLATE (820-77116-00)
90201-04023-00
$2.87
7
RIVET, BLIND (8K1)
90267-40076-00
$8.49
8
COLUMN,SKI 1
85G-23853-01-00
Unavailable
9
COLLAR
90387-082U2-00
Unavailable
10
WASHER (853)
90201-08326-00
$8.49
11
BOLT, W/HOLE
90102-08065-00
Unavailable
12
NUT, NYLON
95717-08300-00
$2.70
13
PIN, COTTER
91490-20025-00
$1.99
14
STOPPER 1
87A-23743-00-00
Unavailable
15
WASHER, PLATE (4W3)
90201-086A3-00
$8.49
16
NUT, SELF-LOCKING
90185-08169-00
Unavailable
17
PIN, COTTER
91490-20025-00
$1.99
18
ARM,FRONT 1
85G-2382E-01-00
Unavailable
19
ARM, FRONT 2
85G-2382F-01-00
Unavailable
20
STOPPER, BRAKE PEDL
81E-21449-00-00
Unavailable
21
NUT
90185-08055-00
Unavailable
22
COLLAR
90387-106T5-00
Unavailable
23
BOLT,FLANGE
95827-10175-00
Unavailable
24
NUT, NYLON
95707-10300-00
Unavailable
25
LEAF 1
85G-23761-00-00
Unavailable
26
SEAT, SPRING 1
85G-23768-00-00
Unavailable
27
WASHER, ROCK (8J5)
90215-10155-00
Unavailable
28
. BOLT
90109-105E1-00
Unavailable
29
NUT, SELF-LOCKING (8J8)
90185-10085-00
Unavailable
30
BOLT PIN HOLE HEXAGON(8E6)
90102-08028-00
Unavailable
31
NUT, U
95617-08100-00
Unavailable
32
PIN, COTTER
91490-20025-00
$1.99
