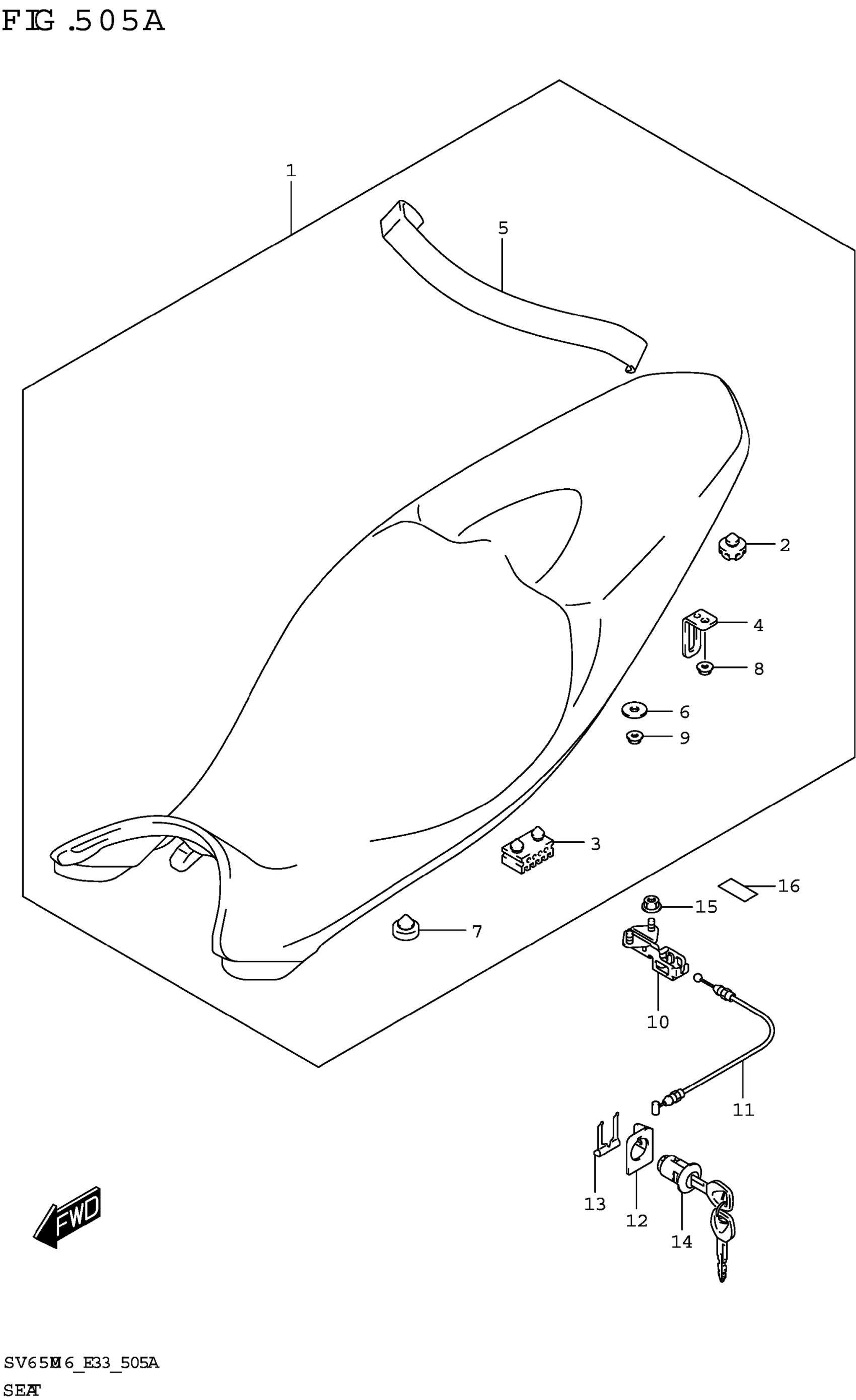

Suzuki SV650AM6(E33) (2026) SEAT Diagram

#

Description
Price

1

SEAT ASSY (BLACK)

45100-18K03-BBC

$295.05

2

.CUSHION

45148-20G90

$5.55

3

.CUSHION,SEAT (40X20X15)

45149-31300

$3.56

4

.STRIKER,SEAT LOCK

45212-18K00

$9.63

5

.BAND,SEAT GRIP (BLACK)

45380-18K01-P3H

$20.47

6

.WASHER (6.5X20X1.6)

09160-06088

$1.65

7

CUSHION

09321-10012

$2.92

8

NUT (6X12)

08316-1006A

$2.19

9

NUT (6X12)

08316-1006A

$2.19

10

BRACKET,STRIKER SUPPORT

45220-04K20

$31.88

11

CABLE,SEAT LOCK

45280-18K00

Unavailable

12

GUIDE,SEAT LOCK CABLE

45288-14F00

$5.36

13

PLATE,SEAT LOCK ASSY

45289-11F00

$6.20

14

LOCK SET,SEAT

95700-14810

$107.30

15

NUT (6X12)

08316-1006A

$2.19

16

PROTECTOR

94432-19F00

Unavailable
