2026 Suzuki SV650AM6(E33) Rear Caliper Diagram

← All diagrams

Find the part on the Rear Caliper diagram for your 2026 Suzuki SV650AM6(E33), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

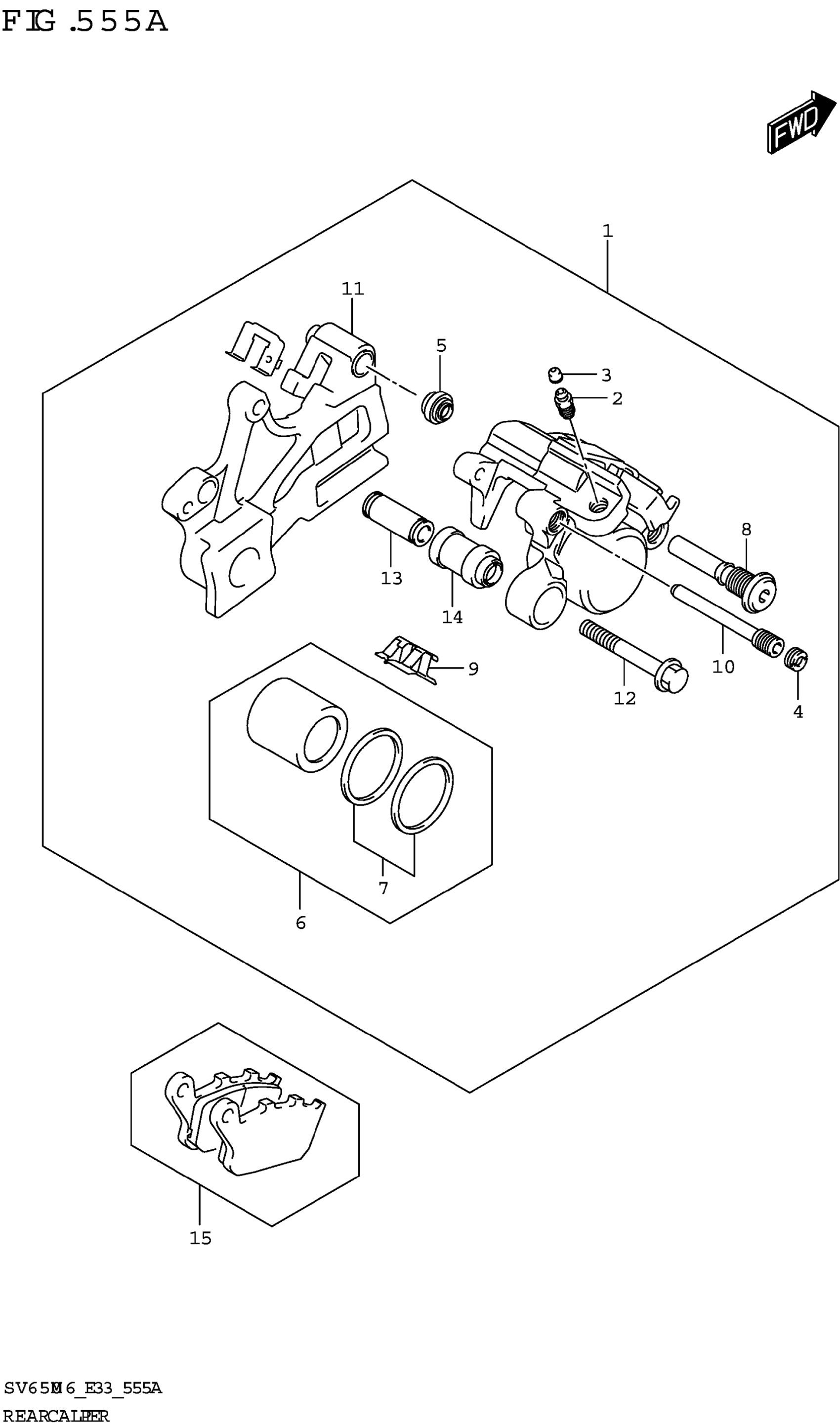

2026 Suzuki SV650AM6(E33) Rear Caliper Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CALIPER ASSY,REAR

69100-18K00-999

1
Out of stock

2

.BLEEDER

59121-01A00

1
Out of stock

3

.CAP,BLEEDER

59122-46H00

1
Out of stock

4

.PLUG,PIN

59146-21E10

1

$6.13

In stock

5

.BOOT

59303-14500

1
Out of stock

6

.PISTON SET

69101-44860

1
Out of stock

7

..SEAL SET,PISTON

69100-04820

1
Out of stock

8

.PIN,BOLT

59305-36E00

1

$18.66

In stock

9

.SPRING,PAD

69115-06G00

1
Out of stock

10

.PIN,PAD

69141-40F00

1
Out of stock

11

.BRACKET

69150-18K00

1
Out of stock

12

.BOLT

69182-04F00

1
Out of stock

13

.SLEEVE

69185-04F00

1
Out of stock

14

.BOOT,SLEEVE

69186-04F00

1
Out of stock

15

.PAD SET

69101-44850

1
Out of stock
