2026 Suzuki SV650AM6(E33) Front Brake Hose Diagram

← All diagrams

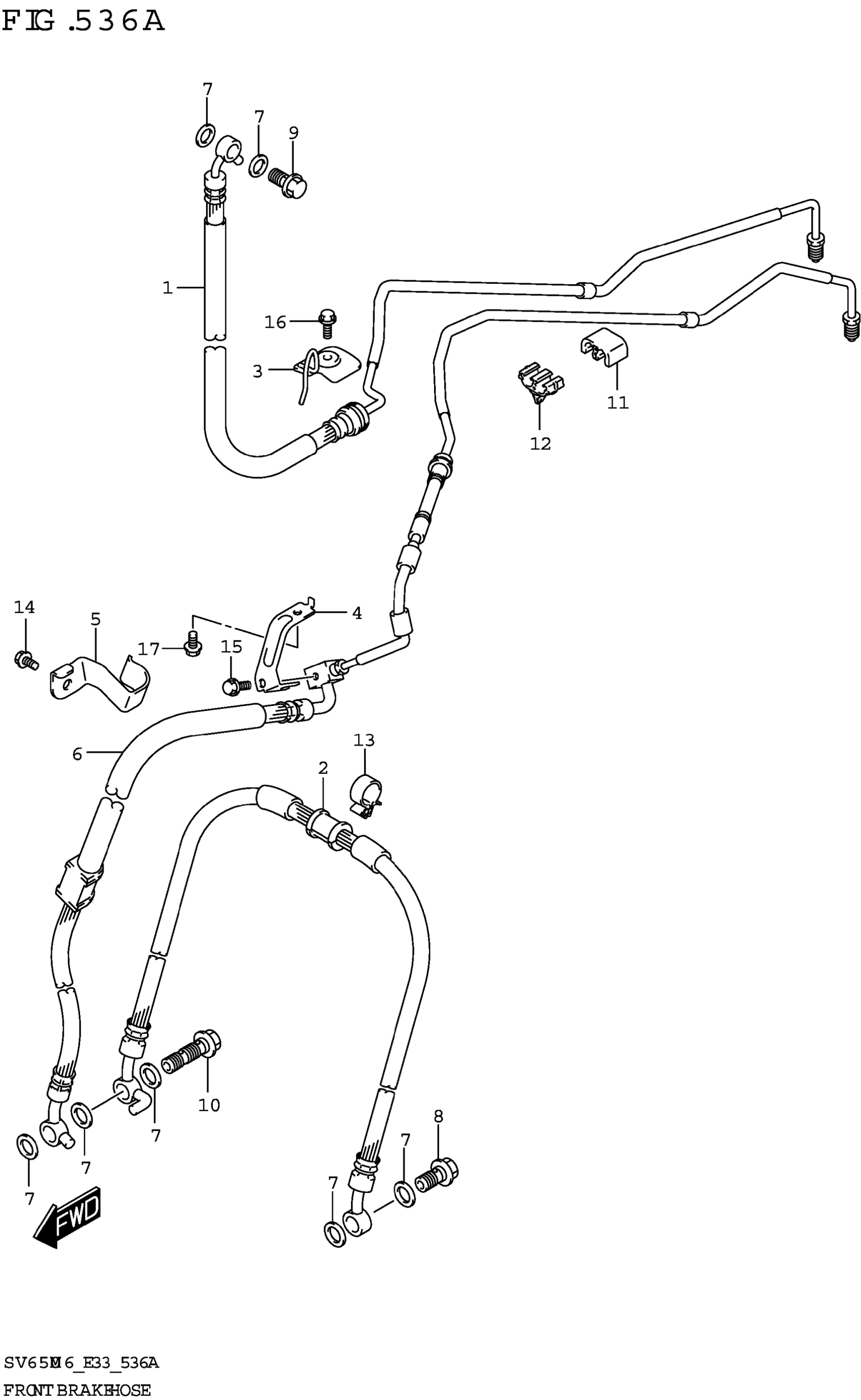

Find the part on the Front Brake Hose diagram for your 2026 Suzuki SV650AM6(E33), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2026 Suzuki SV650AM6(E33) Front Brake Hose Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HOSE ASSY,FR BK MASTER TO UNI

59200-18K61

1
Out of stock

2

HOSE,FR BK CLPR TO CLPR

59240-18K21

1
Out of stock

3

CLAMP,FR BK HOSE ASSY NO.1

59251-18K00

1
Out of stock

4

CLAMP,FR BK HOSE ASSY NO.2

59261-18K00

1
Out of stock

5

CLAMP,FR BRAKE HOSE NO.2

59263-44H10

1
Out of stock

6

HOSE ASSY,UNIT TO FR BK CLPR

59400-18K21

—
Out of stock

7

WASHER (10X15X1.5)

09161-10009

7
Out of stock

8

UNION (10X1.25X22)

09360-10062

1
Out of stock

9

UNION This part replaces 09360-10042.

09360-10062

1
Out of stock

10

UNION (10X1.25X36)

09360-10064

1
Out of stock

11

CLAMP

09403-06324

2
Out of stock

12

CLAMP

09403-07344

2
Out of stock

13

CLAMP

09403-16412

1
Out of stock

14

BOLT (6X12)

09103-06525

1
Out of stock

15

BOLT (6X16)

09103-06526

1
Out of stock

16

BOLT (6X16)

09103-06526

1
Out of stock

17

BOLT

01550-0612A

1
Out of stock
