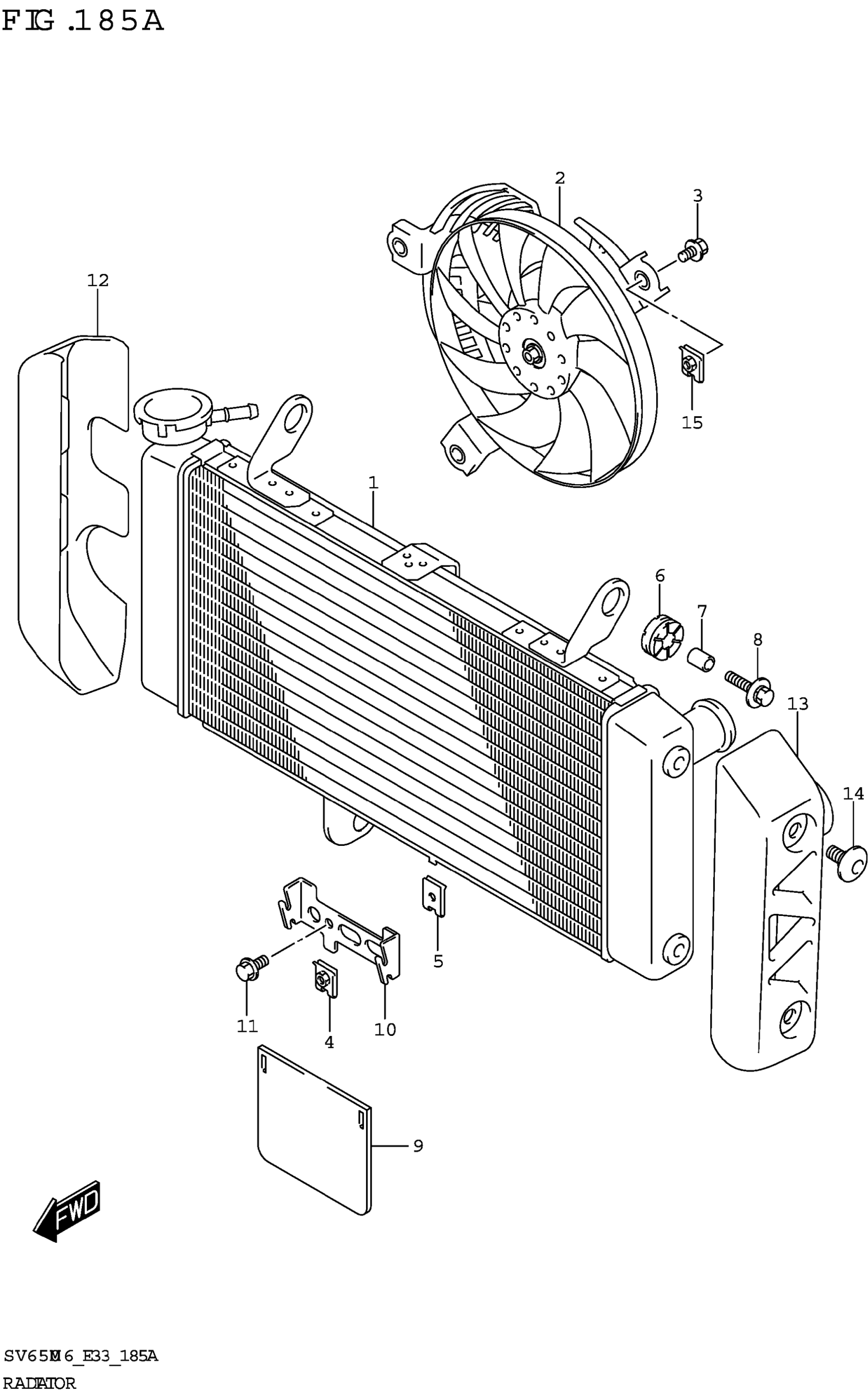

Suzuki SV650AM6(E33) (2026) RADIATOR Diagram

#

Description
Price

1

RADIATOR ASSY,WATER

17710-18K00

$738.92

2

FAN ASSY,RADIATOR

17800-18K00

$542.18

3

BOLT

01550-0616A

$1.97

4

NUT,RADIATOR FAN

17802-14F00

$3.38

5

NUT

17802-45G00

$4.10

6

CUSHION

09320-10051

$2.99

7

SPACER (6.5X10X12)

09180-06290

$2.35

8

BOLT (6X25)

09118-06097

$2.50

9

RUBBER,RADIATOR UNDER

17781-17G00

$9.90

10

BRACKET,RDTR UNDER RUBBER

17741-17G00

$5.77

11

BOLT

01547-0610A

$2.45

12

COVER,RADIATOR RH

17761-18K00

$13.61

13

COVER,RADIATOR LH

17762-18K00

$13.61

14

SCREW (6X12)

09139-06183

$2.85

15

NUT

17802-12K00

$5.30
