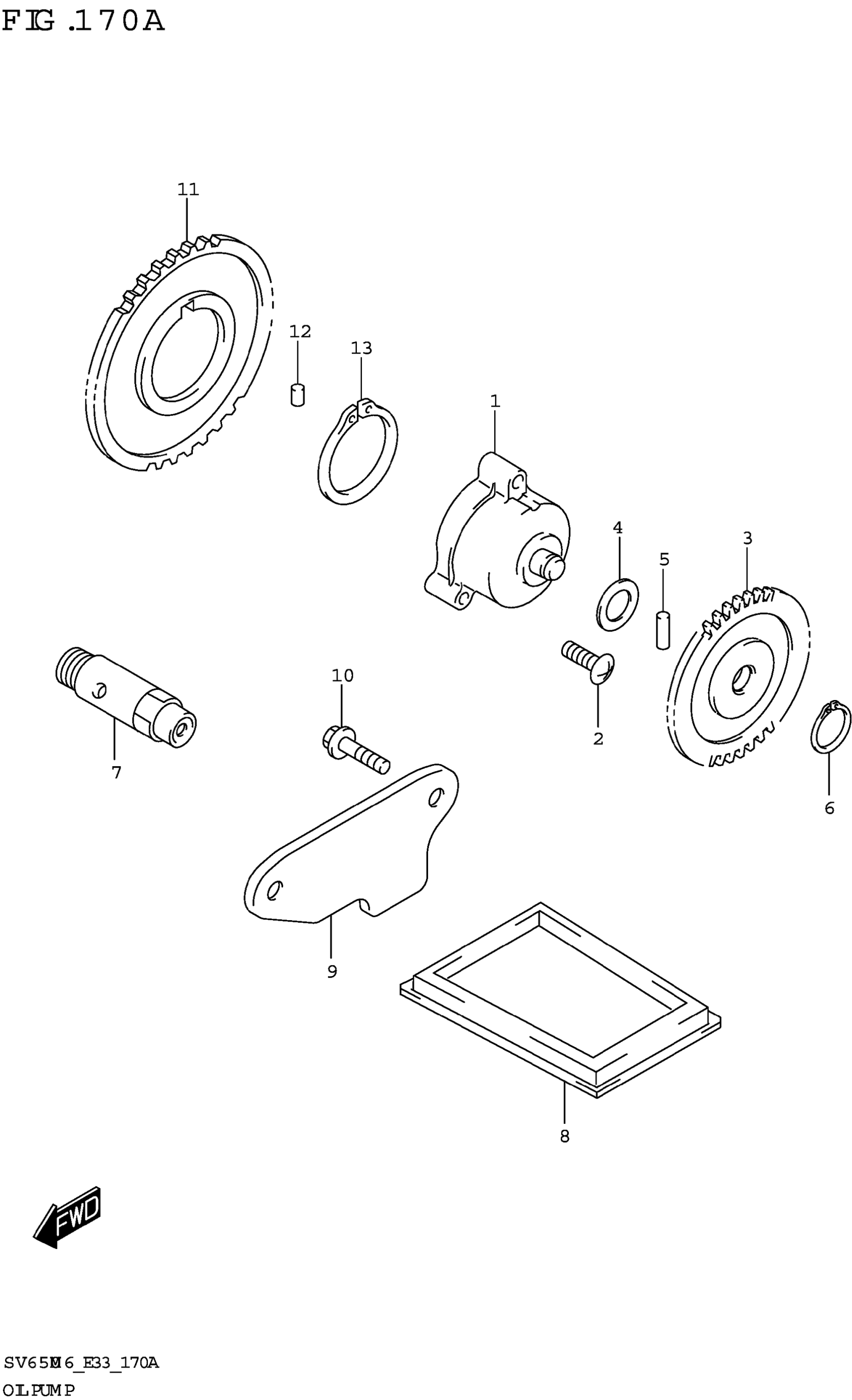

Suzuki SV650AM6(E33) (2026) OIL PUMP Diagram

#

Description
Price

1

PUMP ASSY,ENG OIL

16400-20F00

$208.38

2

BOLT (6X25)

07130-0625A

$2.62

3

GEAR,ENG OIL PUMP DRIVEN (NT: | 4)

16331-19F00

$34.55

4

SHIM (10X18X0.5)

09181-10158

$1.97

5

PIN (4X18.5)

09261-04001

$1.72

6

CIRCLIP

08331-31109

$1.78

7

VALVE ASSY,OIL RELIEF

16440-17C20

$63.47

8

STRAINER,ENG OIL

16520-32E01

$13.10

9

CAP,OIL STRAINER

16523-17G00

Unavailable

10

BOLT

07130-0612A

$2.50

11

GEAR,ENG OIL PUMP DRIVE (NT:4 | )

16321-19F00

Unavailable

12

PIN (6X6)

09261-06002

$1.53

13

CLIP

08331-31383

$3.42
