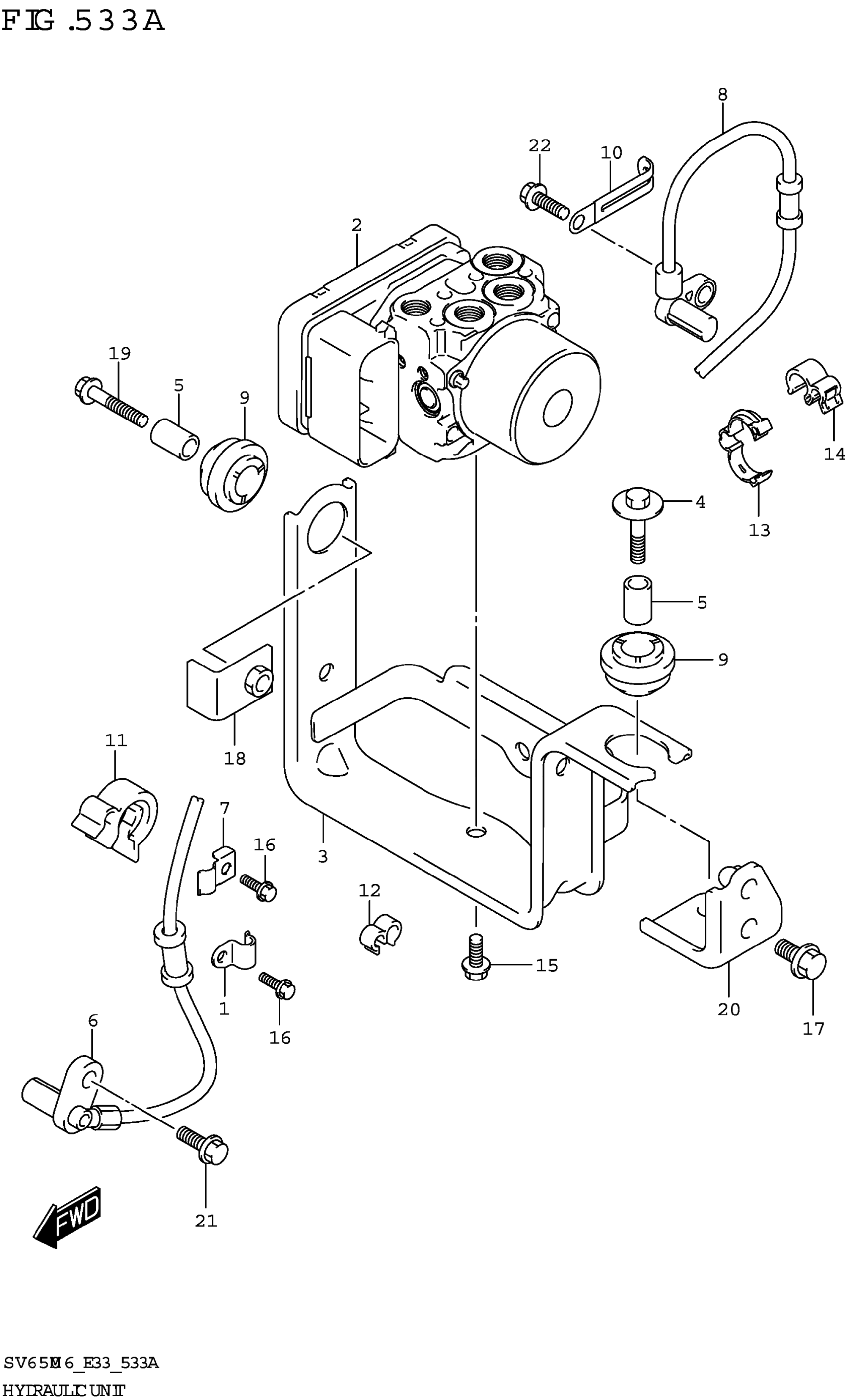

Suzuki SV650AM6(E33) (2026) HYDRAULIC UNIT Diagram

#

Description
Price

1

CLAMP,ABS SENSOR FR

55731-15H00

$4.83

2

UNIT ASSY,HYDRAULIC ABS

55610-18K11

$902.90

3

HOLDER,HYDR UNIT ABS

55660-18K10

$38.63

4

BOLT (6X26.5)

09116-06510

Unavailable

5

SPACER,HYDR UNIT MTG (#05)

55662-10G00

Unavailable

6

SENSOR,FR WHEEL SPEED

55710-18K20

$217.78

7

CLAMP,SENSOR LEAD FR NO.3

55733-44H00

Unavailable

8

SENSOR,RR WHEEL SPEED

65710-18K10

$109.93

9

RUBBER

09320-10066

$4.82

10

CLAMP (L:45)

09404-06429

$1.83

11

CLAMP

09408-00307

$2.97

12

CLIP

09408-00101

$3.13

13

CLAMP

09408-00259

Unavailable

14

CLAMP

09408-00266

$2.51

15

BOLT

01550-0612A

$1.97

16

BOLT (6X12)

09103-06525

$1.49

17

BOLT

01550-0612B

$2.39

18

NUT,RUBBER UNIT MTG

55680-18K00

$6.17

19

BOLT (6X30)

09103-06529

$1.96

20

BRACKET,ABS UNIT HOLDER

55670-18K00

$18.25

21

BOLT (6X16)

09103-06526

$1.71

22

BOLT (6X16)

09103-06526

$1.71
