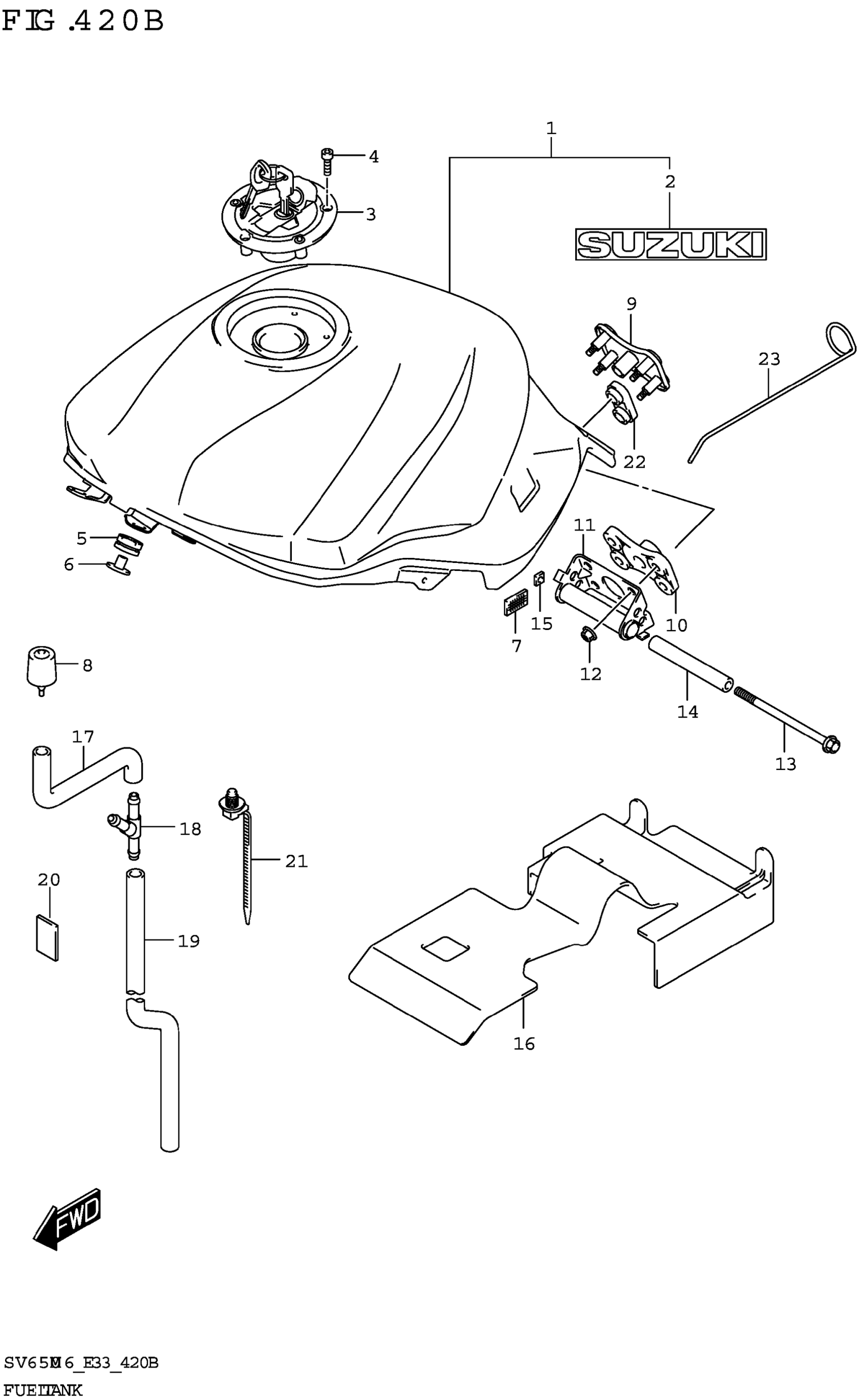

Suzuki SV650AM6(E33) (2026) FUEL TANK Diagram

#

Description
Price

1-1

TANK ASSY,FUEL (BLACK) | BODY COLOR:YKV

44100-18K71-4TX

$800.25

1-2

TANK ASSY,FUEL (BLUE) | BODY COLOR:CGJ

44100-18K61-YKY

$881.75

1-3

TANK ASSY,FUEL (GREEN) | BODY COLOR:C2L

44100-18K71-QU5

$800.25

2-1

.EMBLEM,"SUZUKI" | ) BODY COLOR:YKV

68111-47C20-C4D

$18.45

2-2

.EMBLEM,SUZUKI (SILVER) | BODY COLOR:CGJ

68111-47C10-YD8

$22.97

2-3

.EMBLEM,"SUZUKI" (SILVER,GREE | ) BODY COLOR:C2L

68111-47C20-CJG

$18.45

3

CAP SET,FUEL TANK FILLER

44200-17850

$145.35

4

BOLT,FUEL TANK FILLER CAP

44244-11J00

$4.00

5

CUSHION,FUEL TANK FRONT

44511-18K00

$6.47

6

SPACER,FUEL TANK FRONT

44512-04K00

$7.07

7

FASTENER (33X25X2.6)

44572-13G00

$11.07

8

CUSHION,FUEL TANK RR

44542-29G01

$7.72

9

BRACKET,FUEL TANK RR UP

44570-16G00

Unavailable

10

CUSHION,FUEL TANK RR LWR

44542-18K00

$17.95

11

BRACKET,FUEL TANK RR

44530-44H00

Unavailable

12

NUT

08319-3106A

$2.03

13

BOLT (6X100)

09103-06060

$2.50

14

SPACER,FUEL TANK

44561-35F00

$13.88

15

NUT

08318-1106A

Unavailable

16

SHEET,HEAT SHIELD RUBBER

44191-18K00

$57.25

17

HOSE,FUEL TANK DRAIN NO.1

44423-18K01

$9.62

18

JOINT,DRAIN HOSE

09367-08010

Unavailable

19

HOSE,FUEL TANK DRAIN NO.2

44423-18K11

$23.25

20

SHIELD,DRAIN HOSE HEAT

44427-18K10

$17.18

21

CLAMP (L:170)

09407-17403

$4.91

22

CUSHION,FUEL TANK RR UPR

44541-18K00

Unavailable

23

STAY, FUEL TANK

44560-23H00

$44.95
