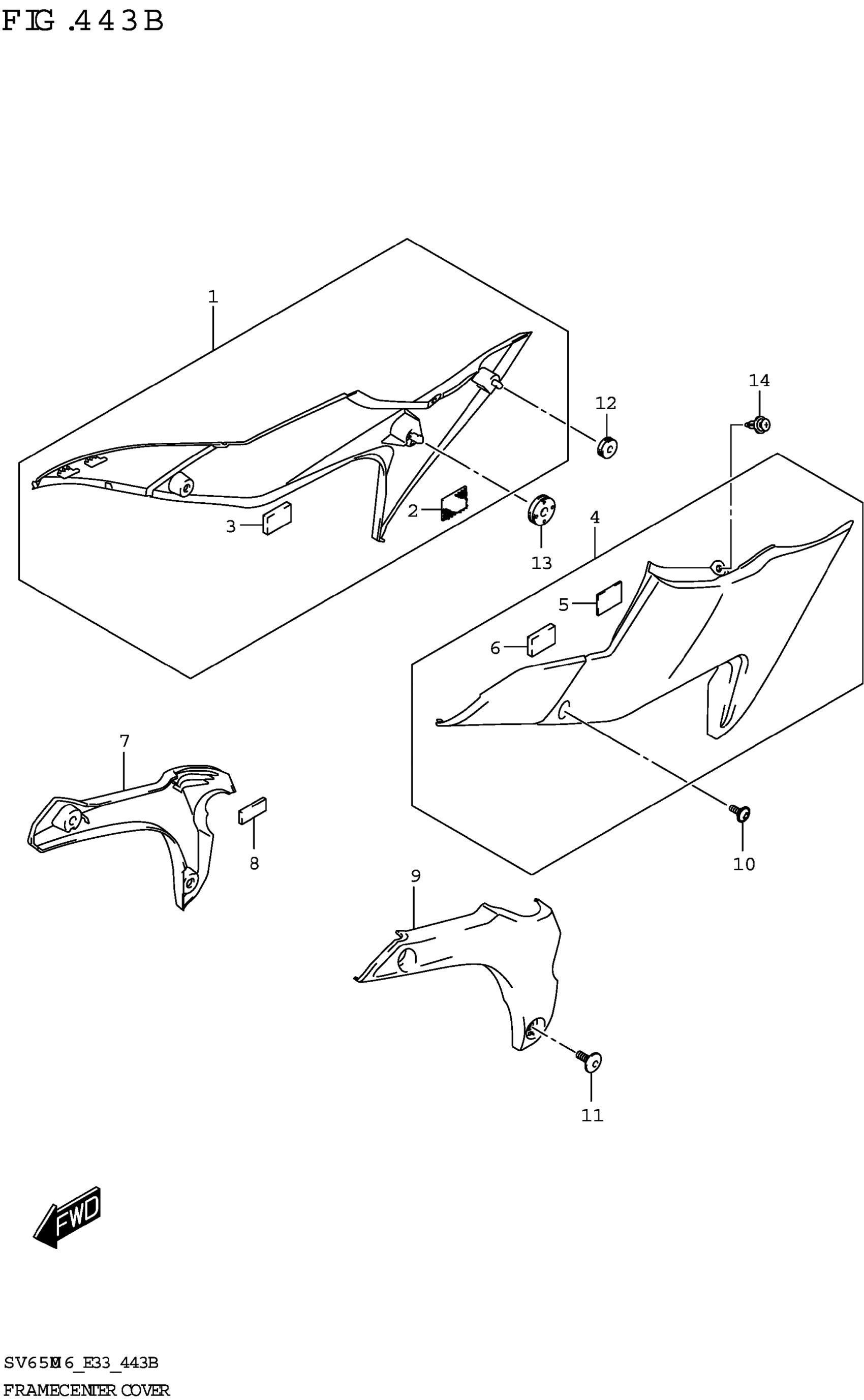

Suzuki SV650AM6(E33) (2026) FRAME CENTER COVER Diagram

#

Description

Price

1

COVER,FRAME FRONT,R

47110-18K00

$113.17

2

FASTENER (33X25X2.6)

44572-13G00

$11.07

3

CUSHION This part replaces 63411-35B00.

51827-01A00

$6.17

4

COVER,FRAME,L

47210-18K00

$113.17

5

FASTENER (33X25X2.6)

44572-13G00

$11.07

6

CUSHION This part replaces 63411-35B00.

51827-01A00

$6.17

7

COVER,FRAME LOWER,R (BLACK)

47611-18K00-YKV

$132.07

8

CUSHION (18X43X5)

47613-44H00

$6.80

9

COVER,FRAME LOWER,L (BLACK)

47711-18K00-YKV

$132.07

10

BOLT (5X13)

09139-05074

$2.61

11

SCREW (6X16)

47915-31J00

$2.92

12

CUSHION

09320-06026

$4.10

13

CUSHION (8X26X7)

09320-08028

$3.04

14

CLIP This part replaces 09409-06322.

09409-06322-5PK

$3.10
