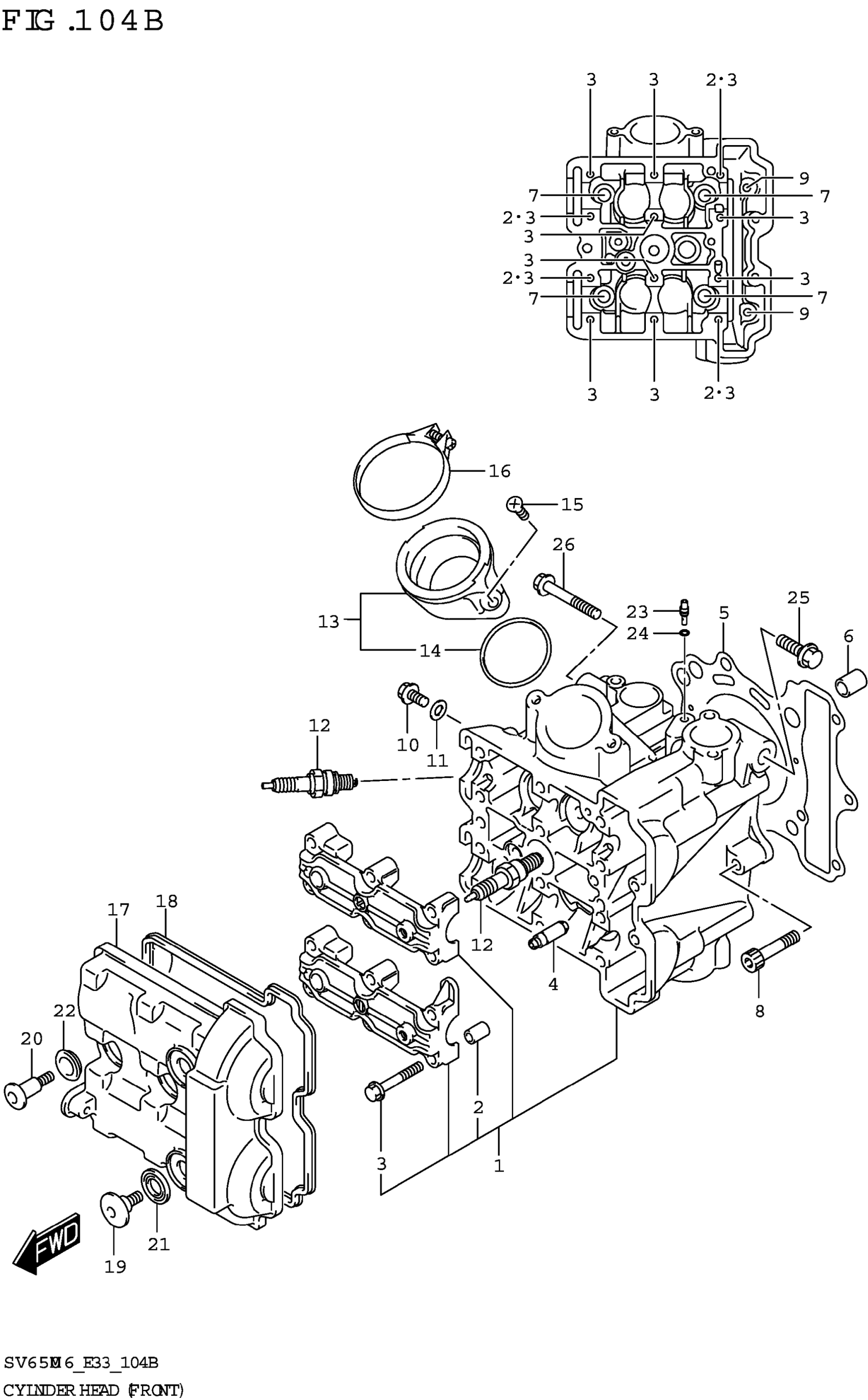

Find the part on the Cylinder Head diagram for your 2026 Suzuki SV650AM6(E33), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2026 Suzuki SV650AM6(E33) Cylinder Head Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HEAD ASSY,CYLINDER FRONT

11101-44H01

1
Out of stock

2

.PIN (8X11)

09206-08001

4
Out of stock

3

.BOLT (6X40)

09103-06266

12
Out of stock

4

GUIDE,VALVE (OS:0.3)

11115-18D72

1
Out of stock

5

.GASKET,CYLINDER HEAD

11141-20F00

1
Out of stock

6

PIN (10.4X13X18)

04211-13189

2
Out of stock

7

BOLT,CYL HEAD (L:160)

11117-44H00

4
Out of stock

8

BOLT

07120-0640A

1
Out of stock

9

BOLT (6X70)

09103-06103

2
Out of stock

10

BOLT

01550-0612A

1
Out of stock

11

GASKET (5.8X13X1.2)

09168-06023

1
Out of stock

12

PLUG,SPARK (MR8E-9)

09482-00646

2
Out of stock

13

PIPE ASSY,INTAKE FRONT

13101-17G11

1
Out of stock

14

.O-RING (D:2.4,ID:47X42)

09280-46007

1
Out of stock

15

SCREW

02122-0616B

2
Out of stock

16

CLAMP,INTAKE PIPE

13827-40H01

1
Out of stock

17

COVER,CYLINDER HEAD FR

11171-19F20

1
Out of stock

18

.GASKET,CYLINDER HEAD COVER

11173-19F01

1
Out of stock

19

BOLT (7X17.5)

09106-07021

2
Out of stock

20

BOLT (7X31)

09106-07010

1
Out of stock

21

WASHER,CYL HEAD COVER (10.6X2 | .5X1.6)

11191-27E00

2
Out of stock

22

CUSHION,HEAD COVER BOLT

11192-13E00

1
Out of stock

23

JET (#8)

09493-80005

1
Out of stock

24

O-RING (D:1.2,ID:4)

09280-04004

1

$2.03

In stock

25

BOLT (10X25)

09103-10378

1
Out of stock

26

BOLT

01550-1070A

1
Out of stock
