2026 Suzuki SV650AM6(E33) Crankcase Cover Diagram

← All diagrams

Find the part on the Crankcase Cover diagram for your 2026 Suzuki SV650AM6(E33), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

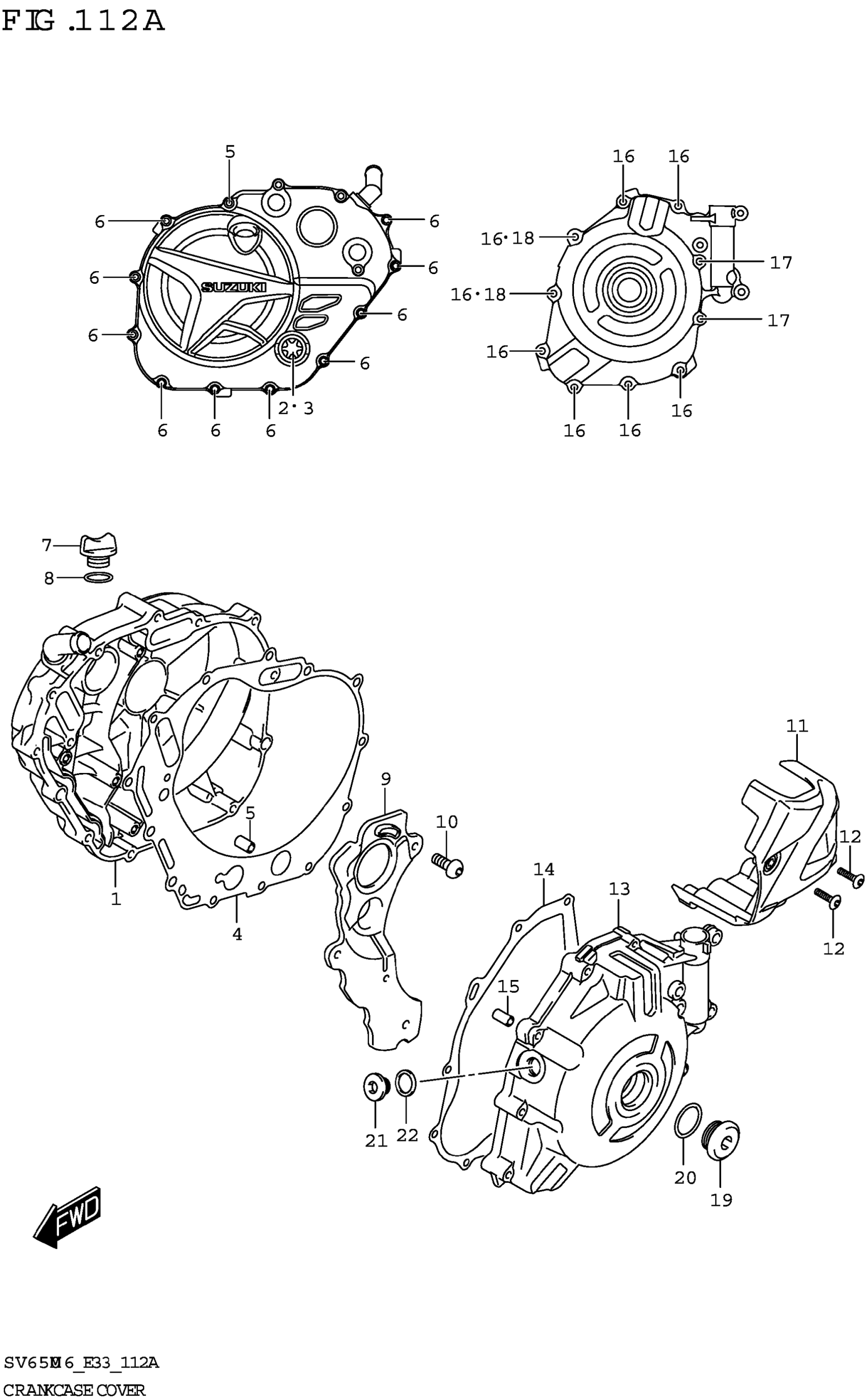

2026 Suzuki SV650AM6(E33) Crankcase Cover Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

COVER,CLUTCH

11340-18K00

1
Out of stock

2

.LENS,OIL LEVEL CHECK

11971-33210

1
Out of stock

3

.CIRCLIP

08331-4130A

1
Out of stock

4

.GASKET,CLUTCH COVER

11482-44H00

1
Out of stock

5

PIN (8.5X18X2.3)

04211-09149

2
Out of stock

6

BOLT (L:35)

09103-06530

11
Out of stock

7

PLUG,ENGINE OIL FILLER

11971-25D00

1
Out of stock

8

O-RING (D:3.1,ID:16.8)

09280-17003

1
Out of stock

9

SEPARATOR,OIL

11343-44H01

1
Out of stock

10

BOLT (6X12)

09106-06098

4
Out of stock

11

COVER,ENG SPROCKET

11360-18K00

1
Out of stock

12

SCREW (6X25)

09139-06029

3
Out of stock

13

COVER,MAGNETO

11351-44H10

1
Out of stock

14

.GASKET,MAGNETO COVER

11483-19F00

1
Out of stock

15

PIN (8.5X18X2.3)

04211-09149

2
Out of stock

16

BOLT (L:35)

09103-06530

8
Out of stock

17

BOLT (L:65)

09103-06536

2
Out of stock

18

GASKET (5.8X13X1.2)

09168-06023

2
Out of stock

19

PLUG

09259-26012

1
Out of stock

20

O-RING (D:3.1,ID:22.7)

09280-22008

1
Out of stock

21

PLUG (16X8)

09248-16012

1
Out of stock

22

GASKET (16X22X2)

09168-16002

1
Out of stock
