2025 Suzuki SV650AM5(E28) Handlebar : ) Diagram

← All diagrams

Find the part on the Handlebar : ) diagram for your 2025 Suzuki SV650AM5(E28), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

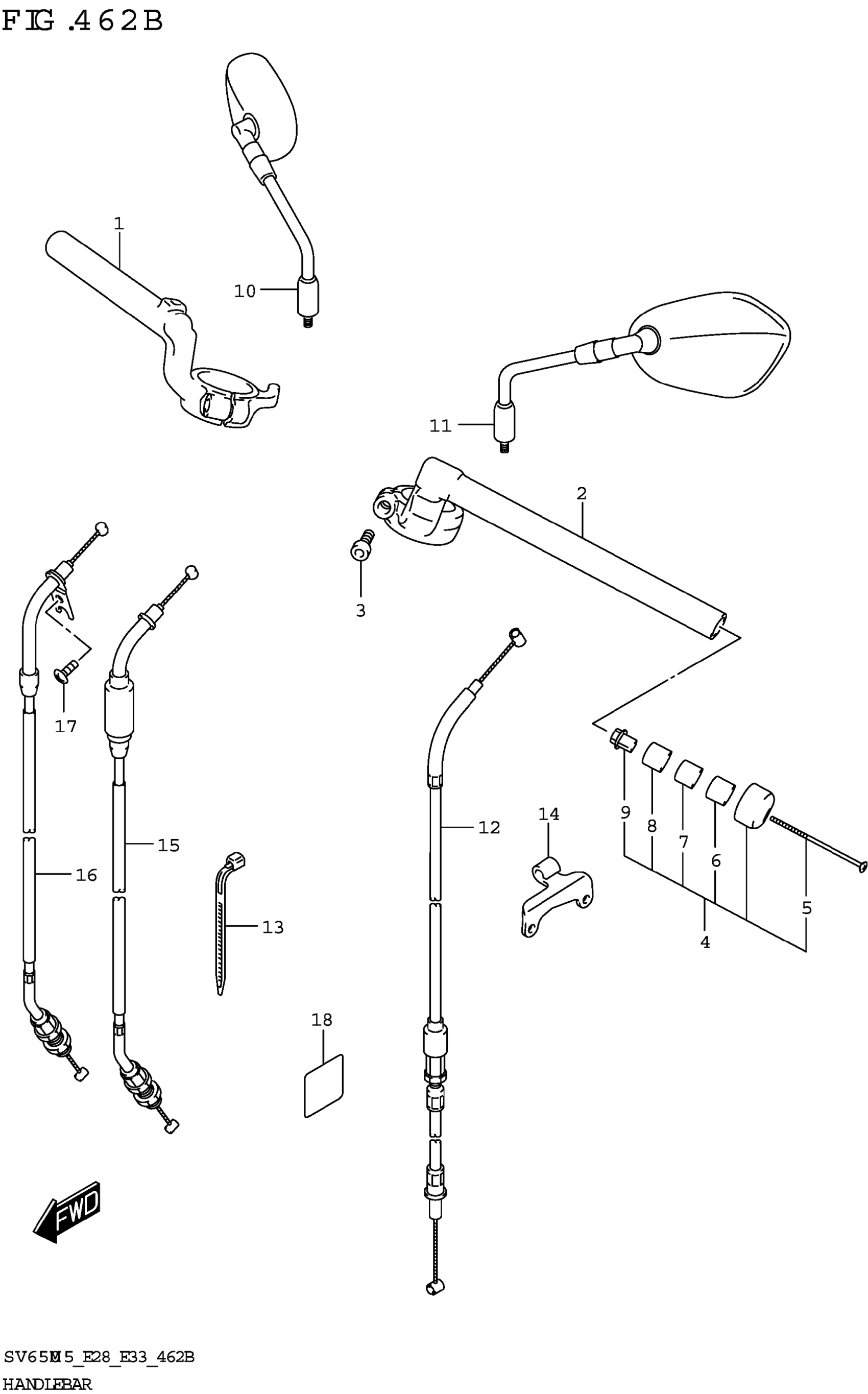

2025 Suzuki SV650AM5(E28) Handlebar : ) Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HANDLEBAR,R

56111-17G20

1
Out of stock

2

HANDLEBAR,L

56151-17G20

1
Out of stock

3

BOLT

07130-0830B

2
Out of stock

4

BALANCER SET,HANDLEBAR

56200-41831

2
Out of stock

5

.SCREW

02122-0670B

2
Out of stock

6

2

$6.15

In stock

7

.SPACER (6.5X16X15)

09180-06161

2
Out of stock

8

.EXPANDER,HANDLE BALANCER

56272-10G01

2
Out of stock

9

.NUT,HANDLE BALANCER

56273-10G10

2
Out of stock

10

MIRROR ASSY,REAR VIEW,R

56500-08J12

1
Out of stock

11

MIRROR ASSY,REAR VIEW,L

56600-08J12

1
Out of stock

12

CABLE ASSY,CLUTCH

58200-18K00

1
Out of stock

13

CLAMP (L:165)

09407-18402

1
Out of stock

14

STOPPER,CLUTCH CABLE

58634-44H00

1
Out of stock

15

CABLE ASSY,THROTTLE NO.1

58300-18K02

1
Out of stock

16

CABLE ASSY,THROTTLE NO.2

58300-18K12

1
Out of stock

17

SCREW

02142-0510B

1
Out of stock

18

PROTECTOR (25X25X0.2)

87873-56K50

1
Out of stock
