2025 Suzuki SV650AM5(E28) Front Wheel ) Diagram

← All diagrams

Find the part on the Front Wheel ) diagram for your 2025 Suzuki SV650AM5(E28), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

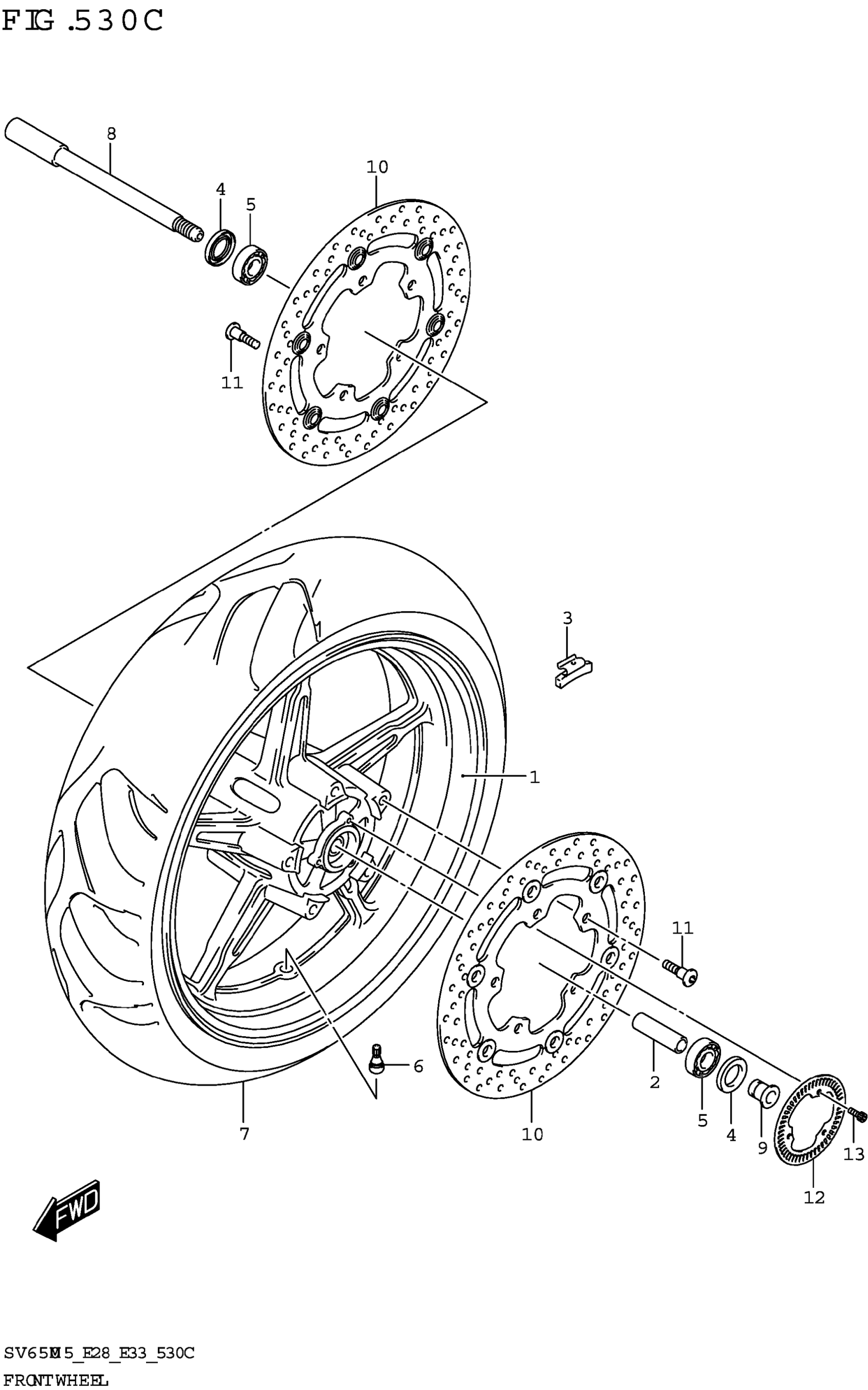

2025 Suzuki SV650AM5(E28) Front Wheel ) Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

WHEEL,FRONT (BLUE)

54111-18K10-YLY

1
Out of stock

2

SPACER,FR HUB BEARING

54731-44H00

1
Out of stock

3-1

BALANCER,WHEEL (10G)

55411-22H00

1
Out of stock

3-2

BALANCER,WHEEL (20G)

55412-22H00

1
Out of stock

3-3

BALANCER,WHEEL (30G)

55413-22H00

1
Out of stock

4

SEAL,OIL (22X40X7)

09285-22004

2
Out of stock

5

BEARING

08123-6203B

2
Out of stock

6

VALVE ASSY,WHEEL RIM (TR412)

43130-24A00

1
Out of stock

7

TIRE,FRONT (120/70ZR17 M/C 58 | )

55110-18K02

1
Out of stock

8

AXLE,FR

54711-08F00

1
Out of stock

9

SPACER,FR AXLE,L

54751-44H00

1
Out of stock

10

DISC,FR BRAKE

59210-38G10

2
Out of stock

11

BOLT (8X21)

09106-08160

10
Out of stock

12

RING,SPEED SENSOR FR (50T)

54162-44H00

1
Out of stock

13

BOLT

07130-0512A

3
Out of stock
