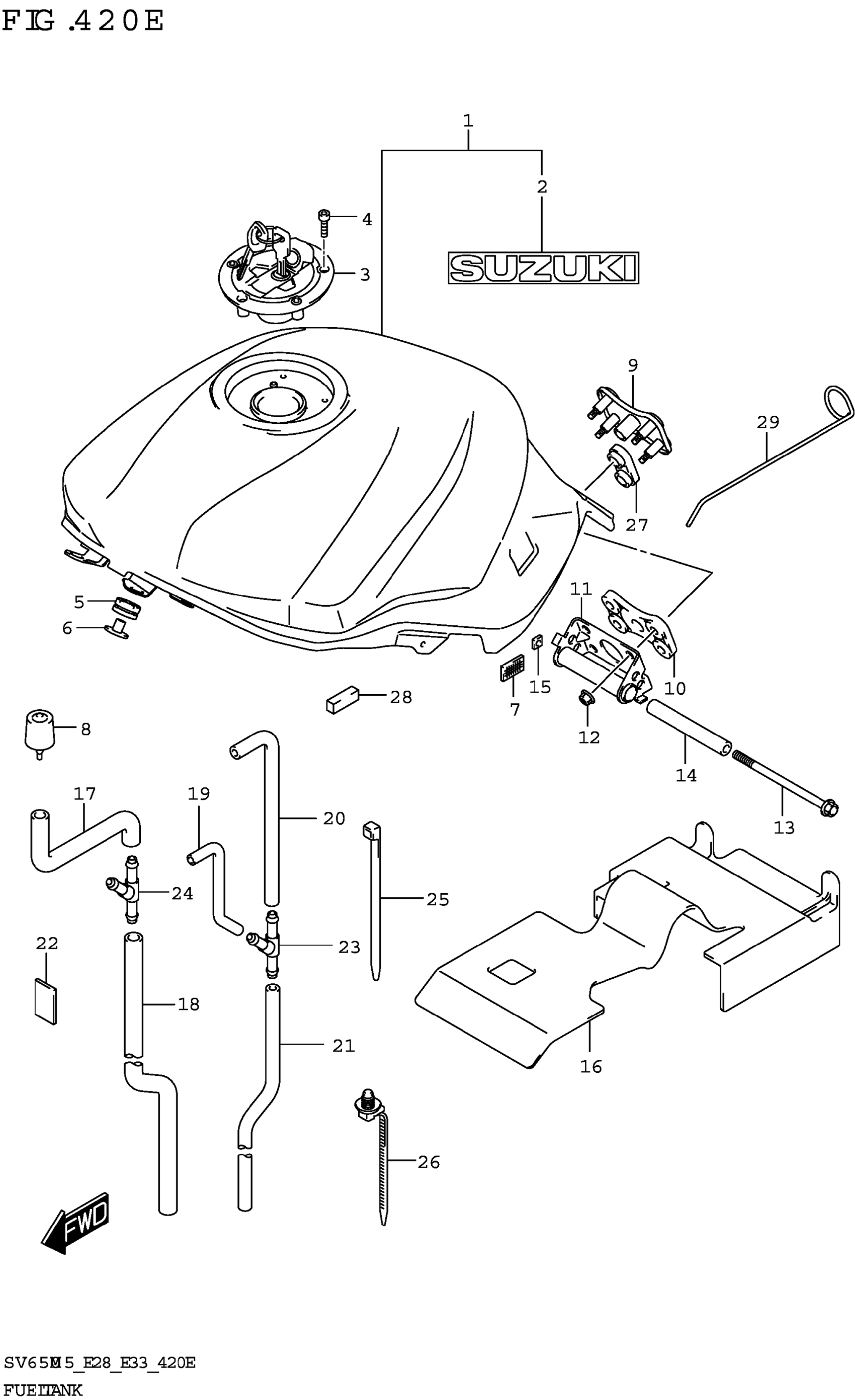

Suzuki SV650AM5(E28) (2025) FUEL TANK (SV650XA:E28) Diagram

#

Description
Price

1

TANK ASSY,FUEL (WHITE)

44100-18K61-QU2

Unavailable

2

.EMBLEM,SUZUKI (BLACK)

68111-47C10-YVB

$11.97

3

CAP SET,FUEL TANK FILLER

44200-17840

$185.23

4

BOLT,FUEL TANK FILLER CAP

44244-11J00

$3.76

5

CUSHION,FUEL TANK FRONT

44511-18K00

$7.30

6

SPACER,FUEL TANK FRONT

44512-04K00

$7.97

7

FASTENER (33X25X2.6)

44572-13G00

$10.13

8

CUSHION,FUEL TANK RR

44542-29G01

$7.27

9

BRACKET,FUEL TANK RR UP

44570-16G00

Unavailable

10

CUSHION,FUEL TANK RR LWR

44542-18K00

$20.25

11

BRACKET,FUEL TANK RR

44530-44H00

Unavailable

12

NUT

08319-3106A

$2.01

13

BOLT (6X100)

09103-06060

$2.61

14

SPACER,FUEL TANK

44561-35F00

$13.06

15

NUT

08318-1106A

Unavailable

16

SHEET,HEAT SHIELD RUBBER

44191-18K00

$64.62

17

HOSE,FUEL TANK DRAIN NO.1

44423-18K01

$10.87

18

HOSE,FUEL TANK DRAIN NO.2

44423-18K11

$26.23

19

HOSE,FUEL TANK BRTHR NO.3

44424-15H11

$15.48

20

HOSE,FUEL TANK BREATHER NO.2

44424-18K02

$10.87

21

HOSE,FUEL TANK BRTHR NO.2

44424-18K11

$26.80

22

SHIELD,DRAIN HOSE HEAT

44427-18K00

Unavailable

23

3 WAY

09367-06007

$3.17

24

JOINT,DRAIN HOSE

09367-08010

Unavailable

25

CLAMP (L:145)

09407-14407

$2.80

26

CLAMP (L:170)

09407-17403

$4.63

27

CUSHION,FUEL TANK RR UPR

44541-18K00

Unavailable

28

CUSHION,TANK COVER (8X25X8)

44281-18K01

$6.08

29

STAY, FUEL TANK

44560-23H00

$50.73
