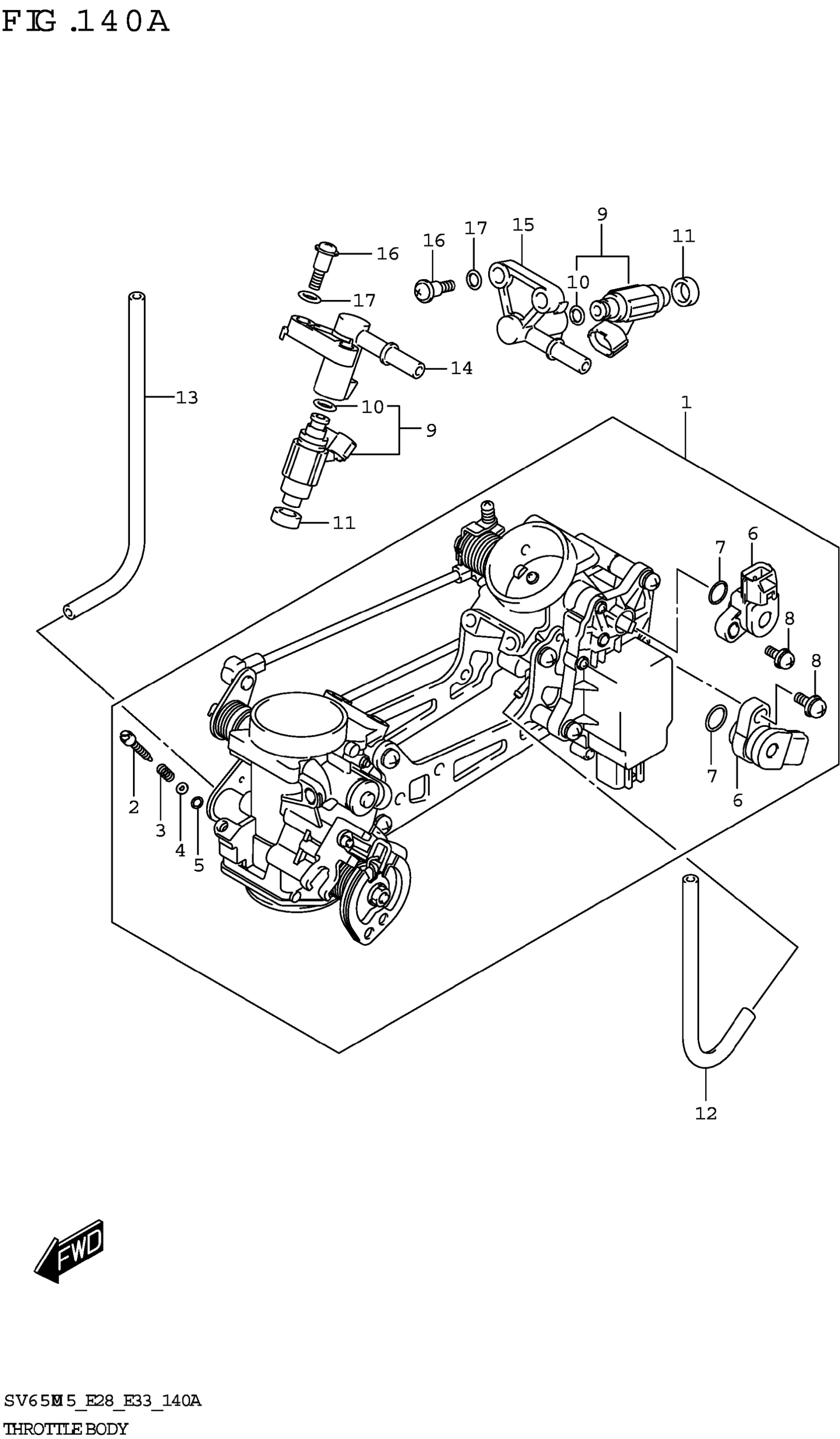

Suzuki SV650AM5(E28) (2025) THROTTLE BODY (E28) Diagram

Description

Price

BODY ASSY,THROTTLE

13405-18K01

$1,260.55

SCREW

13269-33E00

$10.45

SPRING,THROTTLE SCREW

13268-48700

$3.97

WASHER

13606-47A00

$3.70

O-RING

13295-29901

$3.97

.SENSOR

13580-27G21

$163.47

.O-RING

13575-29G01

$2.97

.SCREW

13605-02F00

$3.50

INJECTOR ASSY

15710-11J00

$302.17

.O-RING

15717-58B00

$9.11

SEAL

15722-29G00

$10.01

HOSE

13683-10F71

$12.53

HOSE

13683-01H01

$11.70

DELIVERY PIPE

15731-11J00

Unavailable

DELIVERY PIPE

15732-11J00

Unavailable

SCREW

13601-11J00

$4.51

PACKING

13602-29G01

$2.52
