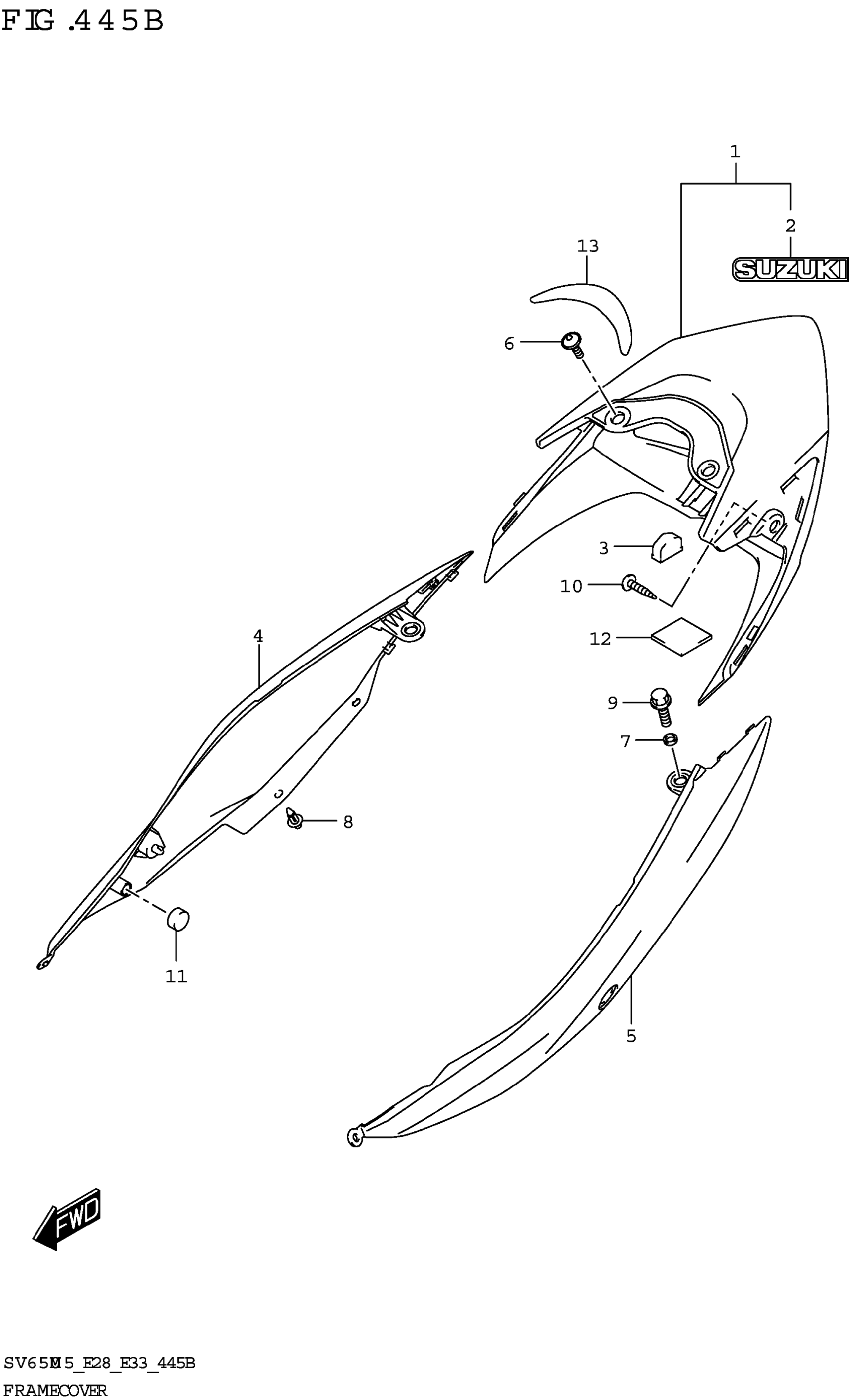

Suzuki SV650AM5(E28) (2025) FRAME COVER ((SV650XA):(E28)) Diagram

COVER,FRAME REAR CTR (BLACK)

47310-18KA1-4UX

Unavailable

.EMBLEM,"SUZUKI" (BLACK,SILVE | )

68171-28H11-CL9

$5.83

CUSHION,FRAME COVER CTR

47315-18K00

$12.73

COVER,FRAME REAR,R (WHITE)

47411-18KA2-QU2

Unavailable

COVER,FRAME REAR,L (WHITE)

47511-18KA2-QU2

Unavailable

BOLT (5X13)

09139-05074

$2.61

SPACER (8.5X12X2.5)

09180-08052

Unavailable

CLIP This part replaces 09409-06314.

09409-06314-5PK

$2.78

BOLT (8X12)

01550-0812A

$2.32

SCREW

03541-0510A

$1.49

CUSHION (14X20X9)

09329-14003

$2.72

PROTECTOR (50X50X5) This part replaces 33652-24B00.

33652-20C00

$2.99

TAPE,FRAME COVER RR CTR

47312-18K00

$11.53
