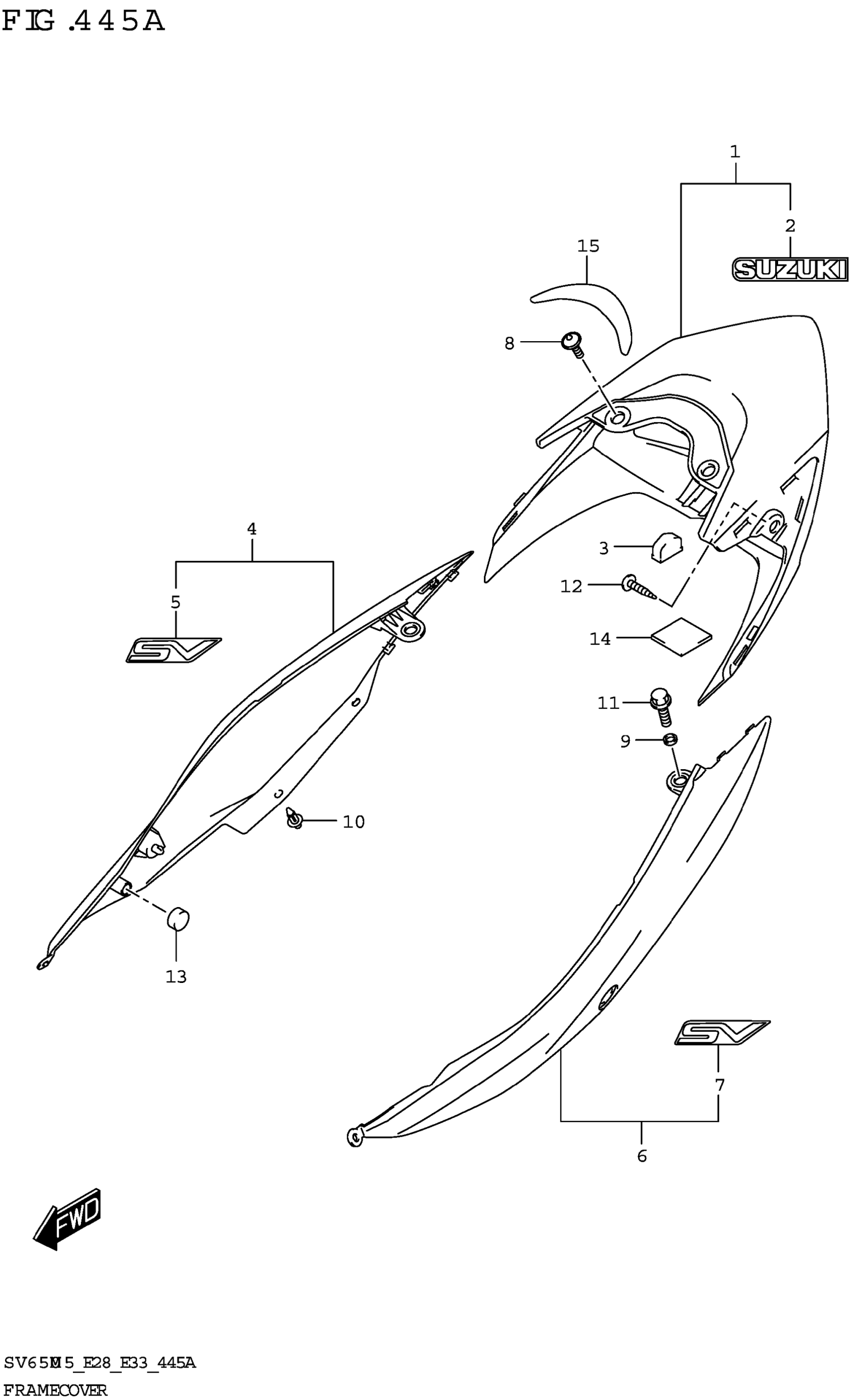

Suzuki SV650AM5(E28) (2025) FRAME COVER (SV650A) Diagram

#

Description
Price

1

COVER,FRAME REAR CTR (BLACK)

47310-18K01-4UX

$134.13

2

.EMBLEM,"SUZUKI" (BLACK,SILVE | )

68171-28H11-CL9

$5.83

3

CUSHION,FRAME COVER CTR

47315-18K00

$12.73

4-1

COVER,FRAME REAR,R (BLACK) | BODY COLOR:YKV,C2L

47410-18K21-4TX

$81.33

4-2

COVER,FRAME REAR,R (BLACK) | BODY COLOR:CGJ

47410-18K21-4UX

$81.33

5-1

.EMBLEM,"SV" | BODY COLOR:YKV,C2L

68111-18K00-C4D

$10.58

5-2

.EMBLEM,"SV" | BODY COLOR:CGJ

68111-18K00-CGJ

$10.58

6-1

COVER,FRAME REAR,L (BLACK) | BODY COLOR:YKV,C2L

47510-18K21-4TX

$81.33

6-2

COVER,FRAME REAR,L (BLACK) | BODY COLOR:CGJ

47510-18K21-4UX

$81.33

7-1

.EMBLEM,"SV" | BODY COLOR:YKV,C2L

68111-18K00-C4D

$10.58

7-2

.EMBLEM,"SV" | BODY COLOR:CGJ

68111-18K00-CGJ

$10.58

8

BOLT (5X13)

09139-05074

$2.61

9

SPACER (8.5X12X2.5)

09180-08052

Unavailable

10

CLIP This part replaces 09409-06314.

09409-06314-5PK

$2.78

11

BOLT (8X12)

01550-0812A

$2.32

12

SCREW

03541-0510A

$1.49

13

CUSHION (14X20X9)

09329-14003

$2.72

14

PROTECTOR (50X50X5) This part replaces 33652-24B00.

33652-20C00

$2.99

15

TAPE,FRAME COVER RR CTR

47312-18K00

$11.53
