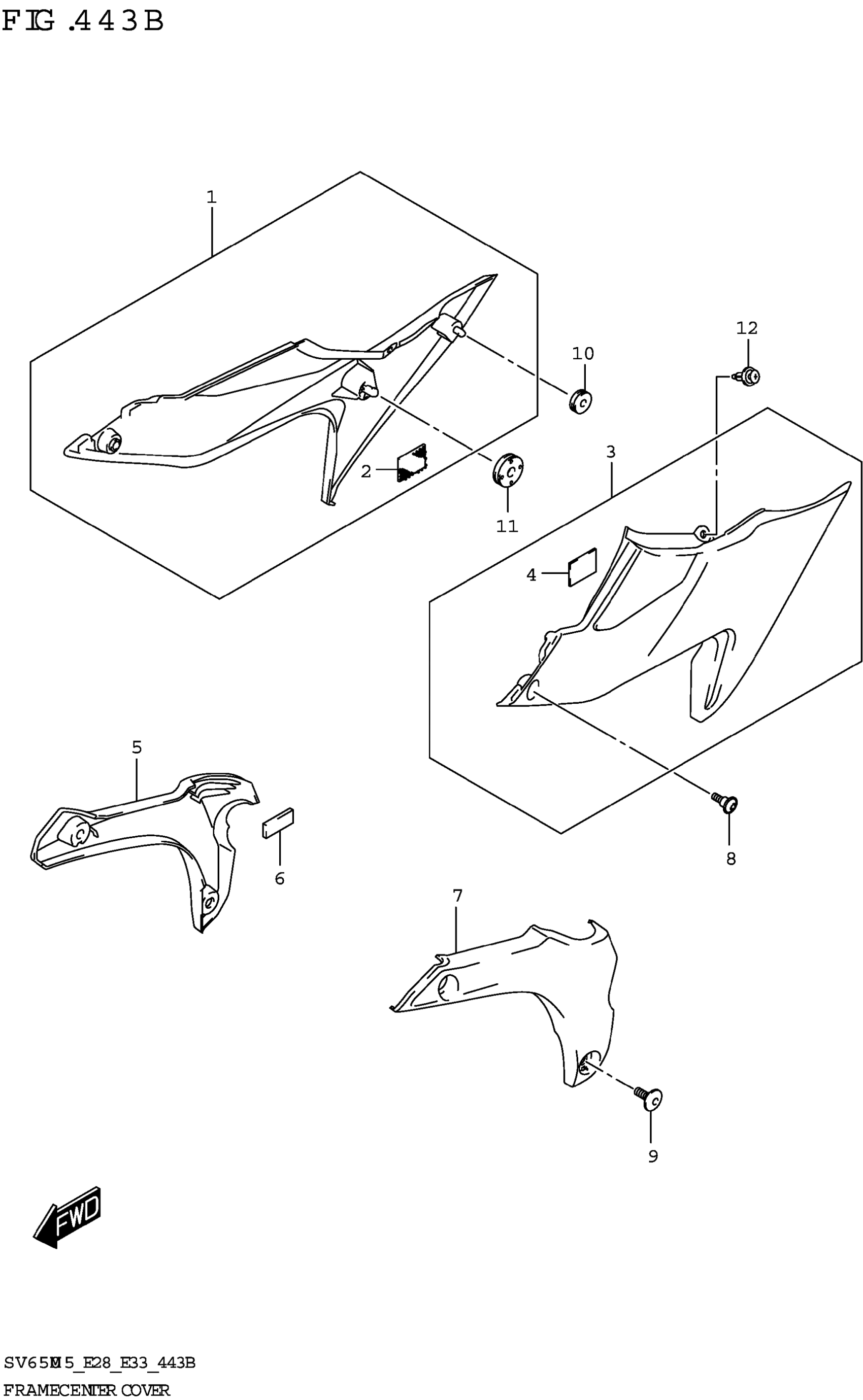

Suzuki SV650AM5(E28) (2025) FRAME CENTER COVER ((SV650XA):(E28)) Diagram

#

Description
Price

1

COVER,FRAME FRONT,R

47110-18KA0

$116.27

2

.FASTENER (33X25)

44572-13G10

$15.40

3

COVER,FRAME FRONT,L

47210-18KA0

$116.27

4

.FASTENER (33X25)

44572-13G10

$15.40

5

COVER,FRAME LOWER,R (BLACK)

47611-18K00-YKV

$132.07

6

CUSHION (18X43X5)

47613-44H00

$6.80

7

COVER,FRAME LOWER,L (BLACK)

47711-18K00-YKV

$132.07

8

SCREW (5X18)

09139-05504

$3.70

9

SCREW (6X16)

47915-31J00

$2.92

10

CUSHION

09320-06026

$4.10

11

CUSHION (8X26X7)

09320-08028

$3.04

12

CLIP This part replaces 09409-06322.

09409-06322-5PK

$3.10
