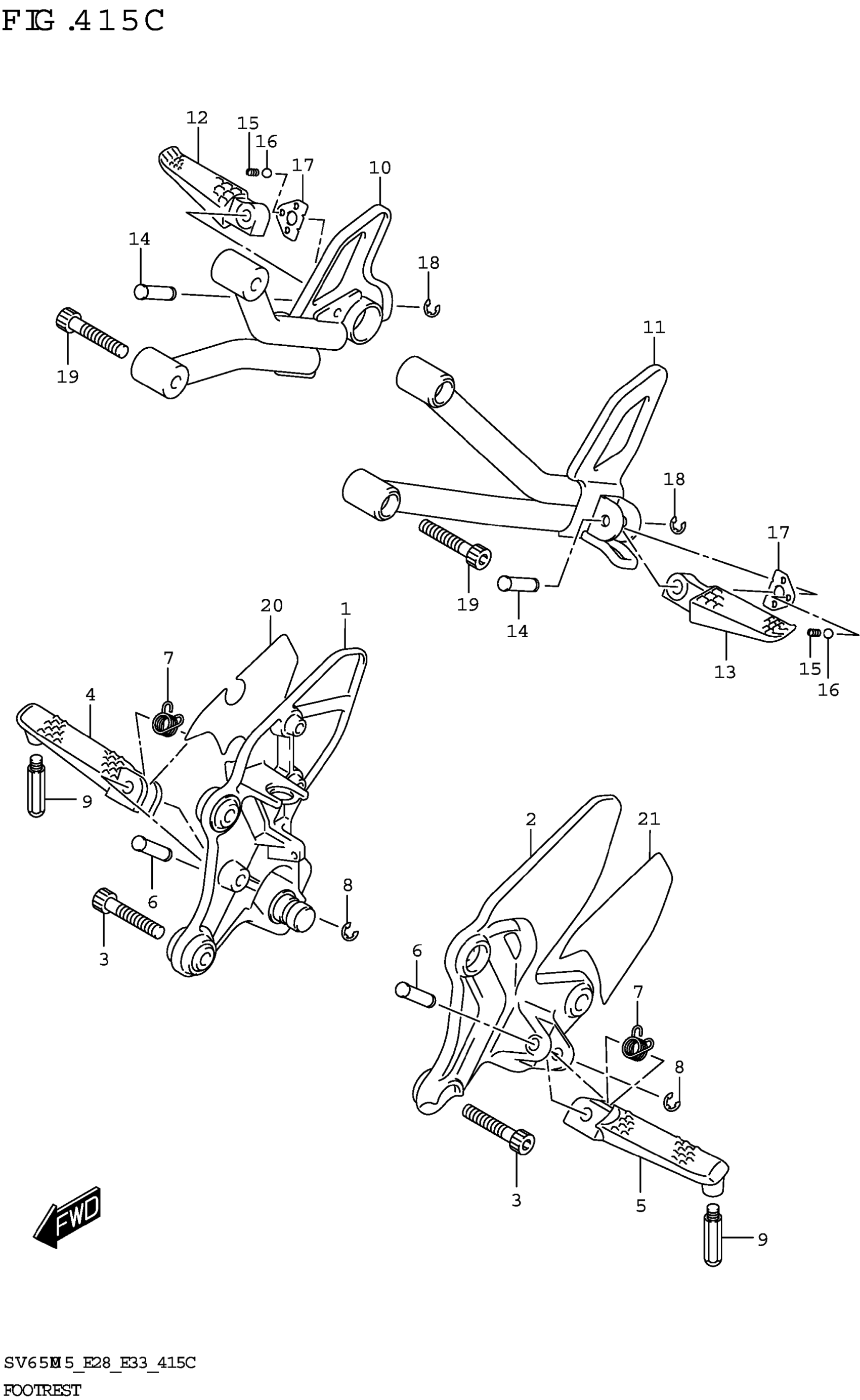

Suzuki SV650AM5(E28) (2025) FOOTREST (SV650XA:(E28)) Diagram

#

Description
Price

1

BRACKET,FOOTREST RH

43510-18K10

$169.95

2

BRACKET,FOOTREST LH

43521-18K10

Unavailable

3

BOLT (8X23)

09106-08186

$3.42

4

BAR,FRONT FOOTREST,R

43516-18K10

$55.23

5

BAR,FRONT FOOTR This part replaces 43526-18K10.

43526-18K30

$37.06

6

PIN

09208-08019

$2.79

7

SPRING

09448-14046

$4.17

8

E-RING

08332-1106A

$1.49

9

BOLT,BANK SENSOR

43576-48B70

$11.32

10

BRACKET,PILLION FTRST RH

43810-18K00

$166.70

11

BRACKET,PILLION FTRST LH

43820-18K00

$148.65

12

BAR,PILLION FOOTREST,R

43611-37H30

$52.42

13

BAR,PILLION FOOTREST,L

43621-37H30

$55.75

14

PIN

09208-08017

$3.37

15

SPRING

09440-05005

$1.58

16

BALL

06111-07004

$1.49

17

PLATE,PILLION FOOTREST

43816-01H10

$7.85

18

E-RING

08332-1106A

$1.49

19

BOLT (8X40)

09106-08074

$3.85

20

TAPE,FR FOOTREST NO.1 RH

43571-18K00

$19.23

21

TAPE,FR FOOTREST NO.1 LH

43572-18K00

$19.23
