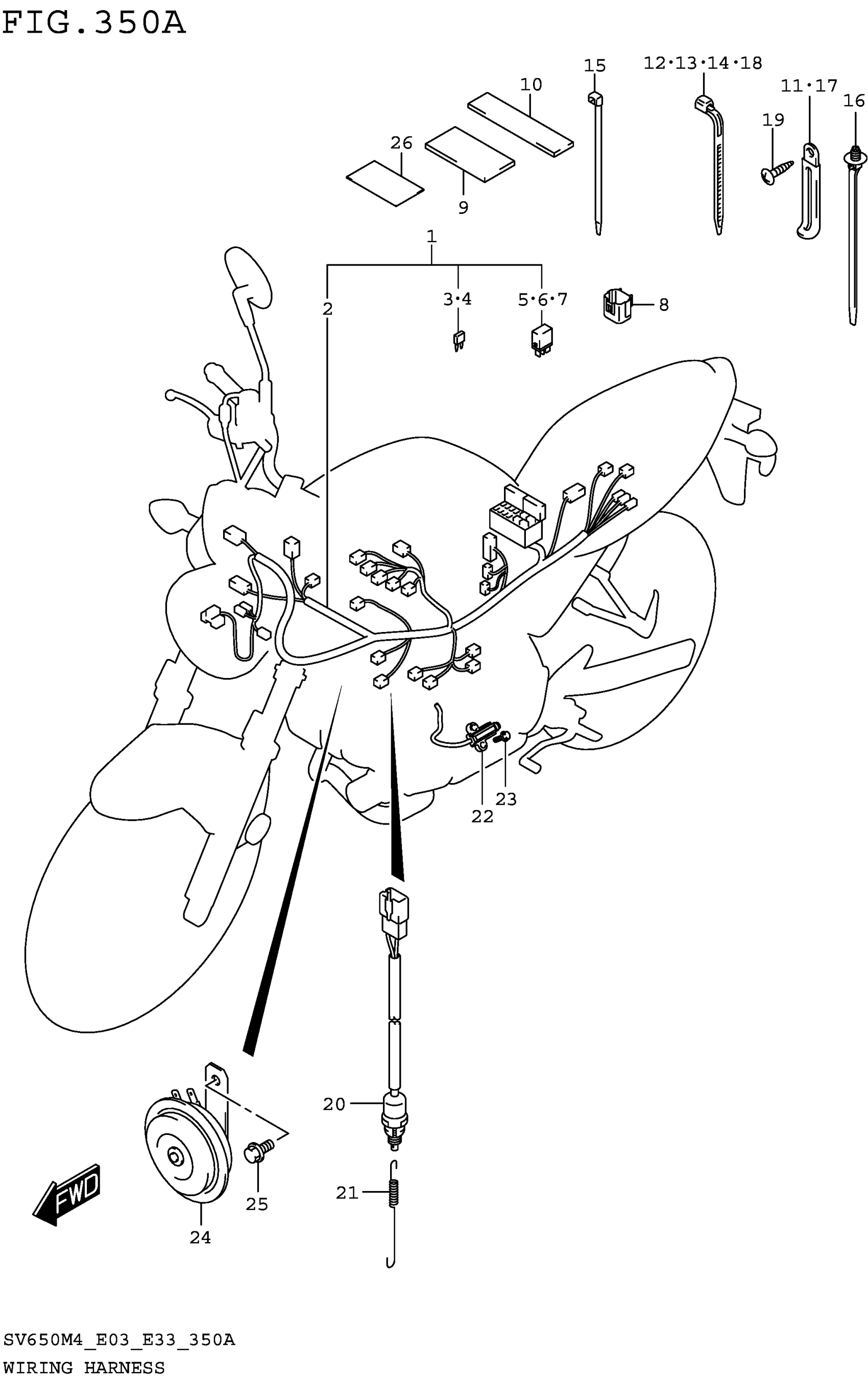

Suzuki SV650AM4(E28) (2024) WIRING HARNESS (SV650M4 E03) Diagram

#

Description
Price

1

HARNESS,WIRING

36610-18K20

$858.32

2

.COVER,SPEEDOMETER COUPLER

36618-35F00

$10.07

3

.FUSE (10A)

09481-10504

$2.06

4

.FUSE (15A)

09481-15504

$2.07

5

.RELAY ASSY | FUEL PUMP

38860-76F01

$34.37

6

.RELAY ASSY | FAN MOTOR

38860-76F01

$34.37

7

.RELAY ASSY | SIDE STAND

38860-76F01

$34.37

8

CAP,TS

36654-06J01

$13.85

9

PROTECTOR (30X60X3)

36920-08D00

Unavailable

10

PROTECTOR (30X70)

94474-22D00

Unavailable

11

CLAMP (L:45)

09404-06429

$1.83

12

CLAMP (L:125)

09407-14403

$2.26

13

CLAMP (L:165)

09407-18402

$2.19

14

CLAMP (L:190)

09407-19401

$3.05

15

CLAMP (L:145)

09407-14407

$3.57

16

CLAMP (L:170)

09407-17403

$4.91

17

CLAMP (L:80)

09404-06030

Unavailable

18

CLAMP (L:235)

09407-25401

$4.66

19

SCREW

03541-0412A

$1.49

20

SWITCH ASSY,STOP LAMP

37740-44H01

$19.90

21

SPRING

09443-06016

$3.30

22

SWITCH ASSY,SIDE STAND This part replaces 37840-25D01.

37840-25D02

$60.37

23

BOLT (6X20)

01550-0620A

$1.97

24

HORN ASSY

38500-18K00

Unavailable

25

BOLT (8X12)

01550-0812A

$2.32

26

TAPE,HARNESS (28X50X0.13)

36611-16G00

$3.03

27

COLOR:KEL=YVB(BLACK)/YSF(BLUE) | FIG.350B(1-G-7 ) WIRING HARNESS (SV650M4 E33) FIG.350C(1-G-8 ) WIRING HARNESS (SV650AM4 E28) FIG.350D(1-G-9 ) WIRING HARNESS (SV650AM4 E33) FIG.350E(1-G-10) WIRING HARNESS (SV650XAM4 E28)

SPECIAL NOTE

Unavailable
