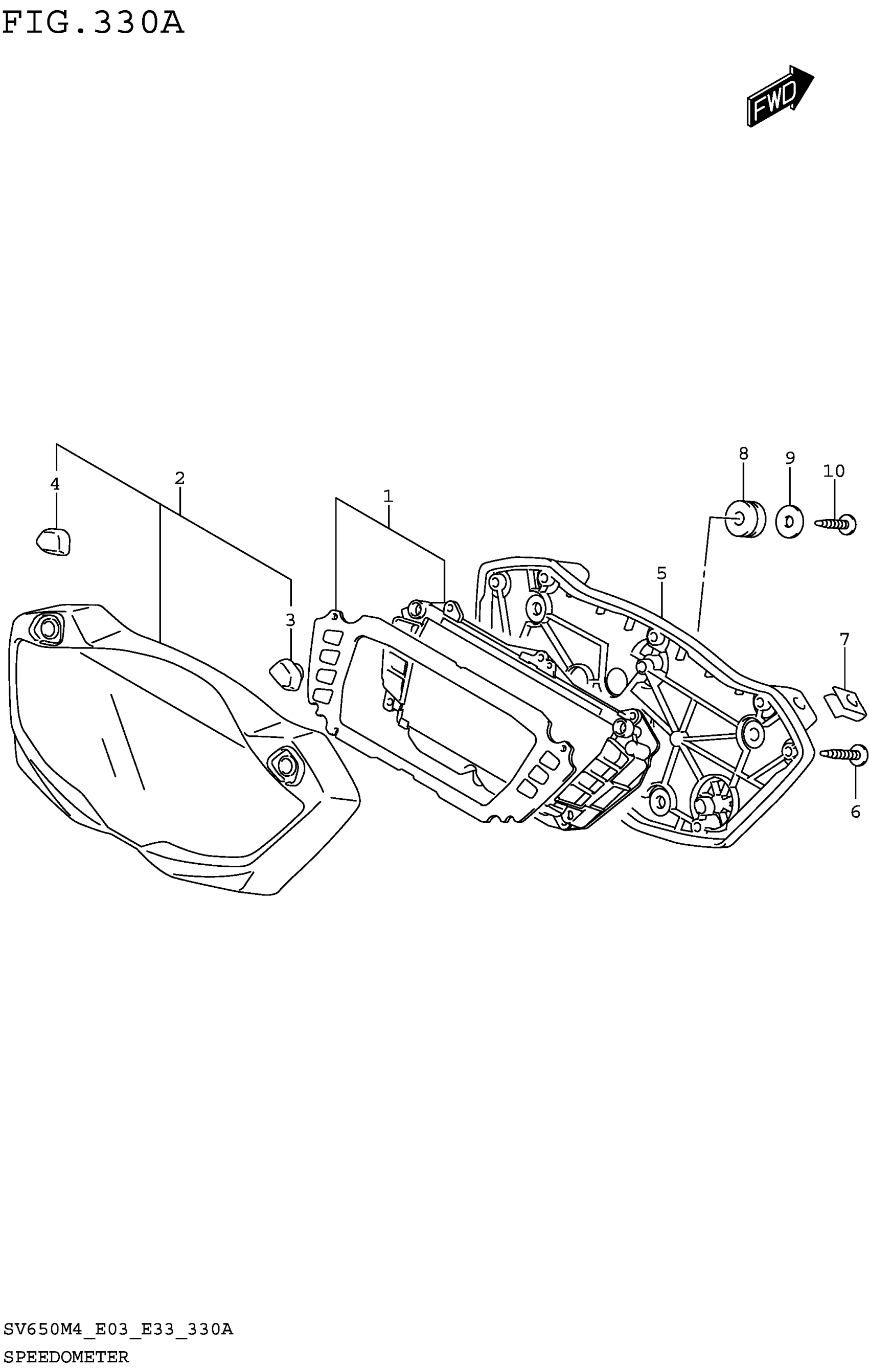

Suzuki SV650AM4(E28) (2024) SPEEDOMETER (SV650M4 E03) Diagram

#

Description

Price

1

SPEEDOMETER

34120-18K21

$715.93

2

CASE ASSY,UPPER

34150-04K01

$124.73

3

.SWITCH RUBBER RH

34124-04K00

$6.91

4

.SWITCH RUBBER LH

34124-04K10

$6.91

5

CASE ASSY,LOWER

34111-04K00

$69.52

6

SCREW

34183-10C00

$2.11

7

NUT (M5)

09148-05052

$3.37

8

CUSHION,SPEEDOMETER

34189-08J01

$3.59

9

WASHER (4.5X16X1.2)

09160-04026

$2.05

10

SCREW

03541-0416A

$1.49

11

COLOR:KEL=YVB(BLACK)/YSF(BLUE) | FIG.330B(1-F-12) SPEEDOMETER (SV650M4 E33) FIG.330C(1-F-13) SPEEDOMETER (SV650AM4 E28) FIG.330D(1-F-14) SPEEDOMETER (SV650AM4 E33) FIG.330E(1-G-2 ) SPEEDOMETER (SV650XAM4 E28)

SPECIAL NOTE

Unavailable
