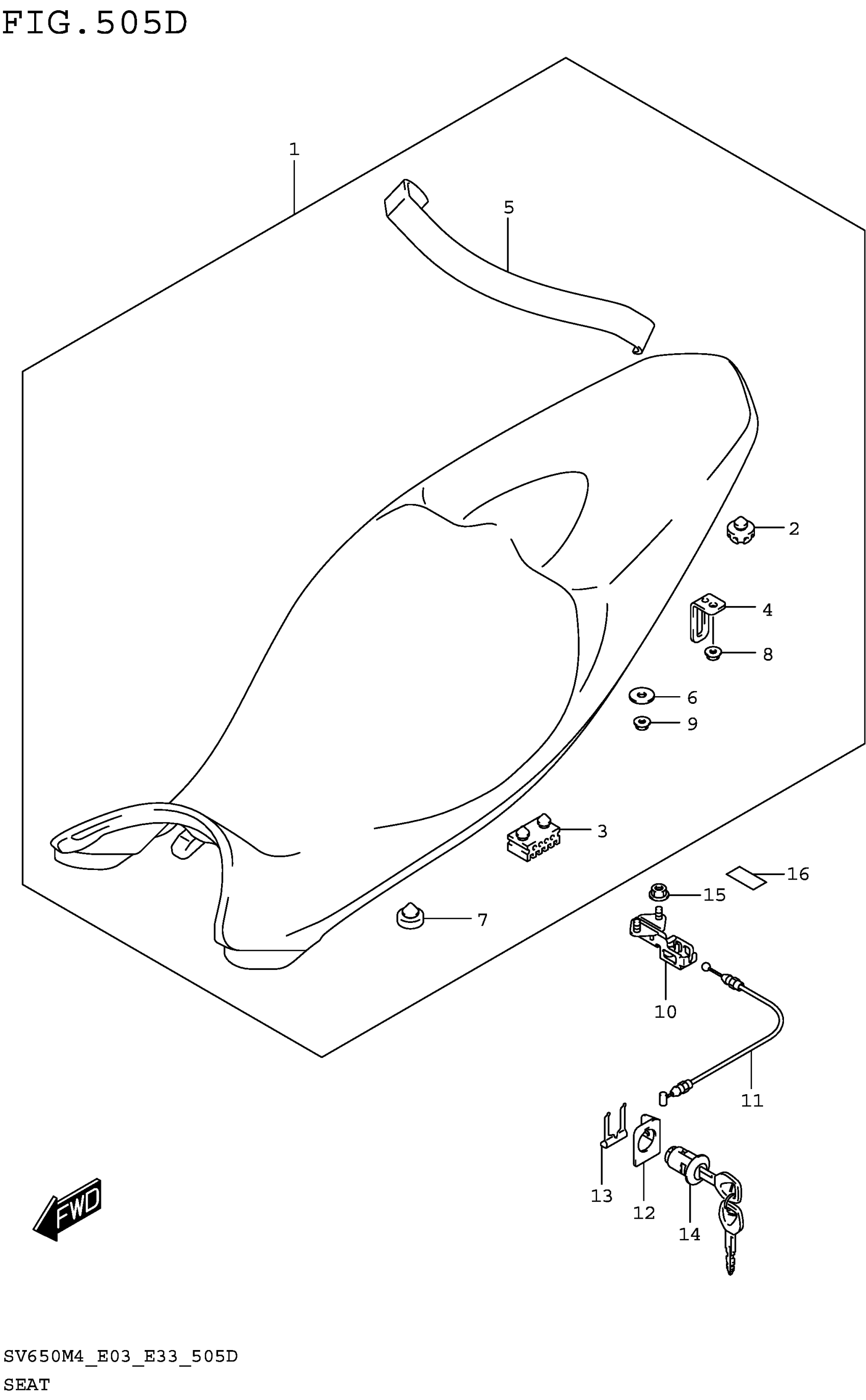

Suzuki SV650AM4(E28) (2024) SEAT (SV650AM4 E33) Diagram

Description

Price

SEAT ASSY (BLACK)

45100-18K03-BBC

$295.05

.CUSHION

45148-20G90

$5.55

.CUSHION,SEAT (40X20X15)

45149-31300

$3.56

.STRIKER,SEAT LOCK

45212-18K00

$9.63

.BAND,SEAT GRIP (BLACK)

45380-18K01-P3H

$20.47

.WASHER (6.5X20X1.6)

09160-06088

$1.65

CUSHION

09321-10012

$2.92

NUT (6X12)

08316-1006A

$2.19

NUT (6X12)

08316-1006A

$2.19

BRACKET,STRIKER SUPPORT

45220-04K20

$31.88

CABLE,SEAT LOCK

45280-18K00

Unavailable

GUIDE,SEAT LOCK CABLE

45288-14F00

$5.36

PLATE,SEAT LOCK ASSY

45289-11F00

$6.20

LOCK SET,SEAT

95700-14810

$107.30

NUT (6X12)

08316-1006A

$2.19

PROTECTOR

94432-19F00

Unavailable
