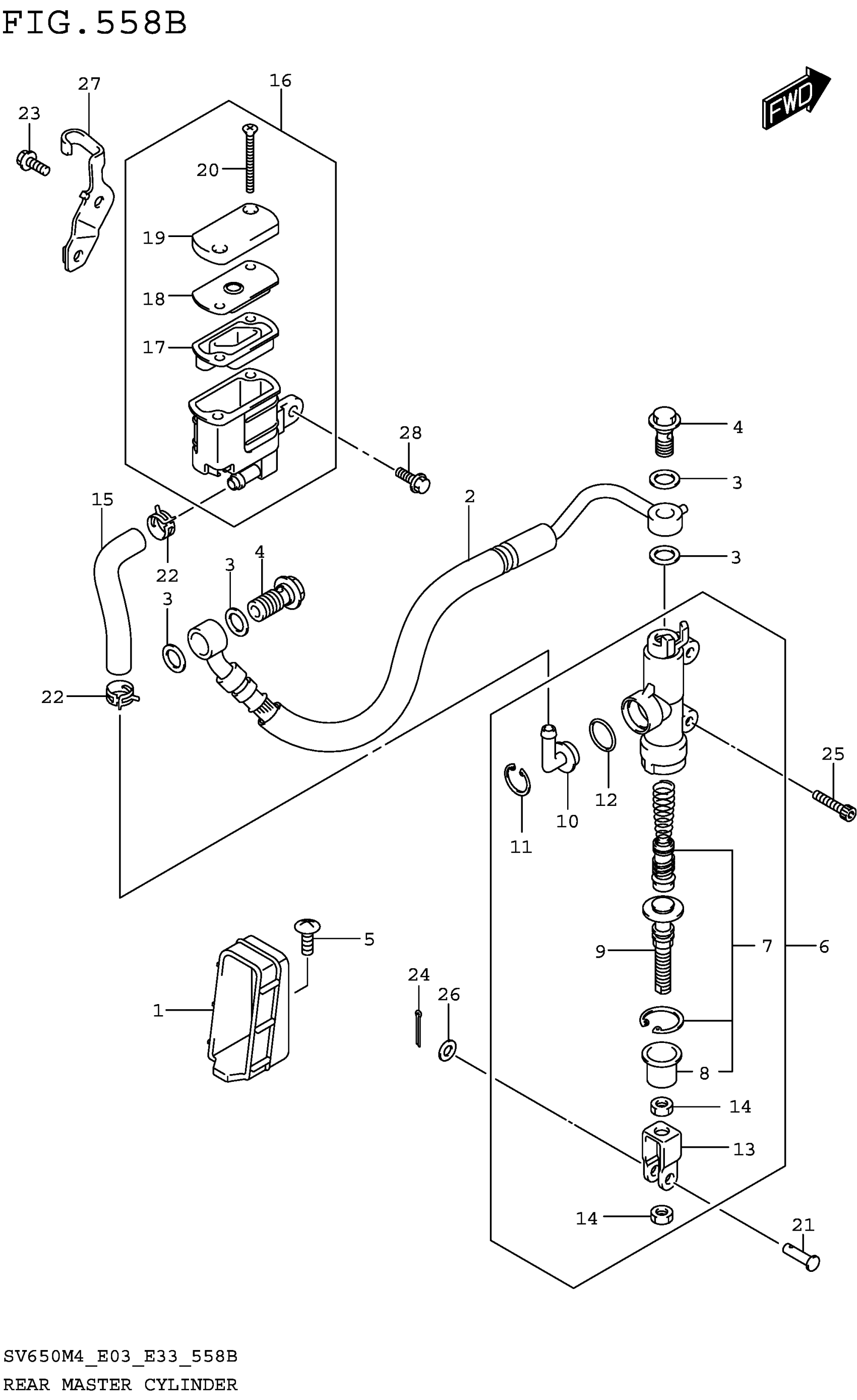

Suzuki SV650AM4(E28) (2024) REAR MASTER CYLINDER (SV650M4 E33) Diagram

#

Description
Price

1

GUIDE,RR BRAKE HOSE

69243-44H00

Unavailable

2

HOSE,REAR BRAKE

69480-18K00

Unavailable

3

WASHER (10X15X1.5)

09161-10009

$1.84

4

UNION (10X1.25X22)

09360-10062

$6.43

5

SCREW

02142-0616A

$1.49

6

CYLINDER ASSY,RR MASTER

69600-44H00

Unavailable

7

.PISTON/CUP SET

69600-34821

$26.60

8

.BOOT

69691-04A00

$5.17

9

.ROD,PUSH

69670-48B00

$26.97

10

.CONNECTOR

69672-00B20

$7.01

11

.CIRCLIP

69674-00B20

$3.97

12

.O-RING

69686-34200

$2.93

13

.YOKE

69692-44H00

$16.87

14

.NUT

69693-05A00

$1.96

15

HOSE,REAR RESERVOIR TANK

69731-18K10

$13.25

16

TANK ASSY,RESERVOIR

69740-18K00

$28.10

17

.DIAPHRAGM

69667-01H00

$6.30

18

.PLATE,DIAPHRAGM

69668-01H00

$5.98

19

.CAP

69669-18K00

$14.37

20

.SCREW

69689-01H00

$4.45

21

PIN (6X18.2) This part replaces 09200-06037.

09200-06068

$4.11

22

CLIP (ID:12)

09401-12404

$2.34

23

BOLT (6X12)

09103-06525

$1.49

24

PIN

04111-2015A

$1.49

25

BOLT (6X25)

07130-0625A

$2.62

26

WASHER

08322-0106A

$1.84

27

BRACKET,RR RESERVOIR TANK

69750-18K10

$13.63

28

BOLT (6X16)

09103-06526

$1.71
