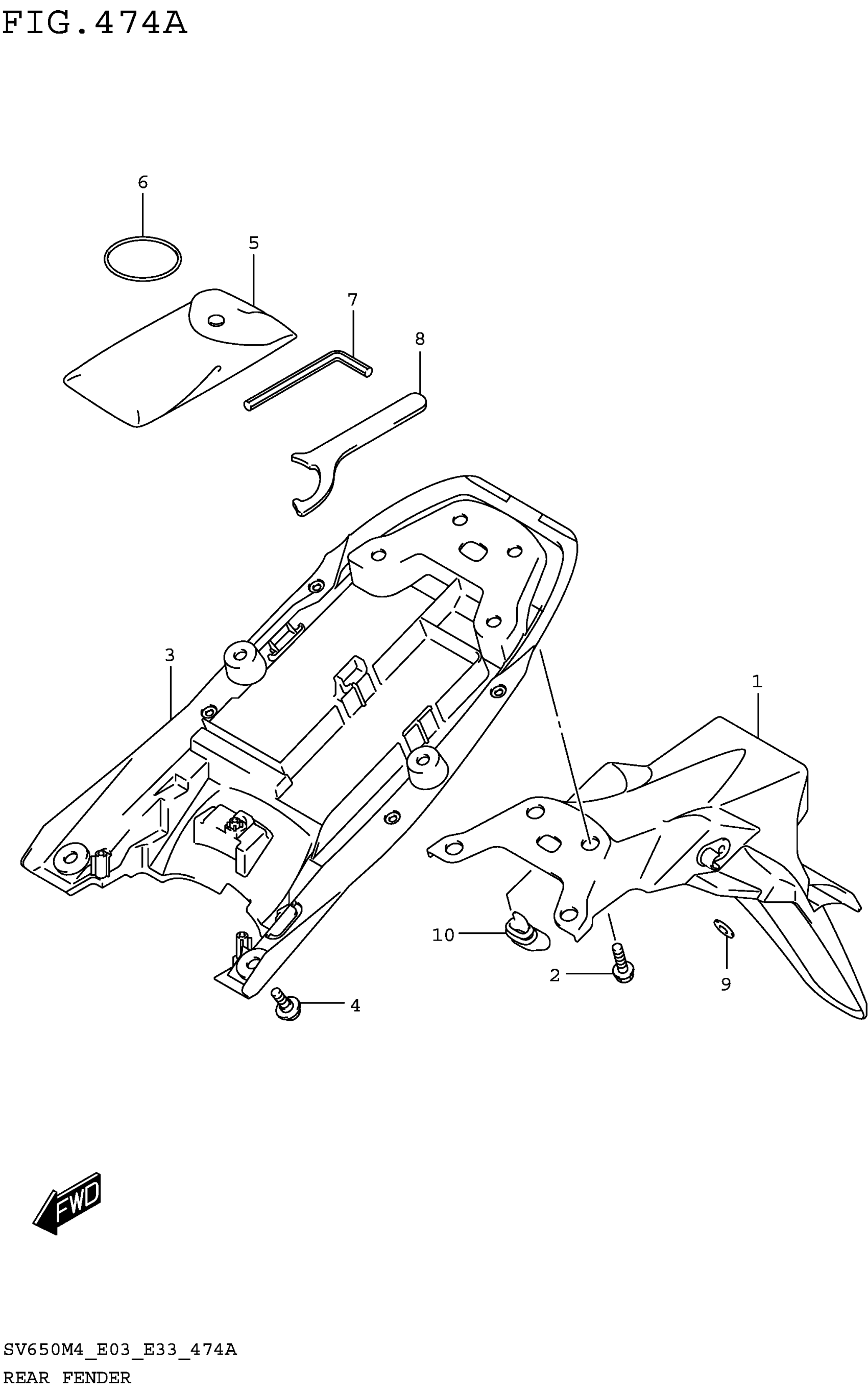

Suzuki SV650AM4(E28) (2024) REAR FENDER Diagram

#

Description
Price

1

FENDER,REAR REAR

63112-18K00

$63.90

2

BOLT,REAR FENDER REAR

63160-13K00

$4.21

3

FENDER,REAR FRONT

63111-18K00

$51.58

4

BOLT (6X12)

09111-06107

$2.60

5

TOOL ASSY

09800-21101

$24.68

6

O-RING (D:3.5,ID:56.5)

09280-57003

Unavailable

7

SPANNER,HEXAGON (5)

09816-00059

$8.45

8

CLAMP,WRENCH

09822-00003

$10.34

9

WASHER (6.5X20X1.2)

09160-06077

$1.91

10

CUSHION,REAR FENDER

63118-18K01

$7.33
