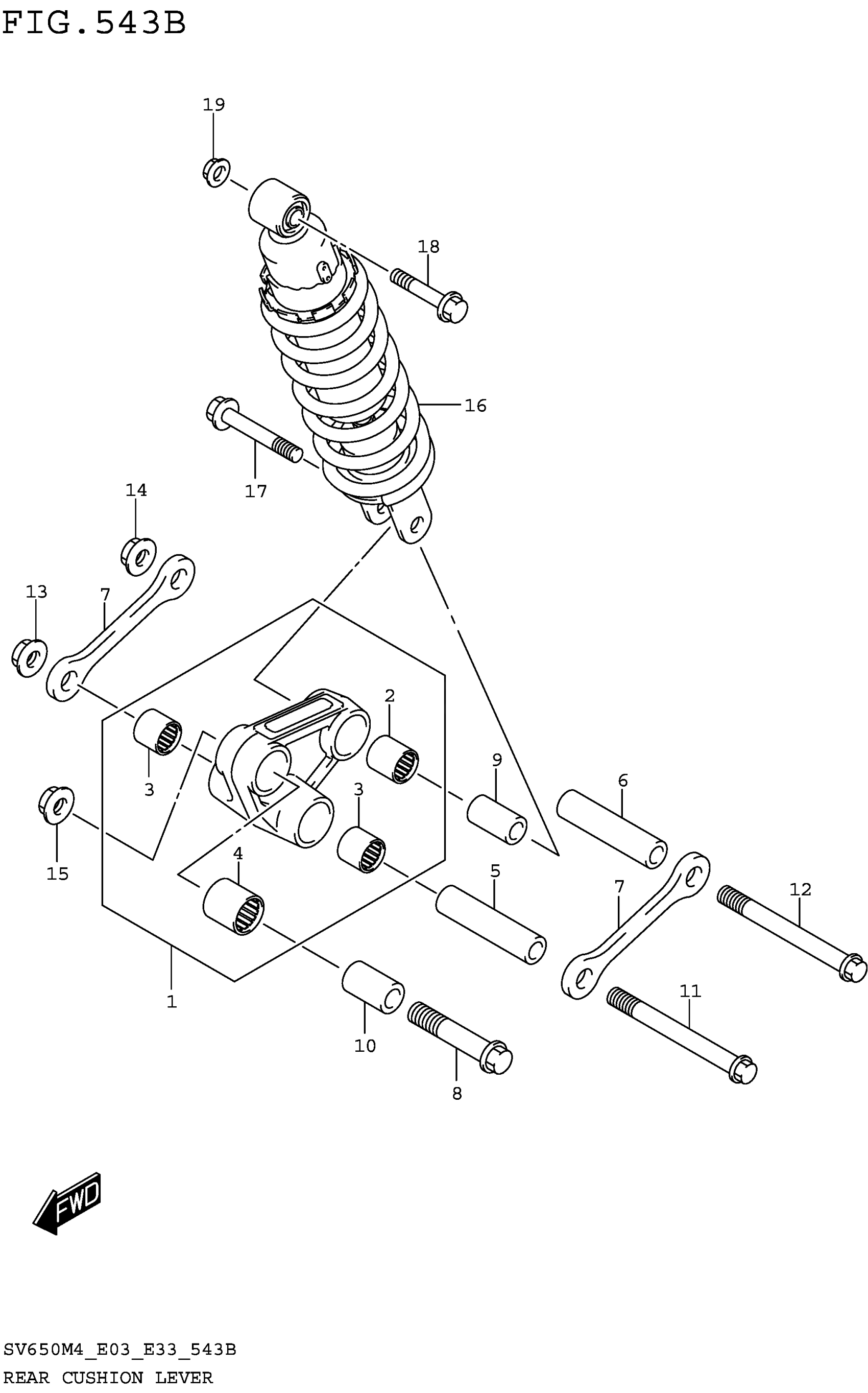

Suzuki SV650AM4(E28) (2024) REAR CUSHION LEVER (SV650M4 E33) Diagram

#

Description
Price

1

LEVER SET,RR CUSHION

62600-44882

$381.70

2

.BEARING (17X24X26)

09263-17057

$20.85

3

.BEARING (17X24X25)

09263-17053

$21.66

4

.BEARING (20X27X30)

09263-20121

$17.82

5

SPACER,RR CUSHION LEVER CTR ( | (12X17X68)

62626-17G00

$25.33

6

SPACER,RR CUSHION LEVER CTR ( | (12X17X68)

62626-17G00

$25.33

7

ROD,RR CUSHION LEVER

62641-44H00

$33.58

8

BOLT, LOWER | (12X60) This part replaces 62668-30B00.

62668-42A02

$10.67

9

SPACER,RR CUSHION LEVER (10X1 | (10X17X30)

62684-40A10

$12.15

10

SPACER,RR CUSHION LEVER FR (1 | (12X20X32)

62684-12C00

$15.61

11

BOLT (12X96)

09103-12034

$10.30

12

BOLT (12X96)

09103-12034

$10.30

13

NUT

09159-12056

$7.37

14

NUT

09159-12056

$7.37

15

NUT

09159-12056

$7.37

16

ABSORBER ASSY,REAR SHOCK (BLA | (BLACK)

62100-44HB1-019

$510.80

17

BOLT (10X48)

09103-10126

$4.50

18

BOLT (10X52)

09103-10213

$5.77

19

NUT (M10)

09159-10115

$3.55
